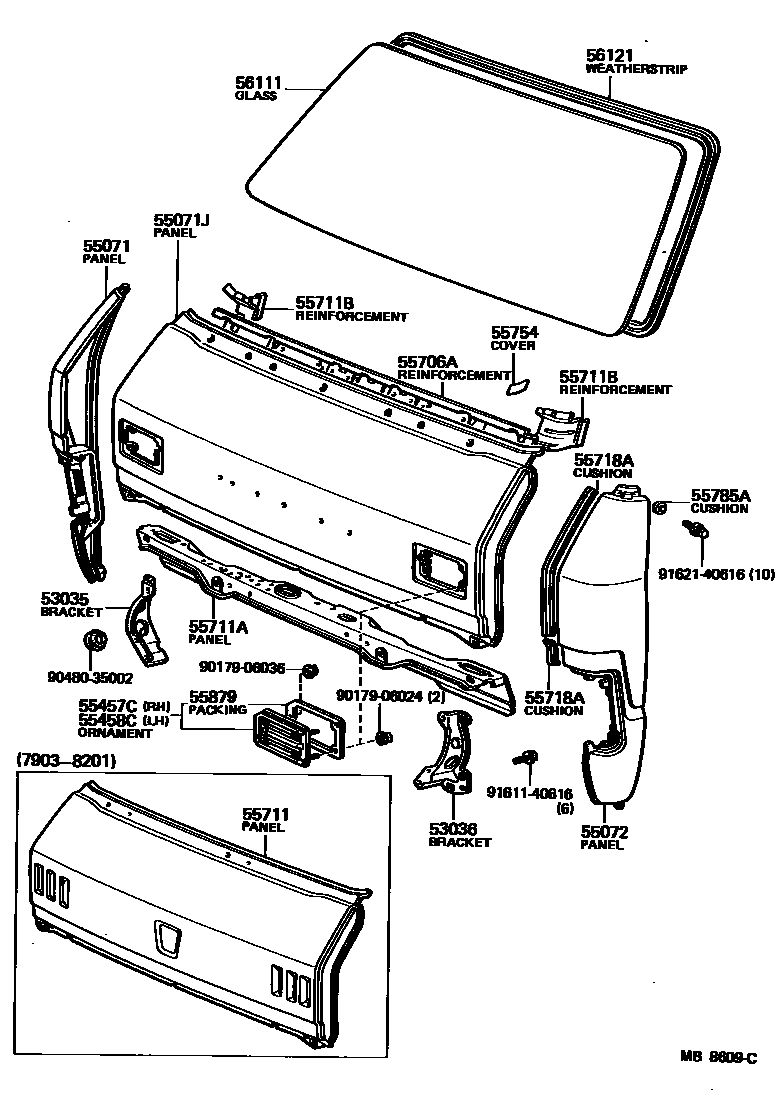

FRONT PANEL & WINDSHIELD GLASS

53035BRACKET SUB-ASSY, HEADLAMP, OUTER RH

main57335-95010iJY30,LY20,30,RY20,3#197903-198201

main57335-95011iJY30,LY3#,RY20,3#198201-198507

53036BRACKET SUB-ASSY, HEADLAMP, OUTER LH

main57336-95010iJY30,LY20,30,RY20,3#197903-198201

main57336-95011iJY30,LY3#,RY20,3#198201-198507

55071PANEL SUB-ASSY, FRONT SIDE, RH

main53801-95013iJY30,LY20,30,RY20,3#197903-198201

sub53801-95015

main53801-95014iJY30,LY3#,RY20,3#198201-198507

55071JPANEL SUB-ASSY, FRONT, A

main55071-95010iJY30,LY3#,RY20,3#..RHD198201-198507

main55071-95011iJY30,RY20,3#..LHD198201-198507

55072PANEL SUB-ASSY, FRONT SIDE, LH

main53802-95013iJY30,LY20,30,RY20,3#197903-198201

sub53802-95015

main53802-95014iJY30,LY3#,RY20,3#198201-198507

55457CORNAMENT, FRONT VENTILATOR, RH

main55045-95010iJY30,LY3#,RY20,3#198201-198507

55458CORNAMENT, FRONT VENTILATOR, LH

main55046-95010iJY30,LY3#,RY20,3#198201-198507

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95010iJY30,LY3#,RY20,3#..RHD198201-198507

main55706-95011iJY30,RY20,3#..LHD198201-198507

55711PANEL, COWL TOP, OUTER

main55701-95014iJY30,LY20,30,RY20,3#..RHD197903-198201

sub55701-95019

main55701-95015iJY30,RY20,3#..LHD197903-198201

sub55701-95020

55711APANEL, FRONT, LOWER

main55101-95010iLY20,30,RY20,3#..RHD197903-198201

sub55101-95027

main55101-95011iJY30..RHD197903-198201

sub55101-95028

main55101-95012iRY20,3#..LHD197903-198201

sub55101-95029

main55101-95015iJY30..LHD197903-198201

sub55101-95031

main55101-95021iLY3#,RY20,3#..RHD198201-198507

main55101-95022iJY30..T1198201-198308

main55101-95023iRY20,3#..LHD198201-198507

main55101-95024iJY30..T3198201-198308

55711BREINFORCEMENT SUB-ASSY, FRONT PANEL

main55725-95010iJY30,LY20,3#,RY20,3#197903-198507

RH

main55726-95010iJY30,LY3#,RY20,3#..GEN197903-198507

LH

main55726-95011iLY3#,RY31..ARL198201-198507

LH

55718ACUSHION, FRONT SIDE PANEL

main55719-95011iJY30,LY3#,RY20,3#198208-198507

UPR,RH

main55719-95011iJY30,LY20,30,RY20,3#197903-198208

UPR

main55784-95010iJY30,LY20,30,RY20,3#197903-198208

LWR

main55785-95010iJY30,LY3#,RY20,3#198208-198507

UPR,LH

55754COVER WINDSHIELD

main55753-95010iJY30,LY20,3#,RY20,3#198109-198507

RH

main55754-95011iJY30,LY20,3#,RY20,3#198109-198507

LH

55785ACUSHION, FRONT SIDE PANEL, NO.2

main55789-95011iJY30,LY20,3#,RY20,3#197903-198507

55879PACKING, FRONT VENTILATOR

main55879-95010iJY30,LY3#,RY20,3#198201-198507

56111GLASS, WINDSHIELD

main56111-95016iJY30,LY20,3#,RY20,3#197903-198507

*ZT,T=5.0,*TEM,T=5.0

sub56111-95017

main56111-95017iJY30,LY20,3#,RY20,3#197903-198507

*LAM,T=5.7

56121WEATHERSTRIP, WINDSHIELD

main56121-95015iJY30,LY20,3#,RY20,3#197903-198507

9017906024

main90179-06024

9017906036

main90179-06036

9048035002

main90480-35002

9161140616

main91611-40616

9162140616

main91621-40616

22 parts on this diagram · 1 diagram in section
