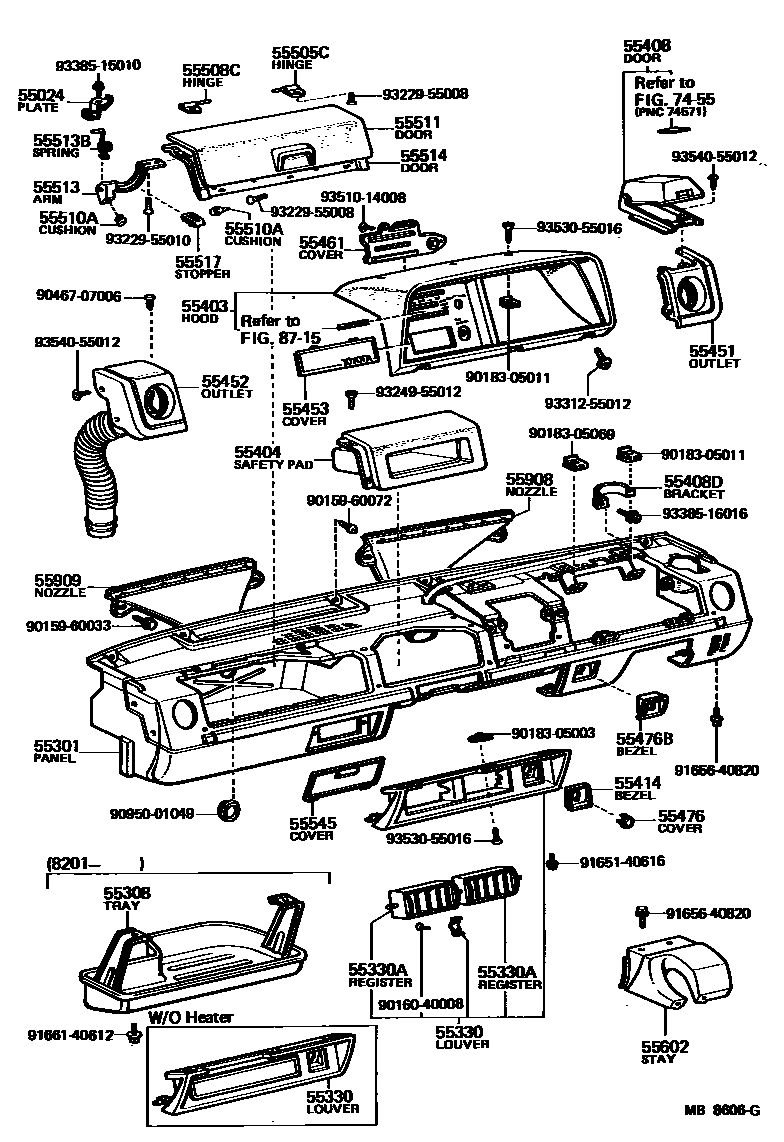

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55024PLATE SUB-ASSY, TORSION SPRING

main55024-95012iJY30,LY20,3#,RY20,3#197903-198507

55301PANEL SUB-ASSY, INSTRUMENT

main55301-95021iJY30,LY20,30,RY20,3#..RHD197903-198201

main55301-95022iJY30,RY20,3#..LHD197903-198201

main55301-95024iJY30,RY20,3#..LHD198201-198507

main55301-95025iJY30,LY3#,RY20,3#..RHD198201-198507

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main74650-95020iJY30,LY3#,RY20,3#..RHD198201-198507

55330LOUVER ASSY, CENTER VENTILATOR

main55460-95012iJY30,LY20,30,RY20,3#197903-198201

sub55460-95014

main55460-95013iJY30,LY20,30,RY20,3#..GEN197903-198201

W/O HEATER

sub55460-95015

main55460-95014iJY30,LY3#,RY20,3#198201-198507

main55460-95015iJY30,LY3#,RY20,3#198201-198507

W/O HEATER

55330AREGISTER, CENTER VENTILATOR, LOUVER

main55065-20030iJY30,LY20,3#,RY20,3#197903-198507

55403HOOD SUB-ASSY, METER

main55421-95010iJY30,LY20,30,RY20,3#..RHD197903-198201

sub55421-95012

main55421-95011iJY30,RY20,3#..LHD197903-198201

sub55421-95013

main55421-95012iJY30,LY3#,RY20,3#..RHD198201-198507

main55421-95013iJY30,RY20,3#..LHD198201-198507

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55410-95054iJY30,LY20,30,RY20,3#197903-198201

sub55410-95055

main55410-95055iJY30,LY3#,RY20,3#198201-198507

55408DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE

main55402-95010iJY30,LY20,30,RY20,3#..RHD197903-198201

sub55402-95012

main55402-95011iJY30,RY20,3#..LHD197903-198201

sub55402-95013

main55402-95012iJY30,LY3#,RY20,3#..RHD198201-198507

main55402-95013iJY30,RY20,3#..LHD198201-198507

55408DBRACKET SUB-ASSY, RESERVOIR

main47202-95010iJY30,LY20,3#,RY20,3#197903-198507

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95011iJY30,LY20,3#,RY20,3#197903-198507

55451OUTLET, AIR OUTER, RH

main55408-95011iJY30,LY20,30,RY20,3#..RHD197903-198201

main55408-95012iJY30,RY20,3#..LHD197903-198201

main55408-95014iJY30,RY20,3#..LHD198201-198507

main55408-95015iJY30,LY3#,RY20,3#..RHD198201-198507

55452OUTLET, AIR OUTER, LH

main55409-95010iJY30,LY20,30,RY20,3#..RHD197903-198201

main55409-95011iJY30,RY20,3#..LHD197903-198201

main55409-95013iJY30,RY20,3#..LHD198201-198507

main55409-95014iJY30,LY3#,RY20,3#..RHD198201-198507

55453COVER, RADIO TUNER OPENING

main55463-20041iJY30,LY20,3#,RY20,3#..ST..CBU197903-198507

55461COVER, HEATER CONTROL HOLE

main55465-95010iJY30,LY20,3#,RY20,3#..RHD197903-198507

main55465-95011iJY30,RY20,3#..LHD197903-198507

55476COVER, CIGARETTE LIGHTER HOLE

main55476-22010-06iJY30,LY20,3#,RY20,3#197903-198507

BROWN,BROWN

sub55476-22010

55476BBEZEL, CHOKE ROD

main55476-95010iRY20,3#..RHD197903-198201

THROTTLE ROD

sub55476-95011

main55476-95011iRY20,3#..RHD198201-198507

THROTTLE ROD

55505CHINGE SUB-ASSY, GLOVE COMPARTMENT DOOR MALE, RH

main55505-95012iJY30,LY20,3#,RY20,3#197903-198507

55508CHINGE SUB-ASSY, GLOVE COMPARTMENT DOOR MALE, LH

main55508-95010iJY30,LY20,3#,RY20,3#197903-198507

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main55536-95011iJY30,LY20,3#,RY20,3#197903-198507

DOOR

main90541-05005iJY30,LY20,3#,RY20,3#197903-198507

ARM

55511DOOR, GLOVE COMPARTMENT

main55501-95011iJY30,LY20,30,RY20,3#..RHD197903-198201

sub55501-95013

main55501-95012iJY30,RY20,3#..LHD197903-198201

sub55501-95014

main55501-95013iJY30,LY3#,RY20,3#..RHD198201-198507

main55501-95014iJY30,RY20,3#..LHD198201-198507

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55513-95010iJY30,LY20,3#,RY20,3#..RHD197903-198507

main55513-95011iJY30,RY20,3#..LHD197903-198507

55513BSPRING, TORSION(FOR GLOVE COMPARTMENT DOOR CHECK ARM)

main90508-23019iJY30,LY20,3#,RY20,3#..RHD197903-198507

main90508-23020iJY30,RY20,3#..LHD197903-198507

55514DOOR, GLOVE COMPARTMENT, INNER

main55512-95012iJY30,LY20,30,RY20,3#..RHD197903-198201

sub55512-95014

main55512-95013iJY30,RY20,3#..LHD197903-198201

sub55512-95015

main55512-95014iJY30,LY3#,RY20,3#..RHD198201-198507

main55512-95015iJY30,RY20,3#..LHD198201-198507

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-95010iJY30,LY20,30,RY20,3#197903-198201

main55517-95011iJY30,LY3#,RY20,3#198201-198507

sub55517-25010

55545COVER, FUSE BOX OPENING

main55806-95010iJY30,LY20,30,RY20,3#197903-198201

main55806-95011iJY30,LY3#,RY20,3#198201-198507

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55602-95027iJY30,LY20,30,RY20,3#..RHD197903-198201

main55602-95029iJY30,RY20,3#..LHD197903-198201

sub55602-95032

main55602-95030iJY30,LY3#,RY20,3#..RHD198201-198507

main55602-95032iJY30,RY20,3#..LHD198201-198507

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-95010iJY30,LY20,3#,RY20,3#197903-198507

W/HEATER

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55960-95010iJY30,LY20,3#,RY20,3#..RHD197903-198507

W/HEATER

main55960-95011iJY30,RY20,3#..LHD197903-198507

7455

8715

9015960033

main90159-60033

9015960072

main90159-60072

9016040008

main90160-40008

9018305003

main90183-05003

9018305011

main90183-05011

9018305069

main90183-05069

9046707006

main90467-07006

9095001049

main90950-01049

9165140616

main91651-40616

9165640820

main91656-40820

9166140612

main91661-40612

9322955008

main93229-55008

9322955010

main93229-55010

9324955012

main93249-55012

9331255012

main93312-55012

9338515010

main93385-15010

9338516016

main93385-16016

9351014008

main93510-14008

9353055016

main93530-55016

9354055012

main93540-55012

50 parts on this diagram · 2 diagrams in section
