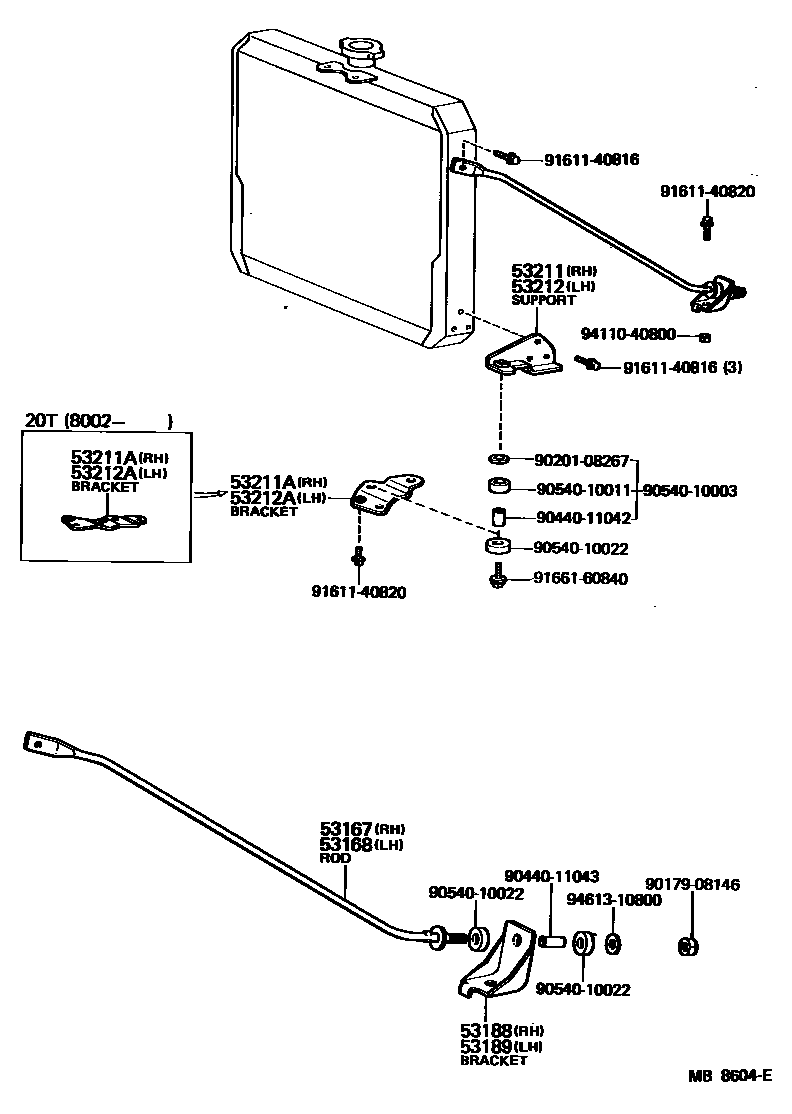

RADIATOR SUPPORT & WIND GUIDE

53167ROD, RADIATOR BRACE, RH

main53167-25060iLY20,30,RY20,3#..125,15T197903-198507

main53167-25070iJY30,RY31..20T197903-198507

main53167-25110iLY31198308-198507

53168ROD, RADIATOR BRACE, LH

main53167-25070iJY30,RY31..20T198008-198507

main53169-25030iLY20,30,RY20,3#..125,15T197903-198507

main53169-25040iJY30,RY31..20T197903-198008

sub53167-25070

main53169-25080iLY31198308-198507

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-26010iJY30,LY20,3#,RY20,3#197903-198507

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-26010iJY30,LY20,3#,RY20,3#197903-198507

53211SUPPORT, RADIATOR, RH

main53211-25010iLY20,30,RY20,3#..125,15T197903-198507

main53211-25020iJY30,RY31..20T197903-198507

main53211-25050iLY31198308-198507

53211ABRACKET, RADIATOR SUPPORT, RH

main51411-25010iLY20,3#,RY20,3#..125,15T197903-198507

main51411-25020iJY30,RY31..20T197903-198002

main51411-25021iJY30,RY31..20T198002-198507

53212SUPPORT, RADIATOR, LH

main53212-25010iLY20,30,RY20,3#..125,15T197903-198507

main53212-25020iJY30,RY31..20T197903-198507

main53212-25050iLY31198308-198507

53212ABRACKET, RADIATOR SUPPORT, LH

main51412-25010iLY20,3#,RY20,3#..125,15T197903-198507

main51412-25020iJY30,RY31..20T197903-198002

main51412-25021iJY30,RY31..20T198002-198507

9017908146

main90179-08146

9020108267

main90201-08267

9044011042

main90440-11042

9044011043

main90440-11043

9054010003

main90540-10003

9054010011

main90540-10011

9054010022

main90540-10022

9161140816

main91611-40816

9161140820

main91611-40820

9166160840

main91661-60840

9411040800

main94110-40800

9461310800

main94613-10800

20 parts on this diagram · 1 diagram in section
