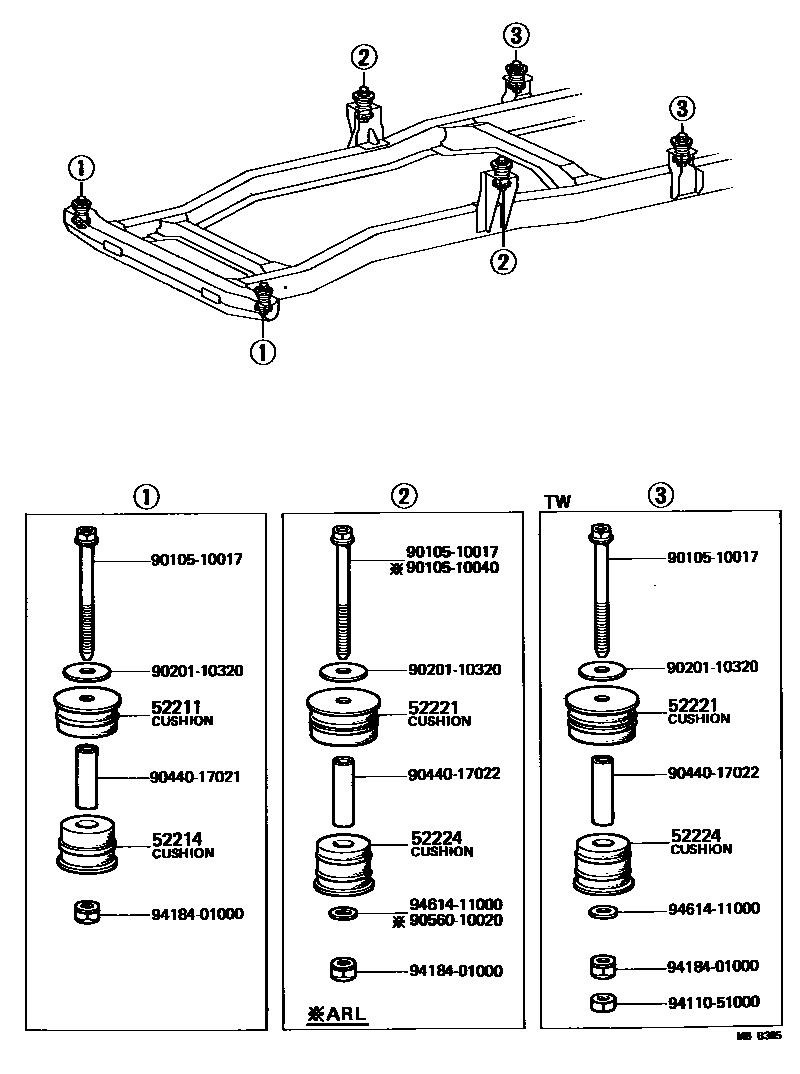

CAB MOUNTING & BODY MOUNTING

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52201-25020iJY30,LY20,3#,RY20,3#197903-198507

52214CUSHION, BODY MOUNT, NO.1 LOWER

main52202-25020iJY30,LY20,3#,RY20,3#197903-198507

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52203-25030iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

52224CUSHION, BODY MOUNT, NO.2 LOWER

main52204-25020iJY30,LY20,3#,RY20,3#..15T,20T197903-198507

9010510017

main90105-10017

9010510040

main90105-10040

9020110320

main90201-10320

9044017021

main90440-17021

9044017022

main90440-17022

9056010020

main90560-10020

9411051000

main94110-51000

9418401000

main94184-01000

9461411000

main94614-11000

13 parts on this diagram · 1 diagram in section
