SUSPENSION CROSSMEMBER & UNDER COVER

51171REINFORCEMENT, SIDE RAIL REAR HOOK

main51171-36050iJY30,RY31..20T197903-198507

51441COVER, ENGINE UNDER, NO.1

main51441-25130iRY20,3#..125,15T197903-198507

RH

main51441-25140iJY30,RY31..20T197903-198507

RH

main51442-25010iLY20,3#197903-198507

LH,RR

main51442-25030iLY20,30197903-198308

LH,FR

main51442-25030iRY20,3#..125,15T197903-198308

LH

main51442-25040iJY30,RY31..20T197903-198507

LH

main51442-25050iRY20,30198308-198507

LH

main51442-25050iRY20,30198308-198507

LH,FR

51447GUIDE, ENGINE UNDER COVER AIR

main51447-25040iLY20,30,RY31..15T197903-198308

main51447-25050iJY30,RY31..20T197903-198507

main51447-25060iLY31198308-198507

51961HOOK, NO.1

main51961-36010iJY30,LY20,3#,RY20,3#197903-198507

RR

main51961-36020iJY30,LY20,3#,RY20,3#197903-198507

FR

9017908146

main90179-08146

9111271450

main91112-71450

9111271455

main91112-71455

9165140820

main91651-40820

9165141025

main91651-41025

9165540820

main91655-40820

9165540825

main91655-40825

9411040800

main94110-40800

9411041000

main94110-41000

9411551400

main94115-51400

9451201400

main94512-01400

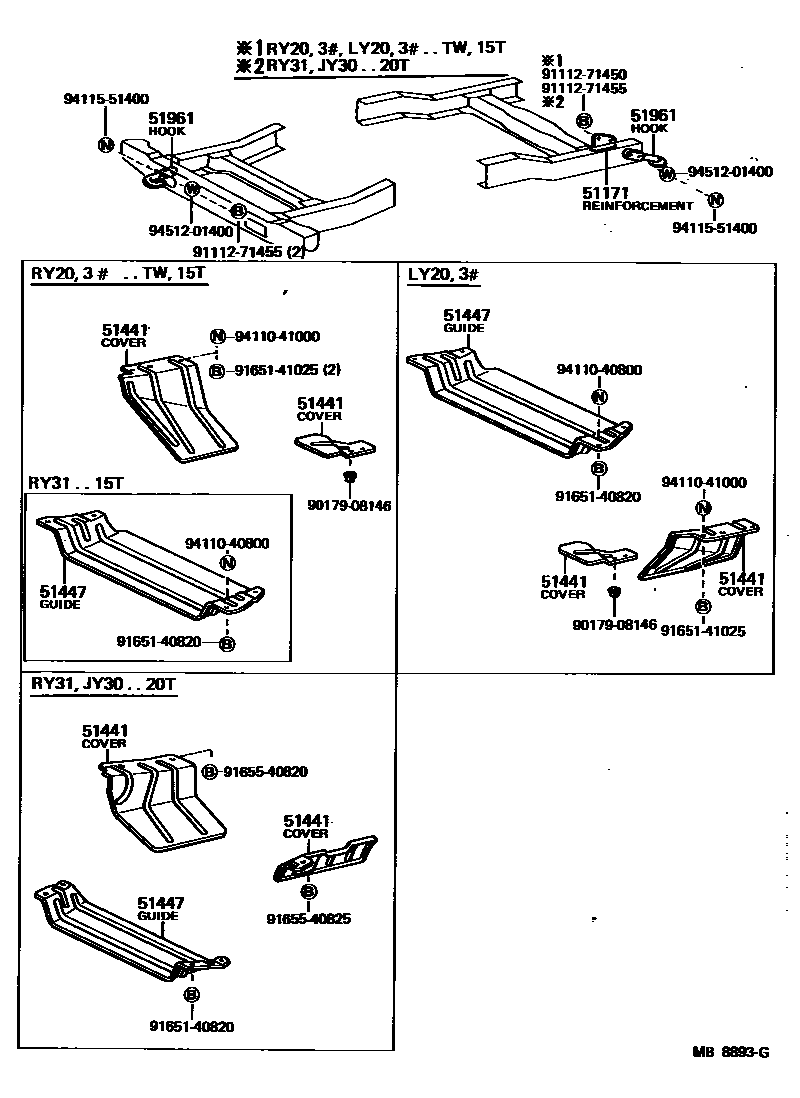

15 parts on this diagram · 1 diagram in section
