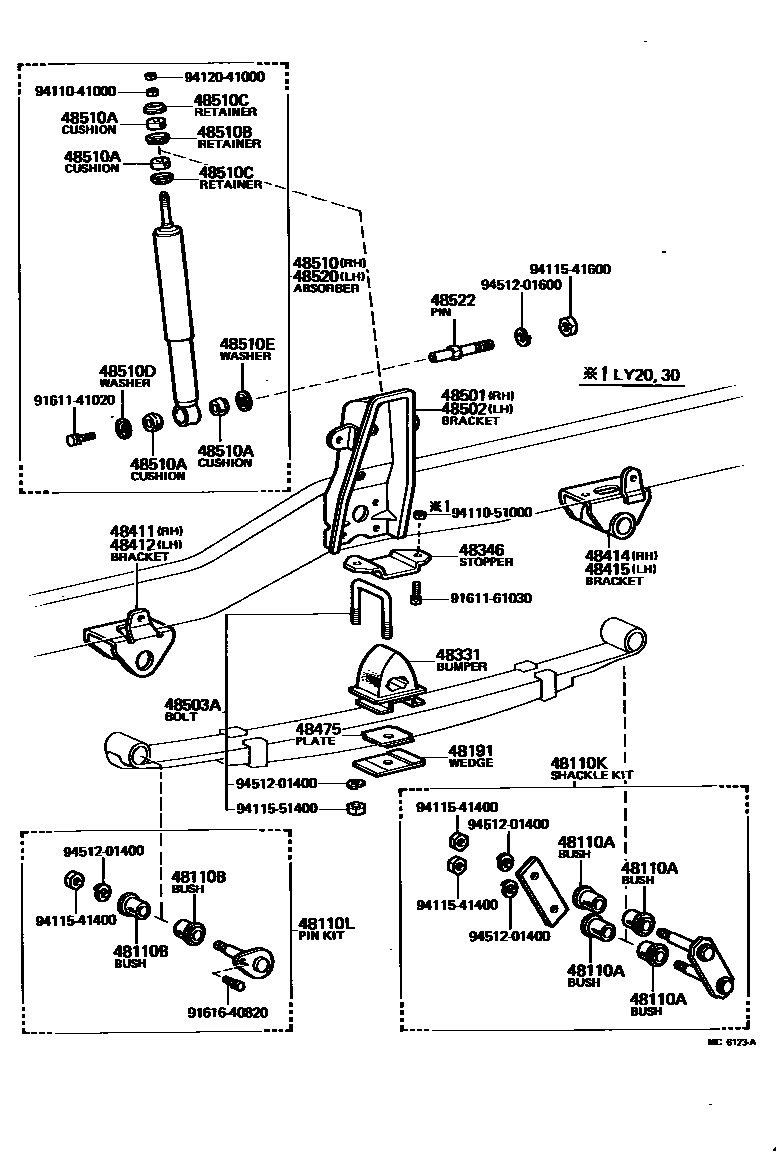

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48110SPRING ASSY, FRONT, RH

main48110-25150iLY20,3#,RY20,3#..RHD..ST..15T..CBU197903-198507

main48110-25170iJY30,RY31..LHD..20T197903-198308

sub48110-25350

main48110-25230iRY30..LHD..125197903-198507

sub48110-25290

main48110-25250iRY30..WT198409-198507

main48110-25270iRY20,3#..LHD..15T197903-198507

sub48110-25150

main48110-25280iJY30,RY31..RHD..20T197903-198507

sub48110-25350

main48110-25290iLY3#,RY30..RHD..125197905-198507

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18005iLY20,30,RY20,3#..125,15T197903-198507

main90385-18025iJY30,RY31..20T197903-197909

48110BBUSH(FOR FRONT SPRING PIN)

main90385-18005iLY20,3#,RY20,3#..125,15T197903-198507

48110KSHACKLE KIT, FRONT SPRING

main04481-25030iLY20,30,RY20,3#..125,15T197903-198012

sub04481-25031

main04481-25031iLY20,3#,RY20,3#..125,15T198012-198507

sub04481-25050

main04481-36041iJY30,RY31..20T197903-198012

sub04481-36042

main04481-36042iJY30,RY31..20T198012-198507

48110LPIN KIT, FRONT SPRING

main04482-25010iLY20,30,RY20,3#..125,15T197903-198012

sub04482-25011

main04482-25011iLY20,3#,RY20,3#..125,15T198012-198507

sub04482-25020

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-25010iLY20,3#,RY20,3#..ST..(125,15T)..CBU197903-198507

main48192-36020iJY30,RY31..20T197903-198507

main48193-36010iRY30..WT198409-198507

48331BUMPER, FRONT SPRING, NO.1

main48304-25010iJY30,RY31..20T197903-198507

main48304-36021iLY20,3#,RY20,3#..125,15T197903-198507

48346STOPPER, BUMPER, FRONT

main48035-25010iJY30,RY31..20T197903-198507

LH

main48346-25060iLY3#,RY30..125197903-198507

main48346-25070iLY20,3#,RY20,3#..15T197903-198507

main48346-25080iJY30,RY31..20T197903-198507

RH

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-25050iLY20,3#,RY20,3#..125,15T197903-198507

sub48411-25051

main48411-36070iJY30,RY31..20T197903-198507

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48411-25050iLY20,3#,RY20,3#..125,15T197903-198507

sub48411-25051

main48412-36070iJY30,RY31..20T197903-198507

48414BRACKET, FRONT SPRING(FOR REAR RH)

main48413-36020iJY30,RY31..20T197903-198507

main48433-25040iLY20,3#,RY20,3#..125,15T197903-198507

48415BRACKET, FRONT SPRING(FOR REAR LH)

main48413-36020iJY30,RY31..20T197903-198507

main48434-25030iLY20,3#,RY20,3#..125,15T197903-198507

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iJY30,LY20,3#,RY20,3#197903-198507

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48502-25010iLY20,3#,RY20,3#..125,15T197903-198507

main48512-25060iJY30,RY31..20T197903-198507

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48502-25010iLY20,3#,RY20,3#..125,15T197903-198507

main48512-25060iJY30,RY31..20T197903-198507

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90118-14170iLY20,3#,RY20,3#..125,15T197903-198507

L=75

sub90117-14005

main90118-14181iLY20,3#,RY20,3#..125,15T197903-198507

L=81,W/DISTANCE PLATE

sub90117-14013

main90118-16058iJY30,RY31..20T197903-198507

L=100

sub90117-16093

sub90170-16139

sub94621-11600

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29095iLY3#,RY30..125197903-198507

sub48511-29096

main48511-29105iJY30,RY31..20T197903-198507

sub48511-29106

main48511-29125iLY20,3#,RY20,3#..ST..15T..CBU197903-198507

MARK 48511-25110

sub48511-29126

48510ACUSHION, FRONT SHOCK ABSORBER

main90385-16007iJY30,LY20,3#,RY20,3#197903-198507

LWR

main90948-01003iJY30,LY20,3#,RY20,3#197903-198507

UPR

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iJY30,LY20,30,RY20,3#197903-197905

main90948-02017iJY30,LY20,3#,RY20,3#197905-198507

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iJY30,LY20,3#,RY20,3#197903-198507

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03003iJY30,RY31..20T197903-198507

main90948-03012iLY20,3#,RY20,3#..125,15T197903-198507

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iJY30,LY20,3#,RY20,3#197903-198507

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29095iLY3#,RY30..125197903-198507

sub48511-29096

main48511-29105iJY30,RY31..20T197903-198507

sub48511-29106

main48511-29125iLY20,3#,RY20,3#..ST..15T..CBU197903-198507

MARK 48511-25110

sub48511-29126

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iLY20,3#,RY20,3#..125,15T197903-198507

main48522-36030iJY30,RY31..20T197903-198507

9161141020

main91611-41020

9161161030

main91611-61030

9161640820

main91616-40820

9411041000

main94110-41000

9411051000

main94110-51000

9411541400

main94115-41400

9411541600

main94115-41600

9411551400

main94115-51400

9412041000

main94120-41000

9451201400

main94512-01400

9451201600

main94512-01600

35 parts on this diagram · 4 diagrams in section
