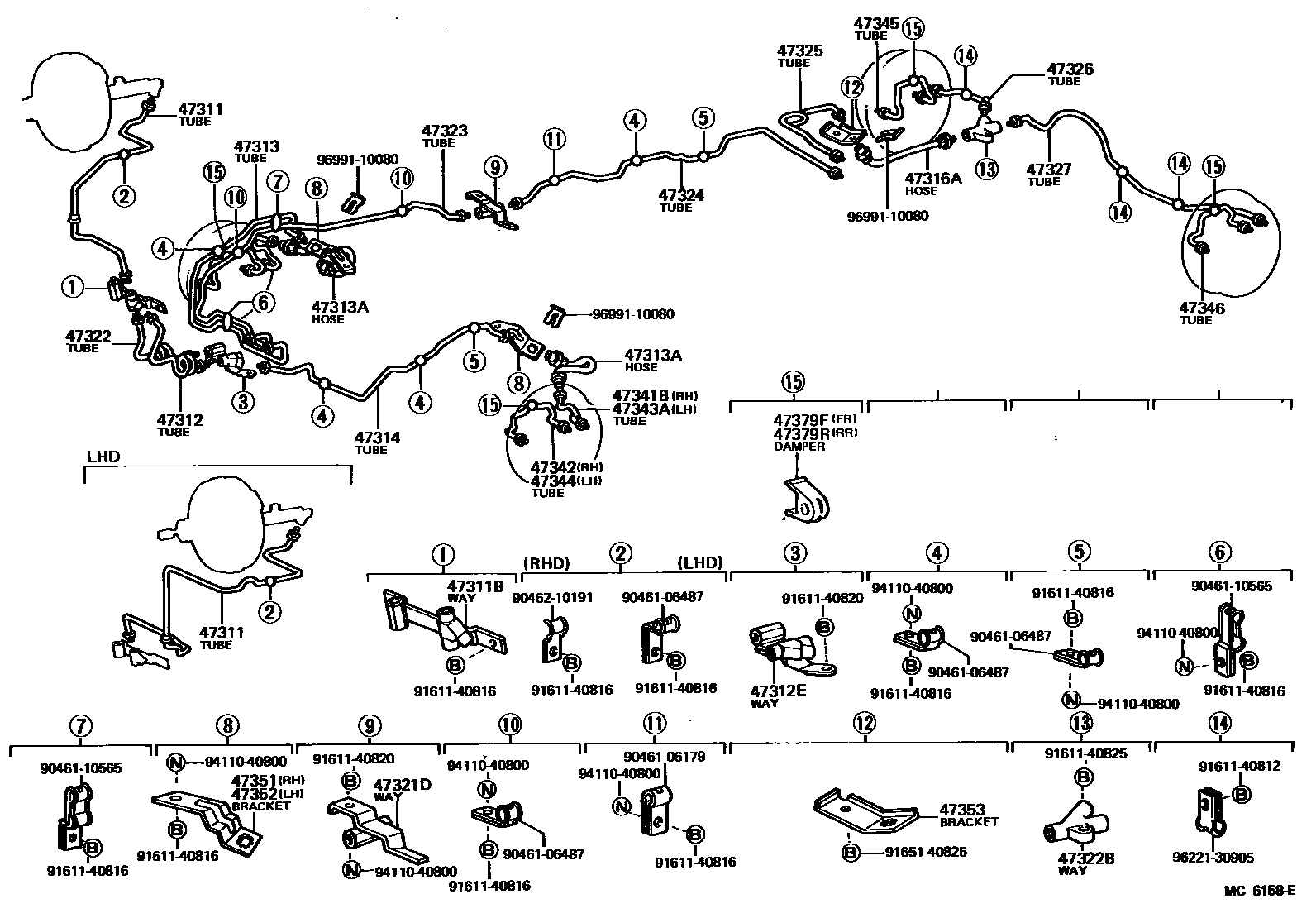

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

47311TUBE, FRONT BRAKE, NO.1

main47311-25120iRY31..ARL198005-198201

main47311-25120iLY30..T1;RY20..RHD..T3..CBU198103-198201

HONG KONG SPEC

main47311-25130iJY30,LY20,30,RY20,3#..RHD..GEN197903-198201

main47311-25140iJY30,RY20,3#..LHD197903-198201

main47311-25150iJY30,LY3#,RY20,3#..RHD198201-198507

main47311-25160iJY30,RY20,3#..LHD198201-198507

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10050iRY31..ARL198005-198507

main90412-10050iLY30..T1;RY20..RHD..T3..CBU198103-198201

HONG KONG SPEC

main90413-10075iJY30,LY20,30,RY20,3#..GEN197903-198507

47312TUBE, FRONT BRAKE, NO.2

main47312-25030iLY30,RY20,30..RHD198005-198308

main47312-25040iRY20,3#..LHD..(125,15T)197903-198308

main47312-25051iRY31..20T..ARL198005-198009

sub47312-25052

main47312-25052iRY31..20T..ARL198009-198507

main47312-25060iJY30,RY31..LHD..20T197903-198308

main47312-25060iLY30..T1;RY20..RHD..T3..CBU198103-198201

HONG KONG SPEC

main47312-25070iLY31,RY20,30..RHD198308-198507

main47312-25080iRY20,30..LHD198308-198507

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10073iJY30,LY20,30,RY20,3#197903-198507

main90413-10161iLY31,RY20,30198308-198507

47313TUBE, FRONT BRAKE, NO.3

main47313-25070iLY20,30,RY20,3#..125,15T197903-198308

main47313-25080iJY30,RY31..20T197903-198004

main47313-25081iJY30,RY31..20T198004-198507

main47313-25100iLY31,RY20,30198308-198507

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96940-33605iJY30,RY31..20T197903-198201

sub90947-02492

main96950-33605iLY20,30,RY20,3#..125,15T197903-198507

47314TUBE, FRONT BRAKE, NO.4

main47314-25100iLY20,30,RY20,3#..125,15T197903-198308

main47314-25110iJY30,RY31..20T197903-198004

main47314-25111iJY30,RY31..20T198004-198507

main47314-25130iLY31,RY20,30198308-198507

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02371iJY30,RY31..20T197903-198507

main96940-33405iLY3#,RY20,3#..ST..(125,15T)..CBU198201-198507

main96940-33805iRY30..WT198409-198507

main96940-34205iLY20,30,RY20,3#..125,15T197903-197905

main96940-34405iLY20,30,RY20,3#..125,15T197905-198201

47321TUBE, REAR BRAKE, NO.1

main47321-25010iRY31..ARL198005-198201

main47321-25010iLY30..T1;RY20..RHD..T3..CBU198103-198201

HONG KONG SPEC

main47321-25020iJY30,LY3#,RY20,3#..RHD198201-198507

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10040iJY30,RY31..20T197903-198507

main90412-10054iLY20,3#,RY20,3#..125,15T197903-198507

47322TUBE, REAR BRAKE, NO.2

main47322-25010iLY20,30,RY20,3#..125,15T197903-198308

main47322-25030iJY30,RY31..20T197903-198004

main47322-25031iJY30,RY31..20T198004-198009

sub47322-25032

main47322-25032iJY30,RY31..20T198009-198507

main47322-25050iLY31,RY20,30..RHD198308-198507

main47322-25060iRY20,30..LHD198308-198507

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10001iJY30,RY31..20T197903-198201

main90413-10125iJY30,RY31..20T198201-198507

main90413-10147iLY20,3#,RY20,3#..125,15T197903-198507

47323TUBE, REAR BRAKE, NO.3

main47323-25010iLY20,30,RY20,3#..125,15T197903-198108

sub47323-25050

main47323-25020iJY30,RY31..20T197903-198507

main47323-25050iLY20,30,RY20,3#..125,15T198108-198308

main47323-25080iLY31,RY20,30198308-198507

47324TUBE, REAR BRAKE, NO.4

main47324-25030iLY20,RY20197903-198201

main47324-25040iLY30,RY3#..125,15T197903-198201

main47324-25050iRY31..20T197903-198201

main47324-25060iJY30197903-198201

main47324-25100iRY20198201-198507

main47324-25110iRY3#..125,15T198201-198507

main47324-25130iLY3#198201-198507

main47324-25140iRY31..20T198201-198507

main47324-25150iJY30198201-198308

47325TUBE, REAR BRAKE, NO.5

main47325-25020iRY20,3#..125,15T198201-198507

main47325-25030iLY20,30,RY20,3#..125,15T197903-198201

main47325-25050iJY30197903-198004

main47325-25051iJY30198004-198201

main47325-25060iRY31..20T197903-198004

main47325-25061iRY31..20T198004-198201

main47325-25120iLY3#198201-198507

main47325-25130iRY31..20T198201-198507

main47325-25140iJY30198201-198308

47326TUBE, REAR BRAKE, NO.6

main47326-25040iRY20,3#..(125,15T)..CBU197903-198507

main47326-25050iRY31..20T198201-198507

main47326-25100iLY3#198201-198507

main47326-25120iRY30..WT198409-198507

main47329-36010iJY30197903-198201

main47329-36020iRY31..20T197903-198201

main47329-36140iJY30198201-198308

47327TUBE, REAR BRAKE, NO.7

main47327-25030iLY20,30,RY20,3#..125,15T197903-198507

main47327-25040iRY30..WT198409-198507

main47327-25060iRY31..20T198201-198507

main47327-25080iLY3#198201-198507

main47331-36040iJY30197903-198201

main47331-36050iRY31..20T197903-198201

main47331-36170iJY30198201-198308

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-25030iLY20,3#,RY20,3#..125,15T197903-198507

main47341-36010iJY30,RY31..20T197903-198201

main47341-36020iJY30,RY31..20T198201-198507

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-25011iLY20,3#,RY20,3#..125,15T197903-198507

main47342-36020iJY30,RY31..20T197903-198507

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-25020iLY20,3#,RY20,3#..125,15T197903-198507

main47343-36010iJY30,RY31..20T197903-198201

main47343-36050iJY30,RY31..20T198201-198507

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iJY30,RY31..20T197903-198507

main47344-25011iLY20,3#,RY20,3#..125,15T197903-198507

47345TUBE, WHEEL CYLINDER, REAR RH

main47345-25030iLY20,3#,RY20,3#..ST..(125,15T)..CBU197903-198507

main47345-25040iRY30..WT198409-198507

main47345-36010iJY30,RY31..20T197903-198105

sub47345-36011

main47345-36011iJY30,RY31..20T198105-198507

47346TUBE, WHEEL CYLINDER, REAR LH

main47345-25030iLY20,3#,RY20,3#..ST..(125,15T)..CBU197903-198507

main47345-36010iJY30,RY31..20T197903-198105

sub47345-36011

main47345-36011iJY30,RY31..20T198105-198507

main47346-25020iRY30..WT198409-198507

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-25030iLY20,3#,RY20,3#..125,15T197903-198507

main47351-36050iJY30,RY31..20T197903-198507

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-25050iLY20,3#,RY20,3#..125,15T197903-198507

main47352-36050iJY30,RY31..20T197903-198507

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-25010iLY20,3#,RY20,3#..125,15T197903-198507

main47353-25020iJY30,RY31..20T197903-198004

main47353-25021iJY30,RY31..20T198004-198507

47379FDAMPER, TUBE(FOR FRONT)

main47379-25010iLY20,3#,RY20,3#..125,15T197903-198507

47379RDAMPER, TUBE(FOR REAR)

main47379-25010iLY20,3#,RY20,3#..ST..(125,15T)..CBU197903-198507

9046106179

main90461-06179

9046106487

main90461-06487

9046110565

main90461-10565

9046210191

main90462-10191

9161140812

main91611-40812

9161140816

main91611-40816

9161140820

main91611-40820

9161140825

main91611-40825

9165140825

main91651-40825

9411040800

main94110-40800

9622130905

main96221-30905

9699110080

main96991-10080

40 parts on this diagram · 8 diagrams in section
