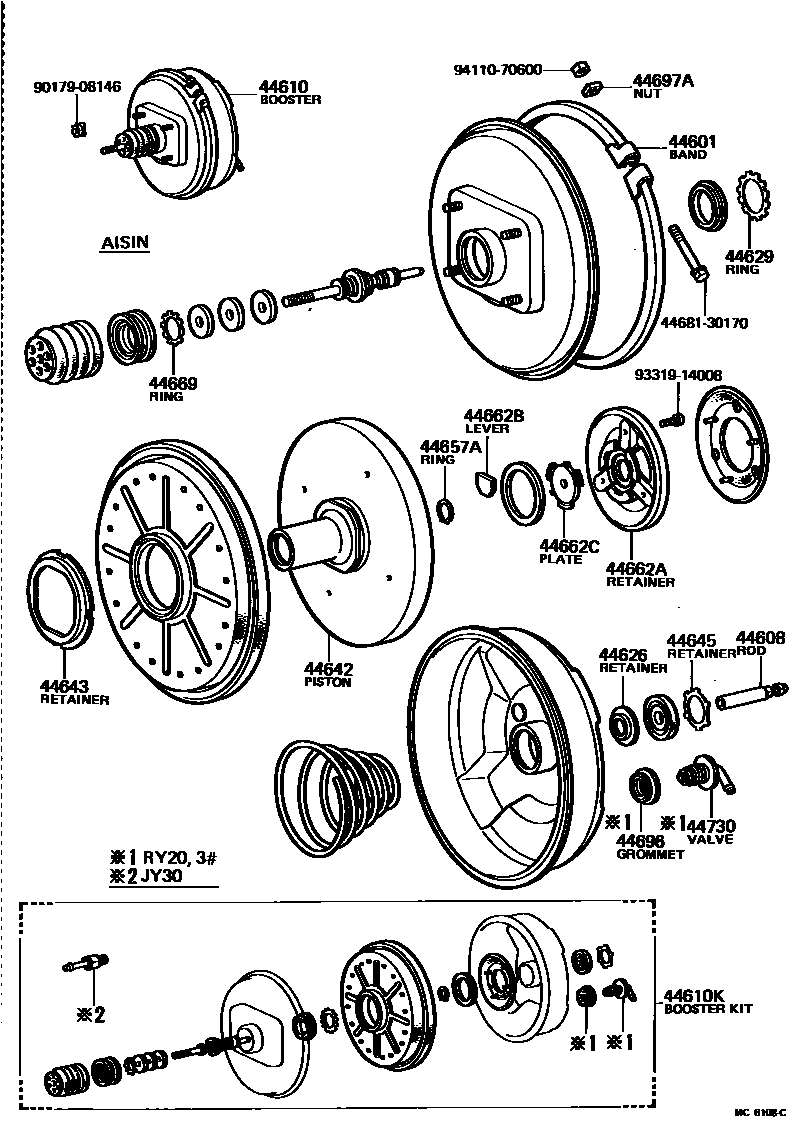

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44601BAND SUB-ASSY, BOOSTER BODY

main44605-36120iRY31..15T;JY30,RY20,30197903-198507

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-35100iRY31..15T;JY30,RY20,30197903-198507

main44608-22090iLY20,3#;RY31..20T197903-198507

44610BOOSTER ASSY, BRAKE

main44610-25070iJY30197903-198308

main44610-25080iLY20,3#197903-198507

main44610-25100iRY20,3#..125,15T197903-198507

main44610-25120iRY31..20T197903-198507

44610KBOOSTER KIT, BRAKE

main04443-25050iJY30197903-198308

main04443-25060iLY20,3#197903-198507

main04443-25080iRY20,3#..125,15T197903-198507

main04443-25100iRY31..20T197903-198507

44626RETAINER, BOOSTER ROD CUP

main44626-60010iRY31..15T;JY30,RY20,30197903-198507

44629RING, CIRCULAR INTERNAL

main44629-30090iRY31..15T;JY30,RY20,30197903-198507

44642PISTON, BRAKE BOOSTER

main44642-14520iRY31..20T197903-198507

main44642-25080iLY20,3#197903-198507

main44642-30030iRY31..15T;JY30,RY20,30197903-198507

44643RETAINER, DIAPHRAGM

main44643-60010iRY31..15T;JY30,RY20,30197903-198507

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iRY31..15T;JY30,RY20,30197903-198507

main44645-22020iLY20,3#;RY31..20T197903-198507

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iRY31..15T;JY30,RY20,30197903-198507

44662ARETAINER, REACTION, NO.2

main44662-20460iRY31..15T;JY30,RY20,30197903-198507

44662BLEVER, REACTION

main44661-35100iRY31..15T;JY30,RY20,30197903-198507

44662CPLATE, REACTION, NO.1

main44607-25070iJY30197903-198308

main44607-25100iRY20,3#..125,15T197903-198507

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iRY31..15T;JY30,RY20,30197903-198507

44696GROMMET, CHECK VALVE

main90480-24438iRY31..20T197903-198507

sub90480-24517

main90480-24439iRY20,3#..125,15T197903-198507

44697ANUT(FOR BOOSTER BAND SET)

main44686-30030iLY30,RY20,3#..125,15T197903-198507

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20060iRY20,3#..125,15T197903-198507

main44730-22090iRY31..20T197903-198507

main44730-60040iJY30,LY20,3#197903-198507

4468130170PLUG, BOOSTER

main44681-30170

9017908146

main90179-08146

9331914008

main93319-14008

9411070600

main94110-70600

21 parts on this diagram · 6 diagrams in section
