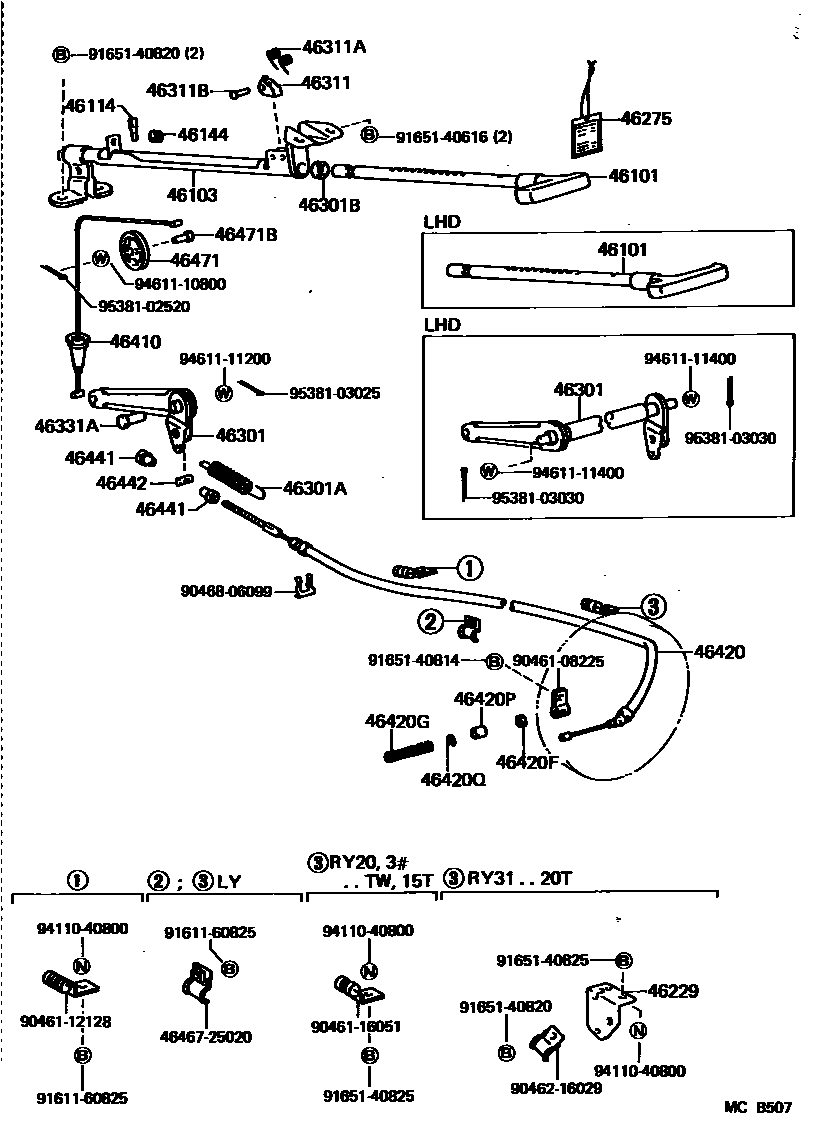

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-25020iJY30,LY20,30,RY20,3#..RHD197903-198003

main46101-25021iJY30,LY20,3#,RY20,3#..RHD..GEN198003-198408

main46101-25030iJY30,RY20,3#..LHD197903-198408

main46101-25040iLY3#,RY31..ARL198005-198408

main46120-25010iLY31,RY20,3#..RHD198408-198507

main46120-25020iRY20,30..LHD198408-198507

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-25050iJY30,LY20,30,RY20,3#..RHD197903-198003

sub46103-25H00

main46103-25051iJY30,LY20,3#,RY20,3#..RHD..GEN198003-198408

main46103-25052iLY31,RY20,3#..RHD198408-198507

main46103-25060iJY30,RY20,3#..LHD197903-198408

main46103-25061iRY20,30..LHD198408-198507

main46103-25070iLY3#,RY31..ARL198005-198408

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iJY30,LY20,3#,RY20,3#197903-198507

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iJY30,LY20,3#,RY20,3#..GEN197903-198507

main46144-30020iLY3#,RY31..ARL198005-198408

46229SUPPORT, PARKING BRAKE CABLE GUIDE

main46229-25010iJY30,RY31..20T197903-198004

sub46229-25020

main46229-25020iJY30,RY31..20T198004-198507

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iLY31,RY20,3#198408-198507

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46307-25030iJY30,LY20,3#,RY20,3#..RHD197903-198507

main46307-25040iJY30,RY20,3#..LHD197903-198507

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-18090iJY30,LY20,3#,RY20,3#197903-198507

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-12048iJY30,LY20,3#,RY20,3#197903-198507

46311PAWL, PARKING BRAKE

main46311-26010iLY31,RY20,3#198408-198507

main46311-30041iJY30,LY20,3#,RY20,3#197903-198408

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-08011iLY3#,RY31..ARL198005-198408

main90508-08106iLY31,RY20,3#197903-198507

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010iJY30,LY20,3#,RY20,3#197903-198507

46331APIN, W/HOLE(FOR INTERMEDIATE LEVER PULL ROD)

main90240-12141iJY30,LY20,3#,RY20,3#..RHD197903-198507

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-25070iJY30,LY20,3#,RY20,3#197903-198507

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-25040iRY20,3#..125,15T197903-198507

main46420-25050iLY20,30197903-198004

main46420-25051iLY20,3#198004-198507

main46420-25060iJY30197903-198308

main46420-25070iRY31..20T197903-198507

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iJY30,LY20,3#,RY20,3#197903-198507

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14021iJY30,LY20,3#,RY20,3#197903-198507

46420PSPACER, PARKING BRAKE

main90560-08002iJY30,LY20,3#,RY20,3#197903-198507

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iJY30,LY20,3#,RY20,3#197903-198507

46441NUT, WIRE ADJUSTING, NO.1

main46441-30010iJY30,LY20,3#,RY20,3#197903-198507

46442PIN, WIRE PIVOT

main46442-35010iJY30,LY20,3#,RY20,3#197903-198507

46471PULLEY, WIRE

main46471-20010iJY30,LY20,3#,RY20,3#197903-198507

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08062iJY30,LY20,3#,RY20,3#197903-198507

4646725020CLAMP, CABLE

main46467-25020

9046108225

main90461-08225

9046112128

main90461-12128

9046116051

main90461-16051

9046216029

main90462-16029

9046806099

main90468-06099

9161160825

main91611-60825

9165140616

main91651-40616

9165140814

main91651-40814

9165140820

main91651-40820

9165140825

main91651-40825

9411040800

main94110-40800

9461110800

main94611-10800

9461111200

main94611-11200

9461111400

main94611-11400

9538102520

main95381-02520

9538103025

main95381-03025

9538103030

main95381-03030

41 parts on this diagram · 4 diagrams in section
