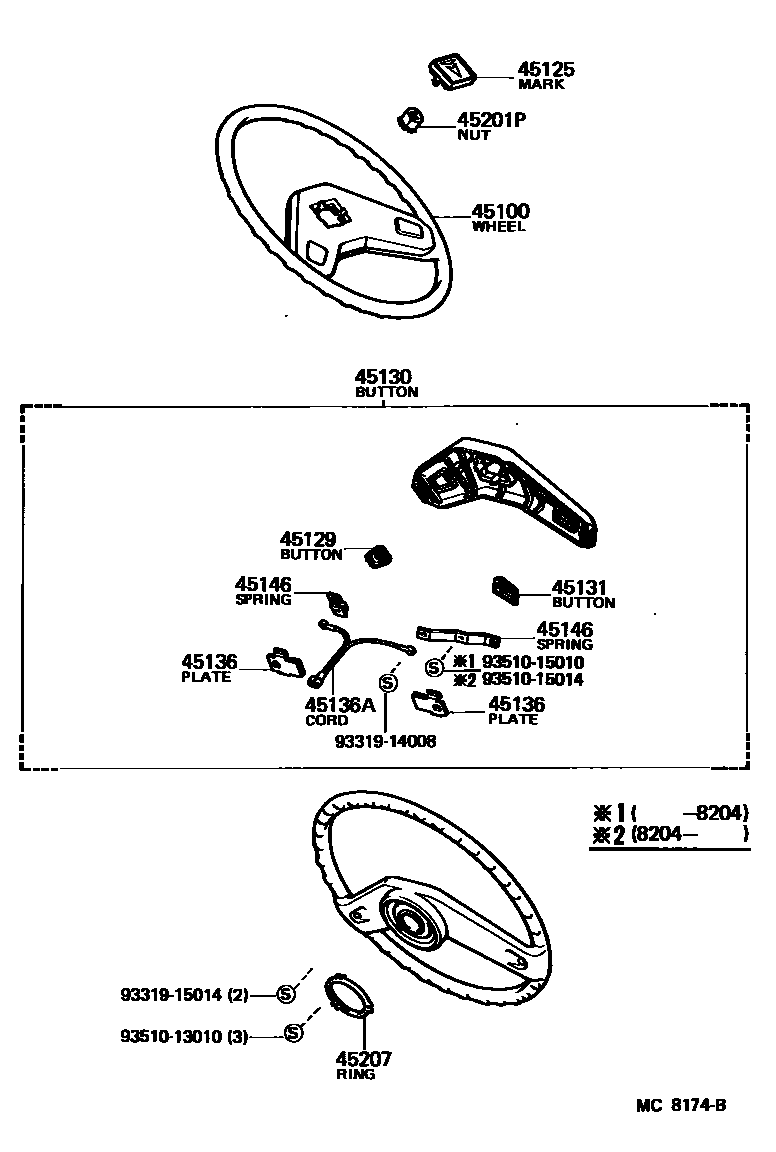

STEERING WHEEL

0001 1 0002 1 0004 1

45100WHEEL ASSY, STEERING

main45100-25060iJY30,LY3#,RY20,3#198201-198507

TYPE A

sub45100-25080

main45100-25070iRY30..125198307-198507

TYPE B

sub45100-26020

main45100-26020-01iLY20,30,RY20,3#..125,15T197903-198201

BLACK,BLACK

sub45100-26020

main45102-36030iJY30,RY31..20T197903-198201

45125MARK, STEERING WHEEL PAD

main45125-25020iJY30,LY3#,RY20,3#198201-198507

TYPE A

main45125-26010iRY30..125198307-198507

TYPE B

main45125-26010iLY20,30,RY20,3#..125,15T197903-198201

main45125-36010iJY30,RY31..20T197903-198201

45129BUTTON, HORN, NO.2

main45131-26020iLY20,30,RY20,3#..125,15T197903-198201

main45131-26020iRY30..125198307-198507

TYPE B

main45131-36050iJY30,LY3#,RY20,3#198201-198507

TYPE A

45130BUTTON ASSY, HORN

main45130-25040iJY30,LY3#,RY20,3#198201-198507

TYPE A

sub45130-25060

main45130-25050iRY30..125198307-198507

TYPE B

main45130-26020-01iLY20,30,RY20,3#..125,15T197903-198201

BLACK,BLACK

sub45130-26020

main45130-36040iJY30,RY31..20T197903-198201

45131BUTTON, HORN, NO.1

main45131-26020iLY20,30,RY20,3#..125,15T197903-198201

main45131-26020iRY30..125198307-198507

TYPE B

main45131-36050iJY30,LY3#,RY20,3#198201-198507

TYPE A

45136PLATE, HORN BUTTON CONTACT

main45136-26020iJY30,LY20,3#,RY20,3#197903-198507

45136ACORD(FOR HORN CONTACT RING)

main90945-02013iJY30,LY20,3#,RY20,3#197903-198507

45146SPRING, HORN BUTTON CONTACT

main45146-26010iJY30,LY20,30,RY20,3#197903-198201

main45146-26010iRY30..125198307-198507

TYPE B

main45146-36010iJY30,LY3#,RY20,3#198201-198507

TYPE A

45201PNUT, STEERING WHEEL SET

main90179-12086iJY30,LY20,3#,RY20,3#197903-198507

45207RING, HORN CONTACT

main45176-20030iJY30,RY31..20T197903-198507

main45176-22020iLY20,30,RY20,3#..125,15T197903-198201

sub45176-20030

9331914008

main93319-14008

9331915014

main93319-15014

9351013010

main93510-13010

9351015010

main93510-15010

9351015014

main93510-15014

15 parts on this diagram · 3 diagrams in section
