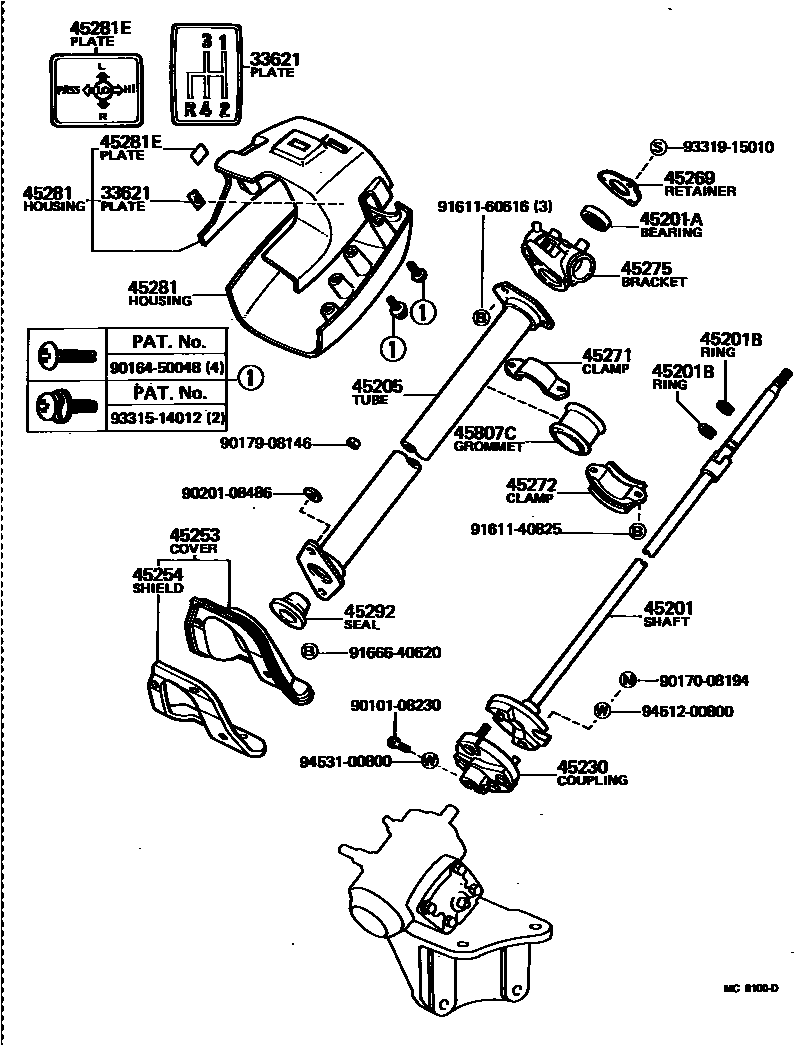

STEERING COLUMN & SHAFT

0001 1 0002 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iRY20,3#..LHD197903-198507

main33621-36020iJY30,LY20,3#..RHD197903-198507

main33621-36030iJY30..LHD197903-198308

main33621-36040iRY20,3#..RHD197903-198507

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-25070iJY30197903-198308

main45201-25080iRY20,30..LHD198410-198507

main45201-36110iLY31,RY20,3#..RHD197903-198507

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iJY30,LY20,3#,RY20,3#197903-198507

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iJY30,LY20,3#,RY20,3#197903-198507

T=1.20,LWR

main90520-17269iJY30,LY20,3#,RY20,3#197903-198507

T=1.20,UPR

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-25090iJY30,LY20,30,RY20,3#..RHD197903-198308

main45205-25100iJY30,RY20,3#..LHD197903-198410

main45205-25101iRY20,30..LHD198410-198507

main45205-25110iLY31,RY20,3#..RHD198308-198507

45230COUPLING ASSY, FLEXIBLE

main45230-36010iJY30,LY20,3#,RY20,3#197903-198507

45253COVER, STEERING COLUMN HOLE

main45253-25030iJY30,LY20,30,RY20,3#..RHD197903-198308

main45253-25040iJY30,RY20,3#..LHD197903-198410

main45253-25041iRY20,30..LHD198410-198507

main45253-25050iLY31,RY20,3#..RHD198308-198507

45254SHIELD, STEERING COLUMN HOLE

main45254-25020iJY30,LY20,3#,RY20,3#..RHD197903-198507

main45254-25030iJY30,RY20,3#..LHD197903-198507

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iJY30,LY20,3#,RY20,3#197903-198507

45271CLAMP, STEERING COLUMN, UPPER

main45271-25010iJY30,LY20,3#,RY20,3#197903-198507

45272CLAMP, STEERING COLUMN, LOWER

main45272-25010iJY30,LY20,30,RY20,3#197903-198507

main45272-25020iJY30,LY3#,RY20,3#..RHD198201-198507

45275BRACKET, STEERING COLUMN, UPPER

main45307-36050iJY30,LY20,30,RY20,3#..RHD197903-198209

sub45307-36051

main45307-36051iJY30,LY3#,RY20,3#..RHD198209-198507

main45307-36080iJY30,RY20,3#..LHD197903-198209

sub45307-36081

main45307-36081iJY30,RY20,3#..LHD198209-198507

45281HOUSING, STEERING COLUMN

main45286-25030iRY20,3#..RHD197903-198201

UPR

main45286-25040iJY30,LY20,30..RHD197903-198201

UPR

main45286-25050iRY20,3#..LHD197903-198201

UPR

main45286-25060iJY30..LHD197903-198201

UPR

main45286-25090iRY20,3#..RHD198201-198507

UPR

main45286-25100iJY30,LY3#..RHD198201-198507

UPR

main45286-25110iRY20,3#..LHD198201-198507

UPR

main45286-25120iJY30..T3198201-198308

UPR

main45287-25010iJY30,LY20,30,RY20,3#..RHD197903-198201

LWR

main45287-25020iJY30,RY20,3#..LHD197903-198201

LWR

main45287-25030iJY30,LY3#,RY20,3#..RHD198201-198507

LWR

main45287-25040iJY30,RY20,3#..LHD198201-198507

LWR

45281EPLATE, SAFETY CAUTION

main45283-22010iJY30,LY20,3#,RY20,3#..RHD197903-198507

main45283-22020iJY30,RY20,3#..LHD197903-198507

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36010iJY30,LY20,3#,RY20,3#197903-198507

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-45092iJY30,LY20,3#,RY20,3#197903-198507

9010108230

main90101-08230

9016450048

main90164-50048

9017008194

main90170-08194

9017908146

main90179-08146

9020108486

main90201-08486

9161140825

main91611-40825

9161160616

main91611-60616

9166640620

main91666-40620

9331514012

main93315-14012

9331915010

main93319-15010

9451200800

main94512-00800

9453100800

main94531-00800

28 parts on this diagram · 2 diagrams in section
