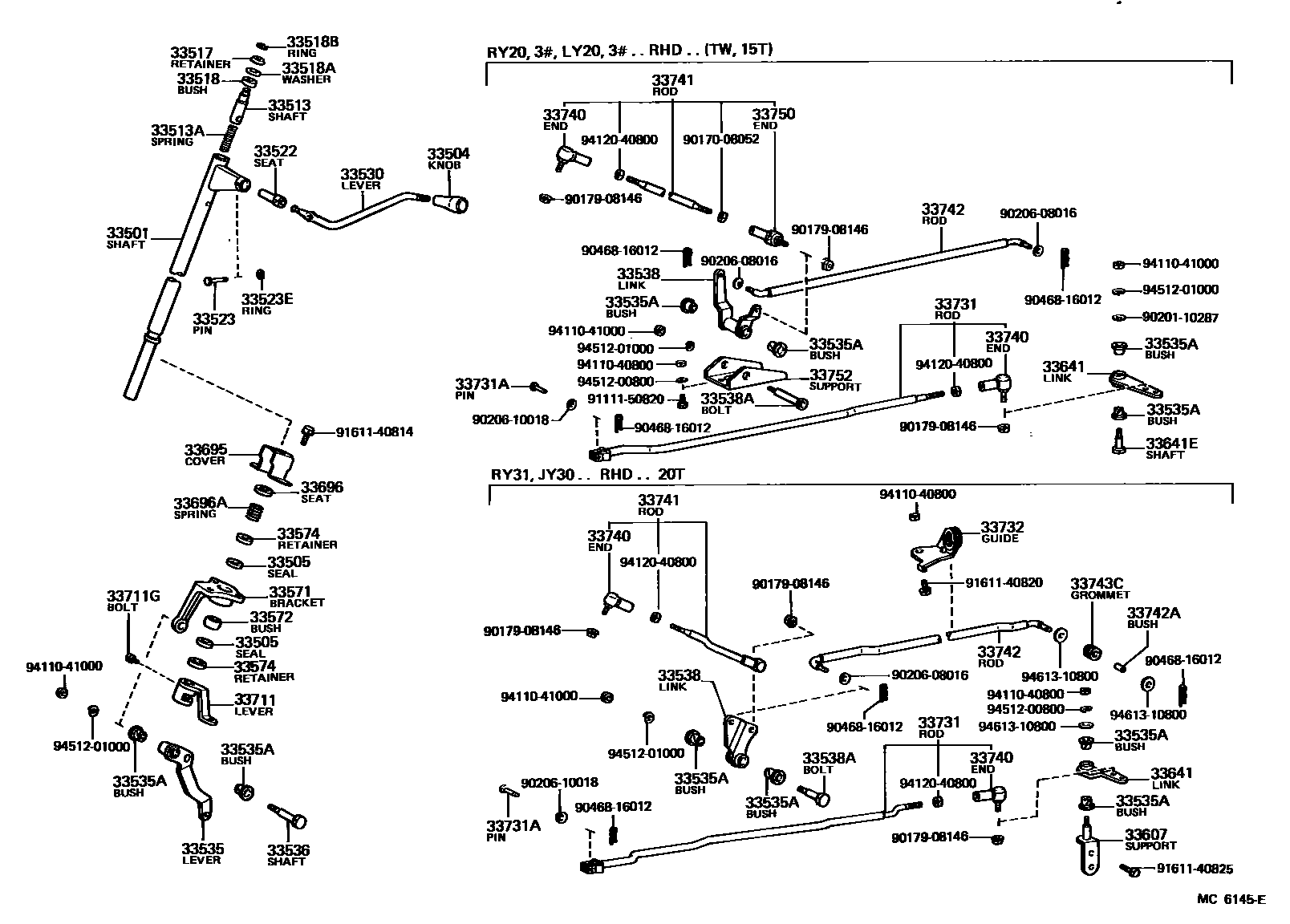

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-25060iJY30,LY20,30,RY20,3#197903-198410

main33501-25080iLY31,RY20,3#..RHD198308-198507

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iJY30,LY20,3#,RY20,3#197903-198507

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17005iJY30,LY20,3#,RY20,3#197903-198507

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-36020iJY30,LY20,3#,RY20,3#197903-198507

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iJY30,LY20,3#,RY20,3#197903-198507

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iJY30,LY20,3#,RY20,3#197903-198507

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iJY30,LY20,3#,RY20,3#197903-198507

sub33518-35010

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main33515-30010iJY30,LY20,3#,RY20,3#197903-198507

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iJY30,LY20,3#,RY20,3#197903-198507

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iJY30,LY20,3#,RY20,3#197903-198507

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iJY30,LY20,3#,RY20,3#197903-198507

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iJY30,LY20,3#,RY20,3#197903-198507

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-25070iJY30,LY20,3#,RY20,3#..RHD197903-198507

main33541-25080iJY30,RY20,3#..LHD197903-198507

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-25070iJY30,LY20,30,RY20,3#..RHD197903-198201

sub33535-25090

main33535-25080iJY30,RY20,3#..LHD197903-198201

sub33535-25100

main33535-25090iJY30,LY3#,RY20,3#..RHD198201-198507

main33535-25100iJY30,RY20,3#..LHD198201-198507

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007iJY30,LY20,3#,RY20,3#197903-198507

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-36040iJY30,LY20,3#,RY20,3#197903-198507

33538LINK, SHIFTING LEVER

main33538-25070iLY20,3#,RY20,3#..RHD..(125,15T)197903-198507

main33538-25080iRY20,3#..LHD..(125,15T)197903-198507

main33538-25090iJY30,RY31..RHD..20T197903-198507

main33538-25100iJY30,RY31..LHD..20T197903-198308

33538ABOLT (FOR SHIFTING LEVER LINK SETTING)

main33536-25020iLY20,3#,RY20,3#..125,15T197903-198507

main33536-36040iJY30,RY31..20T197903-198507

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-25040iJY30,LY20,30,RY20,3#..RHD197903-198308

main33571-25050iJY30,RY20,3#..LHD197903-198410

main33571-25051iRY20,30..LHD198410-198507

main33571-25060iLY31,RY20,3#..RHD198308-198507

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-36010iJY30,LY20,3#,RY20,3#197903-198507

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010iJY30,LY20,3#,RY20,3#197903-198507

33607SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT)

main33607-25010iJY30,RY31..20T197903-198004

main33607-25011iJY30,RY31..RHD..20T198004-198507

main33607-25020iJY30,RY31..LHD..20T198004-198308

33641LINK, SELECTING (FOR COLUMN SHIFT)

main33641-25070iLY20,3#,RY20,3#..125,15T197903-198507

main33641-25080iJY30,RY31..20T197903-198507

33641ESHAFT, SELECTING LINK

main33536-36040iLY20,3#,RY20,3#..125,15T197903-198507

33695COVER, SELECTING SPRING (FOR COLUMN SHIFT)

main33695-25010iJY30,LY20,30,RY20,3#..RHD197903-198507

main33695-25020iJY30,RY20,3#..LHD197903-198507

33696SEAT, SELECT SPRING

main33696-36010iJY30,LY20,3#,RY20,3#197903-198507

33696ASPRING, COMPRESSION

main90501-20713iJY30,LY20,3#,RY20,3#197903-198507

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-25060iJY30,LY20,30,RY20,3#197903-198410

main33527-25070iLY31,RY20,3#..RHD198308-198507

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iJY30,LY20,3#,RY20,3#197903-198507

33731ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-25090iRY20,3#..RHD..(125,15T)197903-198507

main33720-25100iRY20,3#..LHD..(125,15T)197903-198507

main33720-25110iLY20,30197903-198308

sub33720-25150

main33720-25120iJY30,RY31..RHD..20T197903-198507

main33720-25130iJY30,RY31..LHD..20T197903-198308

main33720-25150iLY31198308-198507

33731APIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)

main90240-08028iJY30,LY20,3#,RY20,3#197909-198507

main90240-08040iJY30,LY20,30,RY20,3#197903-197909

33732GUIDE, SELECTING ROD

main33732-25020iJY30,RY31..RHD..20T197903-198507

main33732-25030iJY30,RY31..LHD..20T197903-198308

33740END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)

main33740-35011iJY30,LY20,3#,RY20,3#197903-198507

sub33740-26010

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-25070iLY20,3#,RY20,3#..RHD..(125,15T)197903-198507

sub33710-25H98

main33710-25080iRY20,3#..LHD..(125,15T)197903-198507

sub33710-25H98

main33710-25090iJY30,RY31..RHD..20T197903-198507

main33710-25100iJY30,RY31..LHD..20T197903-198308

33742ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)

main33742-25070iLY20,30,RY20,3#..125,15T197903-198507

main33742-25080iRY31..20T197903-198507

main33742-25090iJY30..LHD197903-198308

main33742-25110iRY20,3#..LHD..(125,15T)198101-198507

33742ABUSH(FOR SHIFTING ROD NO.2)

main90389-08005iJY30,RY31..20T197903-198507

33743ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)

main33840-25010iRY30..125197903-197904

main33840-25011iLY20,3#,RY20,3#..125,15T197904-198507

main33840-25020iRY31..20T197903-198507

main33840-25030iJY30..RHD197903-198308

main33840-25040iJY30..LHD197903-198308

sub33710-25H93

33743CGROMMET

main90480-17177iJY30,LY20,3#,RY20,3#197903-198507

33750END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)

main33750-35011iRY31..15T;JY30,LY20,3#,RY20,30197903-198507

sub33750-26010

33752SUPPORT, CONTROL LINK

main33752-25010iLY20,3#,RY20,3#..125,15T197903-198507

9017008052

main90170-08052

9017908146

main90179-08146

9020110287

main90201-10287

9020608016

main90206-08016

9020610018

main90206-10018

9046816012

main90468-16012

9111150820

main91111-50820

9161140814

main91611-40814

9161140820

main91611-40820

9161140825

main91611-40825

9411040800

main94110-40800

9411041000

main94110-41000

9412040800

main94120-40800

9451200800

main94512-00800

9451201000

main94512-01000

9461310800

main94613-10800

56 parts on this diagram · 6 diagrams in section
