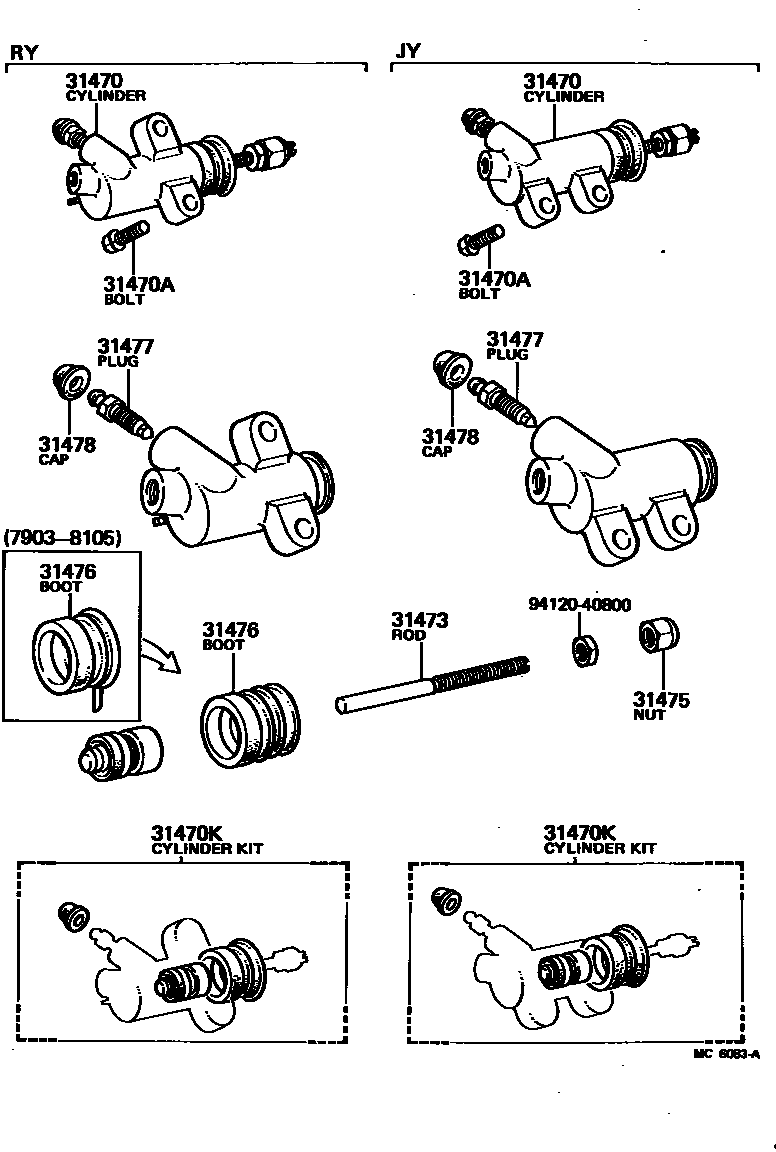

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20091iJY30197903-198107

sub31470-26020

main31470-20101iRY20,3#197903-198507

main31470-26020iJY30198107-198308

main31470-26030iLY20,3#198107-198507

main31470-30120iLY20,30197903-198107

sub31470-26030

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iJY30,LY20,3#,RY20,3#197903-198507

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-25010iJY30,LY20,3#,RY20,3#198105-198507

main04313-30054iJY30,LY20,30,RY20,3#197903-198105

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-25010iJY30,LY20,3#,RY20,3#198105-198507

main31473-30021iJY30,LY20,30,RY20,3#197903-198105

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30020iJY30,LY20,3#,RY20,3#197903-198507

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iJY30,LY20,30,RY20,3#197903-198105

main31476-22010iJY30,LY20,3#,RY20,3#198105-198507

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iJY30,LY20,3#,RY20,3#197903-198507

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iJY30,LY20,3#,RY20,3#197903-198507

9412040800

main94120-40800

9 parts on this diagram · 2 diagrams in section
