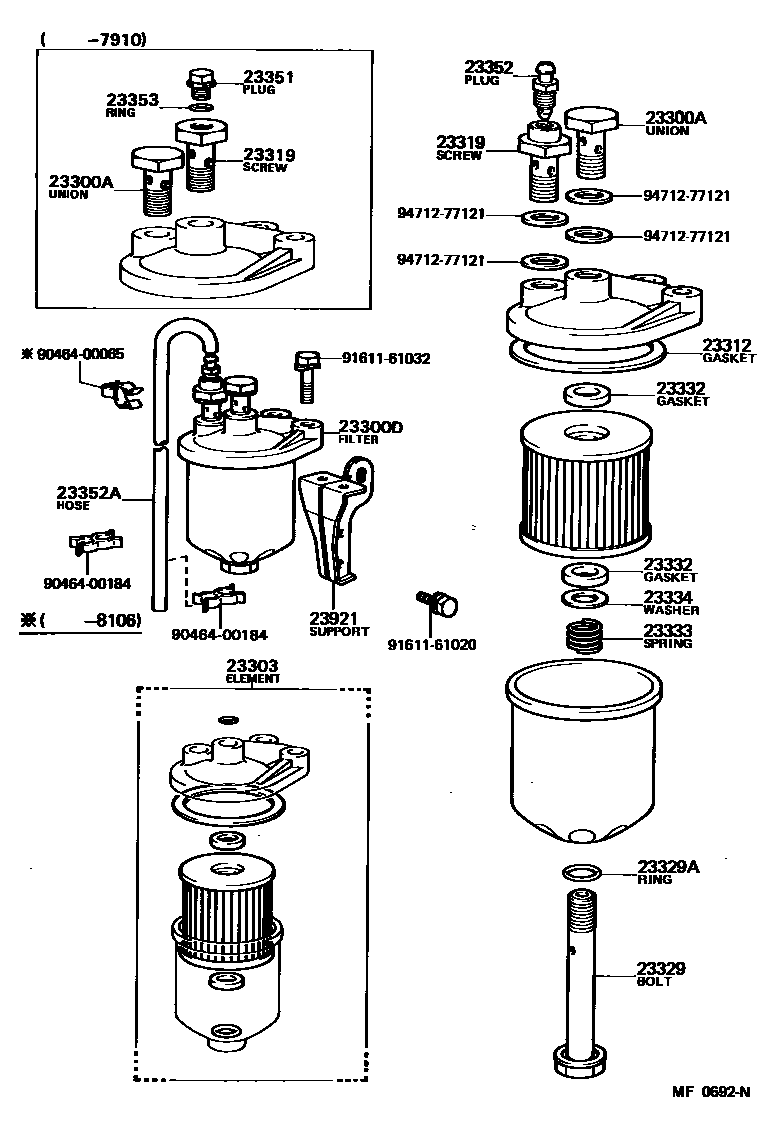

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

23300FILTER ASSY, FUEL

main23300-26060i12R,5R..RY20,3#197903-198507

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23323-54070i2L..LY31198308-198507

main90401-14060i2J..JY30197903-198308

sub90099-18010

main90405-08009iL..LY20,30197903-198308

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-48013i2J..JY30197903-197910

sub23300-48014

main23300-48014i2J..JY30197910-198308

main23300-54020iL..LY20,30197903-197907

sub23300-54021

main23300-54021iL..LY20,30197907-198001

sub23300-54022

main23300-54022iL..LY20,30198001-198008

sub23300-54023

main23300-54023iL..LY20,30198008-198201

main23300-54100iL..LY30198201-198308

main23300-54190i2L..LY31198308-198507

23303ELEMENT SUB-ASSY, FUEL FILTER

main04234-48012i2J..JY30197903-198308

main23303-54010iL..LY20,30197903-198007

sub23303-54011

main23303-54011iL..LY20,30198007-198201

sub23303-54072

main23303-54071iL..LY30198201-198308

sub23303-54072

main23303-64010i2L..LY31198308-198507

23312GASKET, FILTER BOWL

main23312-48012i2J..JY30197903-198308

23319SCREW, FUEL PIPE FOLLOW

main23319-46010i2J..JY30197903-197910

main23319-48010i2J..JY30197910-198308

main23319-54010iL..LY20,30197903-197910

OUTLET

sub90099-18011

main90099-18011iL..LY20,30197903-197910

INLET

main90099-18011iL,2L..LY20,3#197910-198507

23329BOLT, FUEL FILTER CENTER

main23304-48012i2J..JY30197903-198308

23329ARING, O(FOR FUEL FILTER CENTER BOLT)

main23344-46010i2J..JY30197903-198111

main23344-68010i2J..JY30198111-198308

23332GASKET, ELEMENT(FOR FUEL FILTER)

main23332-48012i2J..JY30197903-198308

23333SPRING, FILTER ELEMENT SET

main23333-48012i2J..JY30197903-198308

23334PLATE, SPRING(FOR FILTER ELEMENT)

main23334-48012i2J..JY30197903-198308

23351PLUG, AIR VENT

main23351-46010i2J..JY30197903-197910

main23351-54010iL..LY20,30197903-197910

23352PLUG, BLEEDER

main47547-12030i2J..JY30197910-198308

23352AHOSE(FOR BLEEDER PLUG)

main90446-08009i2J..JY30197910-198308

23353RING, O(FOR AIR VENT PLUG)

main23353-46010i2J..JY30197903-197910

main23353-54010iL..LY20,30197903-197910

23921SUPPORT, FUEL FILTER

main23921-48010i2J..JY30197903-198308

main90461-08345i12R,5R..RY20,3#197903-198004

main90461-10537i12R,5R..RY20,3#198004-198507

9046400065

main90464-00065

9046400184

main90464-00184

9161161020

main91611-61020

9161161032

main91611-61032

9471277121

main94712-77121

21 parts on this diagram · 5 diagrams in section
