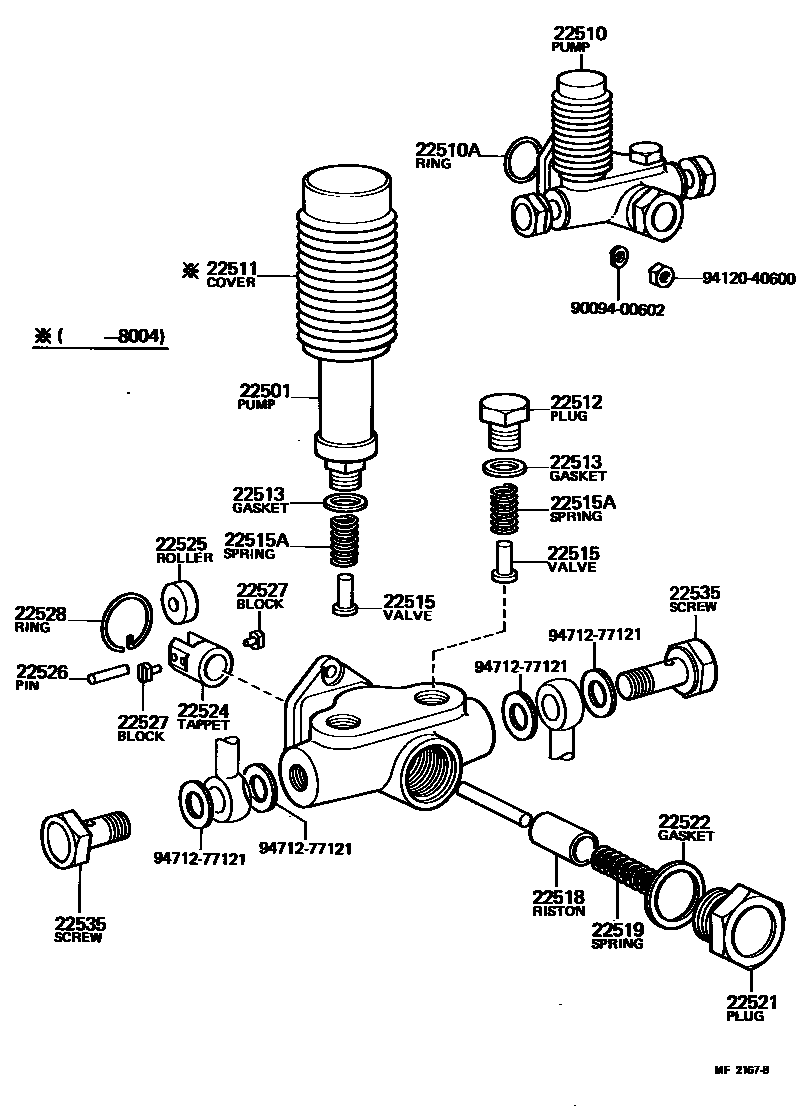

FUEL FEED PUMP
22501PUMP SUB-ASSY, PRIMING
22510PUMP ASSY, FUEL FEED
22510ARING, O(FOR FUEL FEED PUMP)
22511COVER, PRIMING PUMP
22512PLUG, FEED PUMP CHECK VALVE CHAMBER
22513GASKET, CHECK VALVE CHAMBER PLUG
22515VALVE, FEED PUMP CHECK
sub22515-77021
22515ASPRING, FEED PUMP CHECK VALVE
22518PISTON, FEED PUMP
BLUE,BLUE
22519SPRING, FEED PUMP PISTON
22521PLUG, FEED PUMP PISTON CHAMBER
sub22521-77021
22522GASKET, FEED PUMP PISTON PLUG
sub90099-01432
22524TAPPET, FEED PUMP
22525ROLLER, FEED PUMP TAPPET
22526PIN, FEED PUMP TAPPET ROLLER
22527BLOCK, FEED PUMP TAPPET SLIDING
22528RING, FEED PUMP TAPPET SNAP
22535SCREW, FUEL PIPE FOLLOW
9009400602
main90094-00602
9412040600
main94120-40600
9471277121
main94712-77121
21 parts on this diagram · 1 diagram in section
