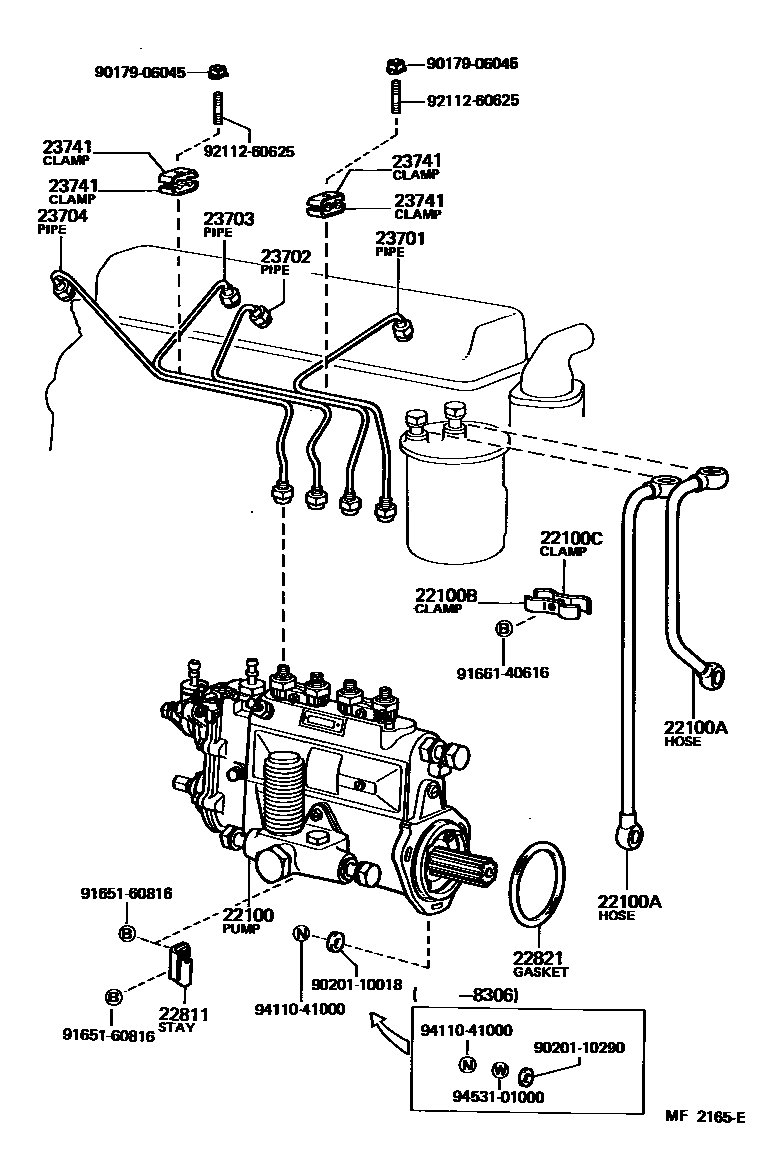

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-48072i2J..JY30197903-198308

main22100-48101i2J..JY30197903-198308

HAC

main22100-54021iL..LY20,30197903-198004

main22100-54060iL..LY20,30197909-198004

HONG KONG SPEC

main22100-54060iL..LY20,30198004-198201

main22100-54131iL..LY30198201-198308

sub22100-54132

sub90099-05166

main22100-54310i2L..LY31198308-198507

sub22100-54340

main22100-54530i2L..LY31..ARL198404-198507

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-48010i2J..JY30197903-198308

FEED PUMP

main23802-48010i2J..JY30197903-198308

INJECTION PUMP

main95332-08030iL..LY20,30197903-197904

L=300(*H,L=240)

sub95333-08030

main95332-08030iL,2L..LY20,3#197904-198507

L=300

sub95333-08030

22100BCLAMP, FUEL HOSE, NO.1

main23841-56010i2J..JY30197903-198308

22100CCLAMP, FUEL HOSE, NO.2

main23842-56010i2J..JY30197903-198308

22811STAY, INJECTION PUMP, NO.1

main22811-48020i2J..JY30197903-198308

main22811-54010iL..LY20,30197903-198201

main22811-54030iL..LY30198201-198207

main22811-54040iL,2L..LY3#198207-198507

sub22811-54041

22821GASKET, INJECTION PUMP

main90301-77001i2J..JY30197903-198308

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-48011i2J..JY30197903-198308

main23701-54011iL..LY20,30197903-198004

main23701-54030iL..LY20,30198004-198201

main23701-54030iL..LY20,30197909-198004

HONG KONG SPEC

main23701-54051iL,2L..LY3#198201-198311

main23701-54082i2L..LY31198311-198507

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-48011i2J..JY30197903-198308

main23702-54010iL..LY20,30197903-198004

main23702-54030iL..LY20,30197909-198004

HONG KONG SPEC

main23702-54030iL..LY20,30198004-198201

main23702-54050iL,2L..LY3#198201-198311

main23702-54081i2L..LY31198311-198507

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-48011i2J..JY30197903-198308

main23703-54011iL..LY20,30197903-198004

main23703-54030iL..LY20,30198004-198201

main23703-54030iL..LY20,30197909-198004

HONG KONG SPEC

main23703-54050iL,2L..LY3#198201-198507

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-48011i2J..JY30197903-198308

main23704-54010iL..LY20,30197903-198004

main23704-54030iL..LY20,30197909-198004

HONG KONG SPEC

main23704-54030iL..LY20,30198004-198201

main23704-54050iL,2L..LY3#198201-198507

23741CLAMP, INJECTION PIPE, NO.1

main23741-48010i2J..JY30198012-198308

main23741-56010iL..LY20,30197903-198507

9017906045

main90179-06045

9020110018

main90201-10018

9020110290

main90201-10290

9165160816

main91651-60816

9166140616

main91661-40616

9211260625

main92112-60625

9411041000

main94110-41000

9453101000

main94531-01000

19 parts on this diagram · 2 diagrams in section
