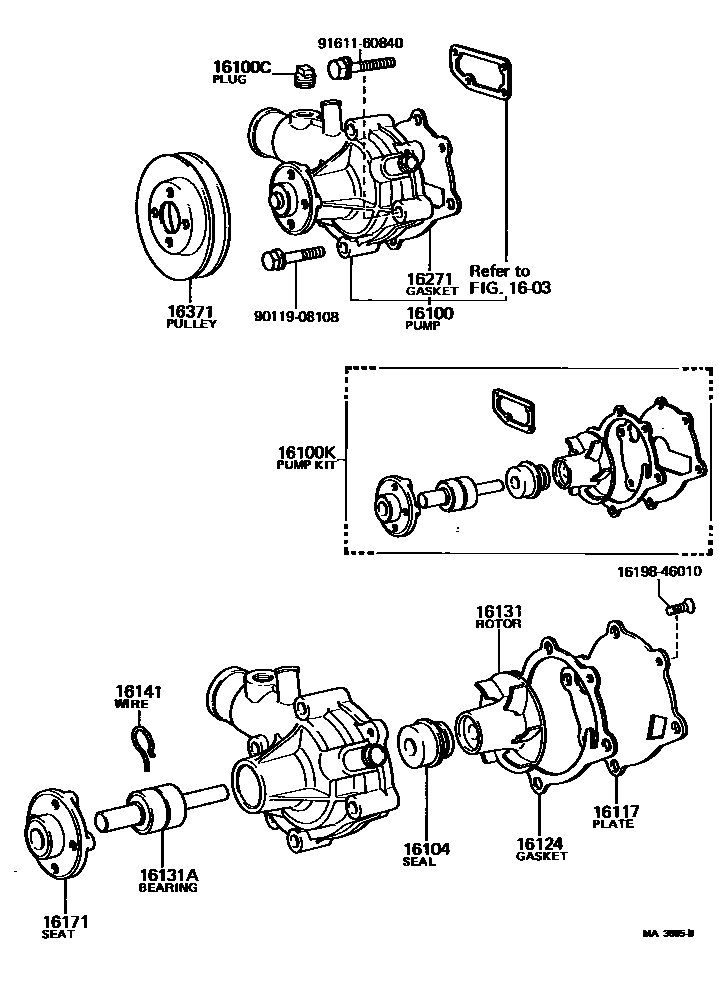

WATER PUMP

0001 1 0002 1 0003 1 0004 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39116i12R..RY20,30197903-198507

main16100-49207i2J..JY30197903-197904

sub16100-49208

main16100-49208i2J..JY30197904-198308

main16100-49217i2J..JY30197903-197904

W/O THERMOSTAT

sub16100-49218

main16100-49218i2J..JY30197904-198308

W/O THERMOSTAT

main16100-49415i5R..RY31..GEN197903-198308

sub16100-49416

main16100-49425i5R..RY31..ARL198005-198507

CAST IRON TYPE

sub16100-49426

main16100-59047iL..LY20,30197903-198008

sub16100-59049

main16100-59049iL..LY20,30198008-198105

sub16100-59125

main16100-59125iL..LY20,30198105-198108

sub16100-59215

main16100-59126iL..LY20,30198108-198210

sub16100-59127

main16100-59127iL..LY30198210-198308

sub16100-59128

main16100-59137i2L..LY31198308-198507

sub16100-59138

16100CPLUG, W/HEAD TAPER SCREW

main90345-54002i2J..JY30197903-198012

W/O HEATER

main90345-54004i12R,5R..RY20,3#197903-198101

W/O HEATER

sub90345-54005

main90345-54005i2J..JY30198012-198507

W/O HEATER

16100KPUMP KIT, WATER

main04161-31023i12R..RY20,30197903-198507

main04161-48011i2J..JY30197903-198308

16104SEAL SET, WATER PUMP

main16104-15020i12R,5R..RY20,3#198410-198507

main16104-41110i12R,5R..RY20,3#197903-198308

sub16104-41111

main16104-41111i12R,5R..RY20,3#197911-198410

sub16104-15020

16117PLATE, WATER PUMP

main16117-31031i12R..RY20,30197903-198507

main16117-44010i5R..RY31197903-198507

main16117-48010i2J..JY30197903-198308

16124GASKET, WATER PUMP COVER

main16124-48010i2J..JY30197903-198308

16131ROTOR, WATER PUMP

main16131-31031i12R..RY20,30197903-198507

main16131-44070i5R..RY31197903-198507

main16131-48013i2J..JY30197903-198308

16131ABEARING, WATER PUMP

main90369-30003i12R..RY20,30197903-198507

WPB16124BR-3-R

sub90369-30022

main90369-30028i2J..JY30197903-198308

main90369-30063i5R..RY31197903-198507

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i2J..JY30197903-198507

16171SEAT, WATER PUMP PULLEY

main16171-24031i12R,5R..RY20,3#197903-198507

main16171-47010i2J..JY30197903-198308

main16171-54010iL..LY20,30197903-198108

main16171-54011iL,2L..LY20,3#198108-198507

16271GASKET, WATER PUMP

main16271-31010i12R..RY20,30197903-198507

main16271-44010i5R..RY31197903-198101

sub16271-44020

main16271-44020i5R..RY31198101-198507

sub16271-44021

main16271-48010i2J..JY30197903-198308

sub16271-48011

main16271-54010iL..LY20,30197903-198008

sub16271-54011

main16271-54011iL..LY20,30198008-198105

sub16271-54012

main16271-54012iL,2L..LY20,3#198105-198507

sub16271-54013

16371PULLEY, FAN

main16371-31022i12R..RY20,30197903-198507

main16371-44010i5R..RY31197903-198507

main16371-46011i2J..JY30197903-198308

main16371-54010iL..LY20,30197903-198308

main16371-54020i2L..LY31198308-198507

1619846010BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-46010

9011908108

main90119-08108

9161160840

main91611-60840

16 parts on this diagram · 4 diagrams in section
