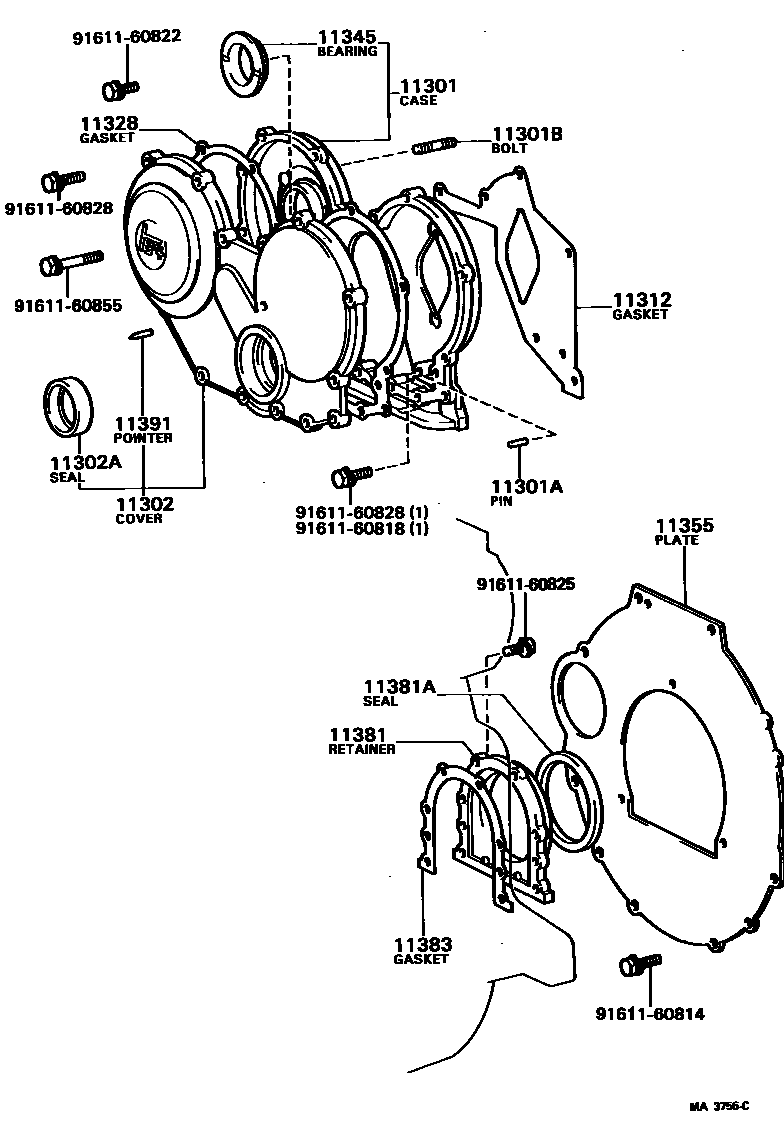

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-48013i2J..JY30197903-198105

main11301-48014i2J..JY30198105-198308

main11311-54010iL..LY20,30197903-198008

main11311-54020iL..LY20,30198008-198105

sub11320-54030

sub15104-54022

sub15104-54032

sub15104-54042

sub15104-54051

sub15149-54011

sub90179-08040

sub92122-40816

main11311-54021iL..LY20,30198105-198202

sub11320-54022

sub15104-54022

sub15104-54032

sub15104-54042

sub15104-54051

sub15149-54011

sub90179-08040

sub92122-40816

main11311-54022iL,2L..LY3#198202-198507

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120×2i2J..JY30197903-198308

L=18,OD=8,L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-10134×3i2J..JY30197903-198308

L=39,S=10&20

main92132-60828×2iL,2L..LY20,3#197903-198507

L=28,S=16&16

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-48011i2J..JY30197903-198308

main11321-31040i12R..RY20,30197903-198507

main11321-44050i5R..RY31197903-198507

main11321-54011iL..LY20,30197903-198104

sub11321-54012

sub90950-01312

main11321-54013iL..LY20,30198104-198203

main11321-54014iL,2L..LY3#198203-198507

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38013i12R..RY20,30197903-198507

HTC3 38.5 58 11

main90311-45002i5R..RY31197905-198310

TC 45 68 12

main90311-45006i5R..RY31198310-198507

HTC 45 68 12

sub90311-45011

main90311-45069i5R..RY31197903-197905

TC3 45 68 12

main90311-50049i2J..JY30197903-198308

TC3 50 70 12

11312GASKET, FRONT END PLATE

main11312-31010i12R..RY20,30197903-198507

main11312-44011i5R..RY31197903-198507

main11312-48011i2J..JY30197903-198308

sub11312-48012

main11312-54010iL..LY20,30197903-198008

main11312-54011iL..LY20,30198008-198105

sub11312-54030

main11312-54012iL..LY20,30198105-198201

main11312-54013iL,2L..LY3#198201-198507

sub11312-54030

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31010i12R..RY20,30197903-198507

main11328-44010i5R..RY31197903-198507

main11328-48010i2J..JY30197903-198308

sub11328-48011

main11328-54010iL,2L..LY20,3#197903-198507

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010i2J..JY30197903-198308

11355PLATE, REAR END

main11355-44011i5R..RY31197903-198507

main11355-48020i2J..JY30197903-198308

main11355-54010iL..LY20,30197903-197909

main11355-54030iL,2L..LY20,3#197909-198507

11381RETAINER, ENGINE REAR OIL SEAL

main11381-44011i5R..RY31197903-198507

main11381-47012i2J..JY30197903-198105

main11381-54010iL,2L..LY20,3#197903-198507

main11381-68010i2J..JY30198105-198308

11381ASEAL, ENGINE REAR OIL

main90311-80002i5R..RY31197903-198507

HTCY 80 100 12 13.5

main90311-85001iL,2L..LY20,3#197903-198402

HTC 85 105 13

sub90311-85006

main90311-85003i2L..LY31198402-198507

HTC 85 105 10

sub90311-85006

main90311-95001i2J..JY30197903-198308

HTC 95 115 12

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-44010i5R..RY31197903-198507

main11383-47010i2J..JY30197903-198308

sub11383-68020

main11383-54010iL,2L..LY20,3#197903-198507

sub11383-54020

11391POINTER, TIMING

main11391-31021i12R..RY20,30197903-198507

main11391-44020i5R..RY31197903-198507

main11391-46010i2J..JY30197903-198308

main11391-54010iL,2L..LY20,3#197903-198507

9161160814

main91611-60814

9161160818

main91611-60818

9161160822

main91611-60822

9161160825

main91611-60825

9161160828

main91611-60828

9161160855

main91611-60855

19 parts on this diagram · 4 diagrams in section
