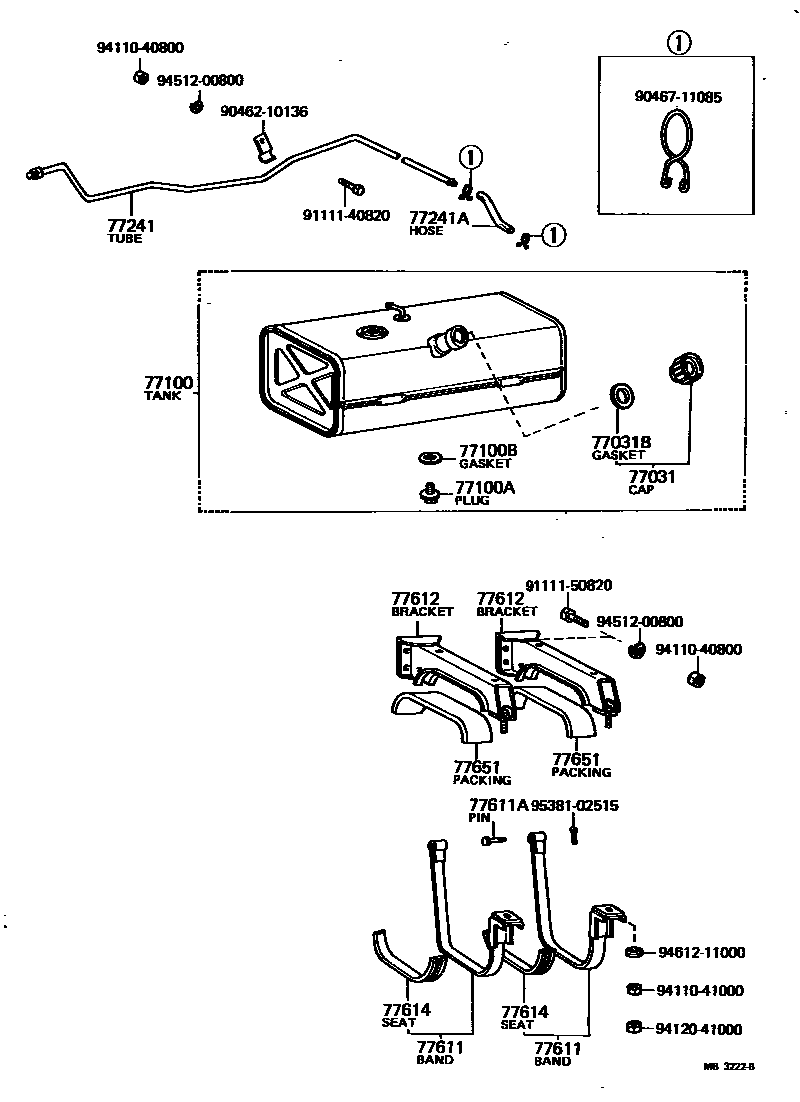

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1AUSTRALIA

77031CAP ASSY, FUEL TANK

main77031-14010iRY1#197210-197902

W/KEY

main77031-36010iJY16197611-197902

main77031-95010iJY16197210-197611

W/KEY

sub69058-95210

main77310-12041iRY16197207-197304

main77310-14010iRY1#197304-197611

main77310-25020iJY16197207-197304

sub77310-36020

main77310-35010iRY10,12197109-197304

main77310-36020iJY16197304-197611

77031BGASKET (FOR FUEL TANK CAP)

main77316-12040iJY16,RY16197207-197902

main77316-20010iRY10,12197304-197902

main90430-40059iRY10,12197109-197304

77100TANK ASSY, FUEL

main77001-25902iRY10197408-197902

main77001-25904iRY12197408-197902

main77001-25905iRY16..RHD197504-197902

FOR AUSTRALIA

main77001-25906iJY16,RY16197408-197902

main77100-25050iRY10197109-197304

main77100-25060iRY12197109-197304

main77100-25090iJY16197207-197408

main77100-25100iRY16197207-197408

main77100-25110iRY10197304-197408

main77100-25120iRY12197304-197307

sub77100-25121

sub95331-08018

main77100-25121iRY12197307-197408

sub77001-25904

77100APLUG(FOR FUEL TANK)

main90105-12018iJY16,RY1#197109-197902

77100BGASKET(FOR FUEL TANK)

main90430-12038iJY16,RY1#197109-197706

main90430-12245iJY16,RY1#197706-197902

77241TUBE, FUEL MAIN, NO.1

main77251-25040iRY10,12197109-197304

main77251-25041iRY10,12197304-197511

main77251-25042iRY10,12197511-197902

main77251-25050iJY16197207-197708

main77251-25060iRY16197207-197902

main77251-25091iJY16197708-197902

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95331-08018iJY16197708-197902

*H,L=180

sub95332-08018

main95331-08019iJY16197207-197708

*H,L=190

sub95332-08020

77611BAND, FUEL TANK

main77601-25070iRY10,12197109-197304

main77601-25080iJY16,RY16197207-197902

77611APIN (FOR FUEL TANK BAND)

main77629-25010iJY16,RY16197207-197902

main90240-08080iRY10,12197109-197304

77612BRACKET SUB-ASSY, FUEL TANK

main77602-25010iRY10,12197109-197304

main77602-25031iJY16,RY16197207-197902

77614SEAT, FUEL TANK BAND

main77614-35010iJY16,RY1#197109-197902

77651PACKING, FUEL TANK BRACKET

main77651-25040iJY16,RY16197207-197902

main77651-35010iRY10,12197109-197304

9046210136

main90462-10136

9046711085

main90467-11085

9111140820

main91111-40820

9111150820

main91111-50820

9411040800

main94110-40800

9411041000

main94110-41000

9412041000

main94120-41000

9451200800

main94512-00800

9461211000

main94612-11000

9538102515

main95381-02515

22 parts on this diagram · 4 diagrams in section
