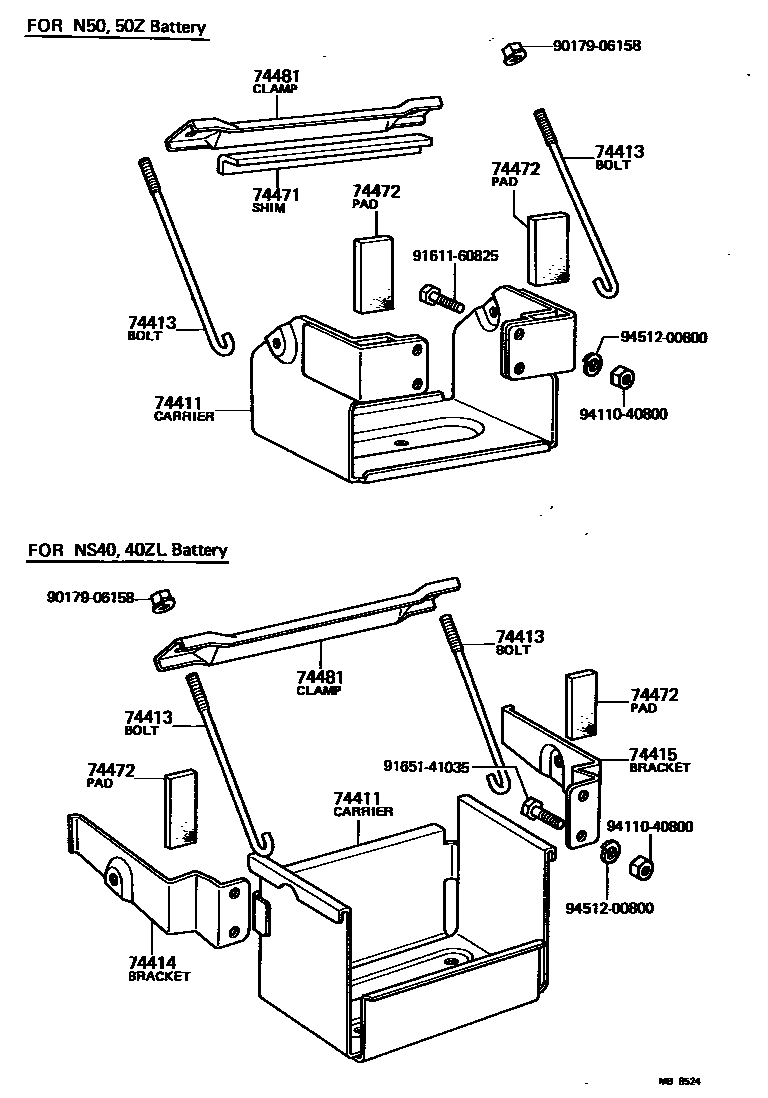

BATTERY CARRIER

0001 1 0002 1

74411CARRIER, BATTERY

main74411-25020iRY1#197109-197902

N50

main74421-25010iRY1#197109-197902

NS40ZL

main74421-36031iJY16197207-197902

N70Z

sub74421-36080

main74421-36040iJY16197207-197902

N100Z

74413BOLT, BATTERY CLAMP

main74451-25020iRY1#197109-197902

main90101-08133iJY16197207-197902

main90101-08223iJY16197207-197902

N70Z

74414BRACKET, BATTERY, FR

main74401-36011iJY16197207-197902

12V.N50, 50Z,70,100Z

main74401-36040iJY16197207-197902

24V.N70Z

main74411-25010iRY1#197109-197611

12V.NS40ZL

sub74411-25011

main74411-25011iRY1#197611-197902

12V.NS40ZAL

74415BRACKET, BATTERY, REAR

main74402-36011iJY16197207-197902

12V.N50,50Z,100Z

main74402-36030iJY16197207-197902

24V.N70Z

main74412-25010iRY1#197109-197611

12V.NS40ZL

sub74412-25011

main74412-25011iRY1#197611-197902

12V.NS40ZAL

74471SHIM, BATTERY SET ANGLE

main74471-35010iRY1#197109-197902

N50

74472PAD, BATTERY SIDE

main74472-25010iRY1#197109-197902

54X20

main74472-25020iRY1#197109-197902

70X40

74481CLAMP, BATTERY HOLD DOWN

main74413-36010iRY1#197109-197902

N50

main74453-25020iRY1#197109-197902

NS40ZL

sub74453-25080

9017906158

main90179-06158

9161160825

main91611-60825

9165141035

main91651-41035

9411040800

main94110-40800

9451200800

main94512-00800

9451200808

main94512-00808

13 parts on this diagram · 2 diagrams in section
