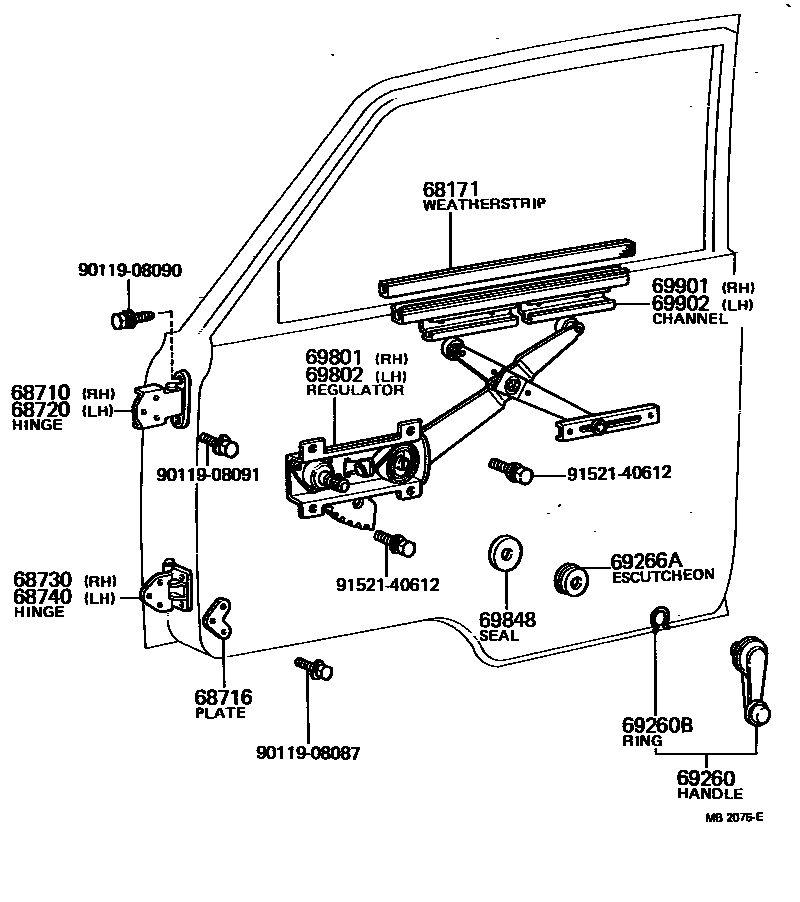

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69981-95700iJY16,RY1#197109-197902

sub69981-95600

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95011iJY16,RY1#197109-197902

68716PLATE, FRONT DOOR HINGE, LOWER

main68716-95011iJY16,RY1#197109-197902

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-95011iJY16,RY1#197109-197902

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-95011iJY16,RY1#197109-197902

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-95011iJY16,RY1#197109-197902

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10030iRY1#197109-197204

sub69260-10040

main69260-95402iJY16,RY1#197204-197603

main69260-95403iJY16,RY1#197603-197902

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iJY16,RY1#197109-197212

sub90520-01274

main90520-01274iJY16,RY1#197212-197902

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010iJY16,RY1#197109-197902

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95016iJY16,RY1#197109-197710

sub69810-95017

main69810-95017iJY16,RY1#197710-197902

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95016iJY16,RY1#197109-197710

sub69820-95017

main69820-95017iJY16,RY1#197710-197902

69848SEAL, WINDOW REGULATOR HOLE

main90303-12052iJY16,RY1#197109-197902

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95012iJY16,RY1#197109-197710

sub69901-95013

main69901-95013iJY16,RY1#197710-197902

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95012iJY16,RY1#197109-197710

sub69901-95013

main69901-95013iJY16,RY1#197710-197902

9011908087

main90119-08087

9011908091

main90119-08091

9152140612

main91521-40612

9811908090

main98119-08090

18 parts on this diagram · 1 diagram in section
