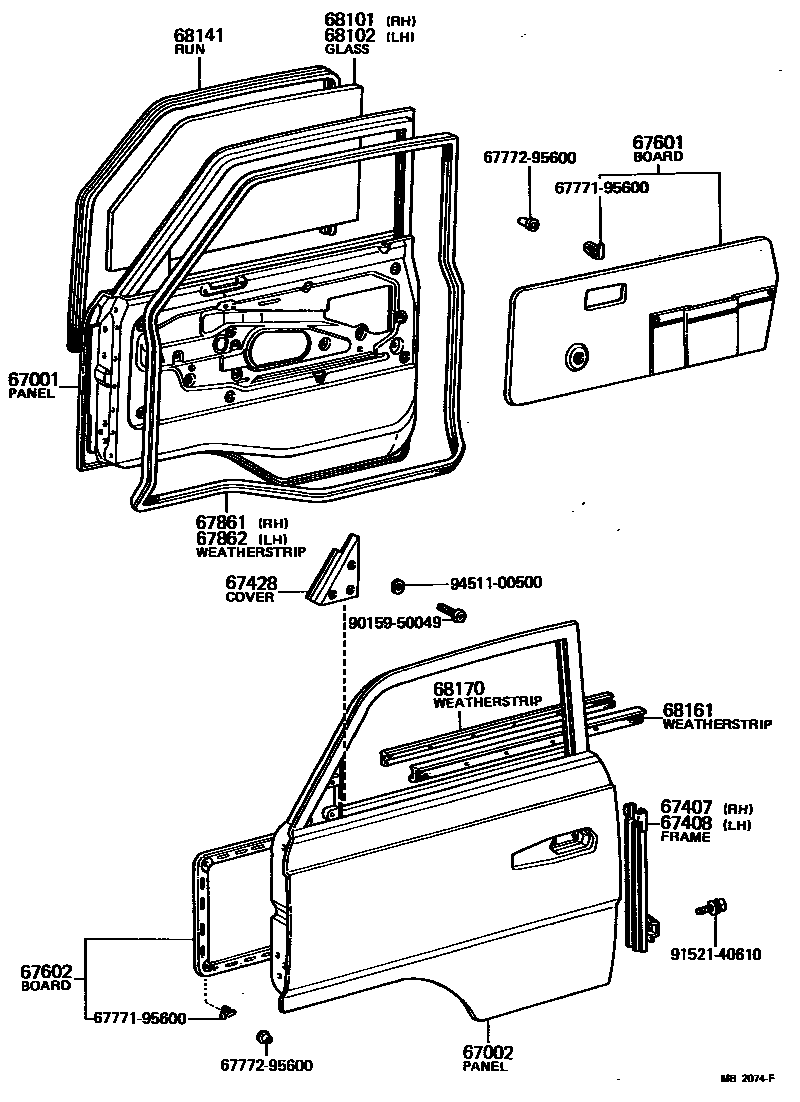

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67110-95032iJY16,RY1#..RHD197109-197902

main67110-95033iJY16,RY1#..LHD197109-197611

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67120-95037iJY16,RY1#..RHD197109-197611

main67120-95038iJY16,RY1#197109-197902

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67507-95010iJY16,RY1#197109-197902

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67508-95010iJY16,RY1#197109-197902

67428COVER, FRONT DOOR WINDOW CORNER

main67428-95010iJY16,RY1#..RHD197109-197902

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95011-01iRY1#197109-197203

BLACK,BLACK

sub67610-95011¥3,510

main67610-95012-01iJY16,RY1#197203-197902

BLACK,BLACK

sub67610-95012

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95011-01iJY16,RY1#197109-197902

BLACK,BLACK

sub67620-95011¥3,510

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95012iJY16,RY1#¥7,300197109-197902

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95012iJY16,RY1#¥7,300197109-197902

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95012iJY16,RY1#¥6,200197109-197902

TP.T=4.0

sub68111-95013¥10,800

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68111-95012iJY16,RY1#¥6,200197109-197902

TP.T=4.0

sub68111-95013¥10,800

68141RUN, FRONT DOOR GLASS

main68141-95010iJY16,RY1#¥3,430197109-197211

sub68141-95011¥3,430

main68141-95011iJY16,RY1#¥3,430197211-197902

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68107-95012iJY16,RY1#¥2,130197109-197607

sub68160-95010¥2,090

main68160-95010iJY16,RY1#¥2,090197607-197902

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68105-95012iJY16,RY1#¥2,090197404-197607

sub68160-95010¥2,090

main68107-95012iJY16,RY1#¥2,130197109-197404

sub68160-95010¥2,090

main68160-95010iJY16,RY1#¥2,090197607-197902

6777195600WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95600¥250

6777295600WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95600¥210

9015950049

main90159-50049¥120

9152140610

main91521-40610¥110

9451100500

main94511-00500¥170

19 parts on this diagram · 1 diagram in section
