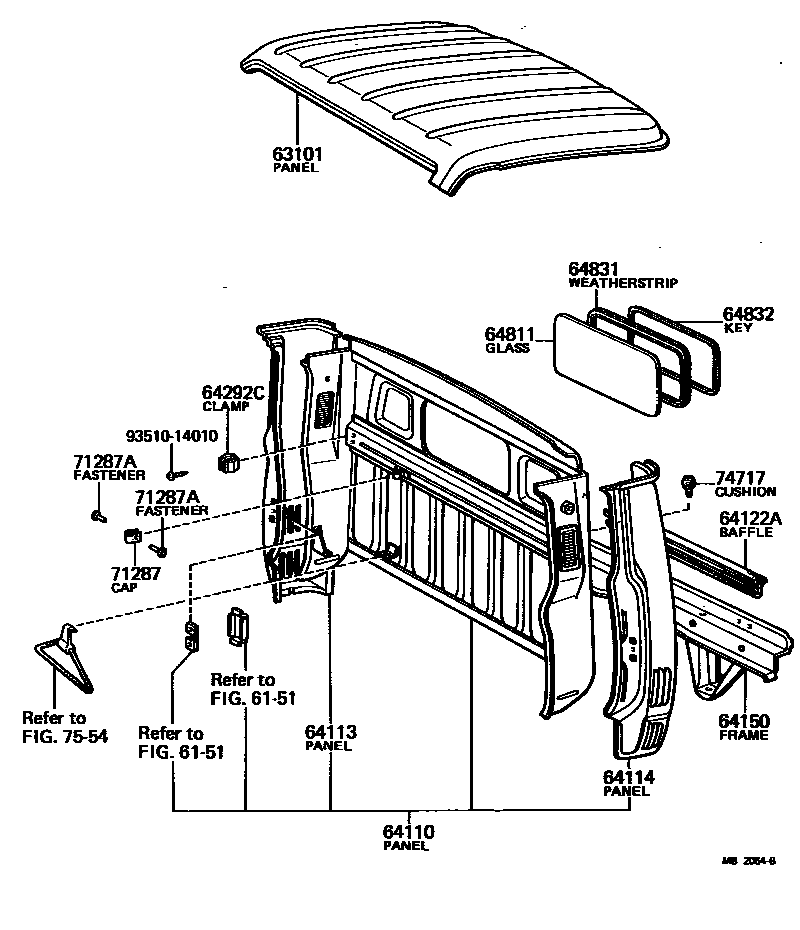

ROOF PANEL & BACK PANEL

6151

63101PANEL SUB-ASSY, ROOF

main63111-95012iJY16,RY1#197109-197902

64110PANEL ASSY, FRONT BODY BACK

main64100-95020iRY1#..RHD197109-197902

main64100-95021iRY1#..LHD197109-197605

sub64100-95020

main64100-95024iJY16..RHD197309-197902

main64100-95025iJY16..LHD197309-197605

main64100-95026iJY16..LHD197605-197902

main64100-95027iRY1#..LHD197605-197902

64113PANEL, BACK CORNER, OUTER RH

main64113-95011iJY16,RY1#197109-197902

64114PANEL, BACK CORNER, OUTER LH

main64114-95011iJY16,RY1#197109-197902

64122ABAFFLE, DUST REAR BODY

main64122-95011iJY16,RY1#197109-197902

64150FRAME ASSY, BACK

main64150-95016iJY16,RY1#197109-197902

main64150-95021iRY16..RHD197305-197902

FOR AUSTRALIA

main64150-95023iJY16,RY1#..LHD197605-197902

64292CCLAMP, JACK HANDLE

main74716-95010iJY16,RY1#197109-197902

64811GLASS, BACK WINDOW

main64811-95010iJY16,RY1#197109-197902

TP.T=3.2

sub64811-95015

main64811-95015iJY16,RY1#197109-197902

*TEM,T=4.0,TP.T=4.0

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95010iJY16,RY1#197109-197902

sub64831-95015

main64831-95015iJY16,RY1#197109-197902

FOR T=4.0 GLASS

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iJY16,RY1#197109-197902

sub64832-95013

71287CAP, PASSENGER SEAT BACK FRAME STOP

main71287-95111iJY16,RY1#..LHD197605-197902

sub71287-95110

71287AFASTENER, LEATHER(FOR PASSENER SEATBACK FRAME STOP CAP)

main90530-03007iJY16,RY1#..LHD197605-197902

L=10

main90530-03008iJY16,RY1#..LHD197605-197902

L=4.5

74717CUSHION (FOR JACK HANDLE)

main90541-10052iJY16,RY1#197109-197902

7554

9351014010

main93510-14010

16 parts on this diagram · 1 diagram in section
