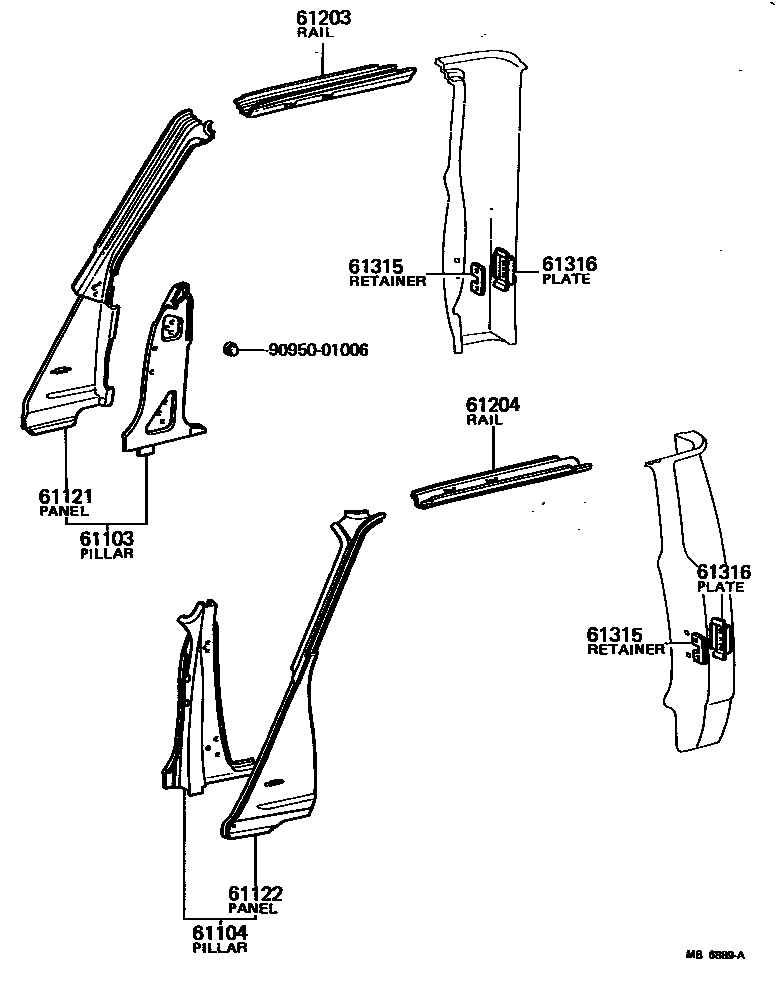

SIDE MEMBER

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61110-95018iJY16,RY1#..RHD197109-197309

sub61110-95022

main61110-95019iJY16,RY1#..LHD197109-197902

main61110-95022iJY16,RY1#..RHD197309-197902

sub61110-95023

main61110-95022iRY16..RHD197305-197309

FOR AUSTRALIA

sub61110-95023

main61110-95023iJY16..RHD197704-197902

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61120-95018iJY16,RY1#..RHD197109-197902

main61120-95019iRY1#..LHD197109-197902

sub61120-95023

main61120-95023iJY16..LHD197704-197902

61121PANEL, COWL SIDE, OUTER RH

main61111-95010iJY16,RY1#197109-197902

61122PANEL, COWL SIDE, OUTER LH

main61112-95010iJY16,RY1#197109-197902

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61211-95012iJY16,RY1#197109-197902

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61202-95011iJY16,RY1#197109-197902

61315RETAINER, DOOR LOCK STRIKER PLATE

main61553-95012iJY16,RY1#197109-197902

61316PLATE, DOOR LOCK STRIKER SUPPORT

main61325-95010iJY16,RY1#197109-197902

9095001006

main90950-01006

9 parts on this diagram · 1 diagram in section
