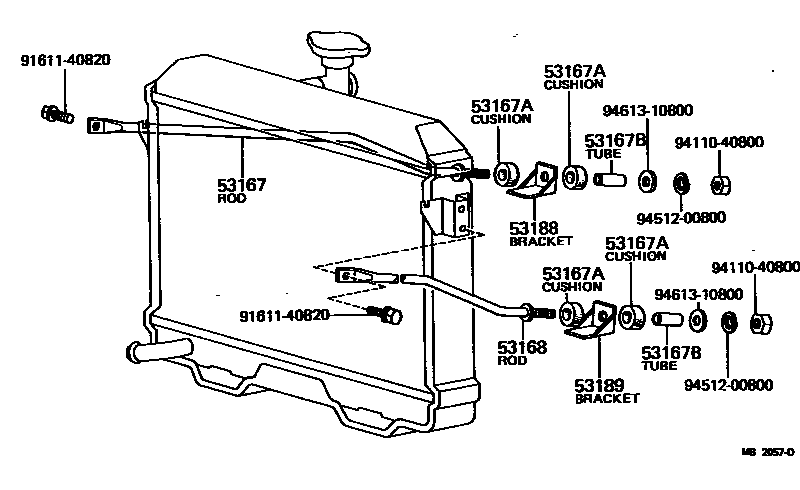

RADIATOR SUPPORT & WIND GUIDE

53167ROD, RADIATOR BRACE, RH

main53167-25010iRY10,12197109-197902

main53167-25020iJY16,RY16197207-197902

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022iJY16,RY1#197109-197902

T=6

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043iJY16,RY1#197109-197902

53168ROD, RADIATOR BRACE, LH

main53167-25010iRY10,12197109-197902

main53167-25020iRY16197207-197902

main53167-25030iJY16..LHD197207-197902

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-25010iRY10,12197109-197902

main53168-26010iJY16,RY16197207-197902

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-26010iJY16,RY16197207-197902

main53189-25010iRY10,12197109-197902

9161140820

main91611-40820

9411040800

main94110-40800

9451200800

main94512-00800

9461310800

main94613-10800

10 parts on this diagram · 1 diagram in section
