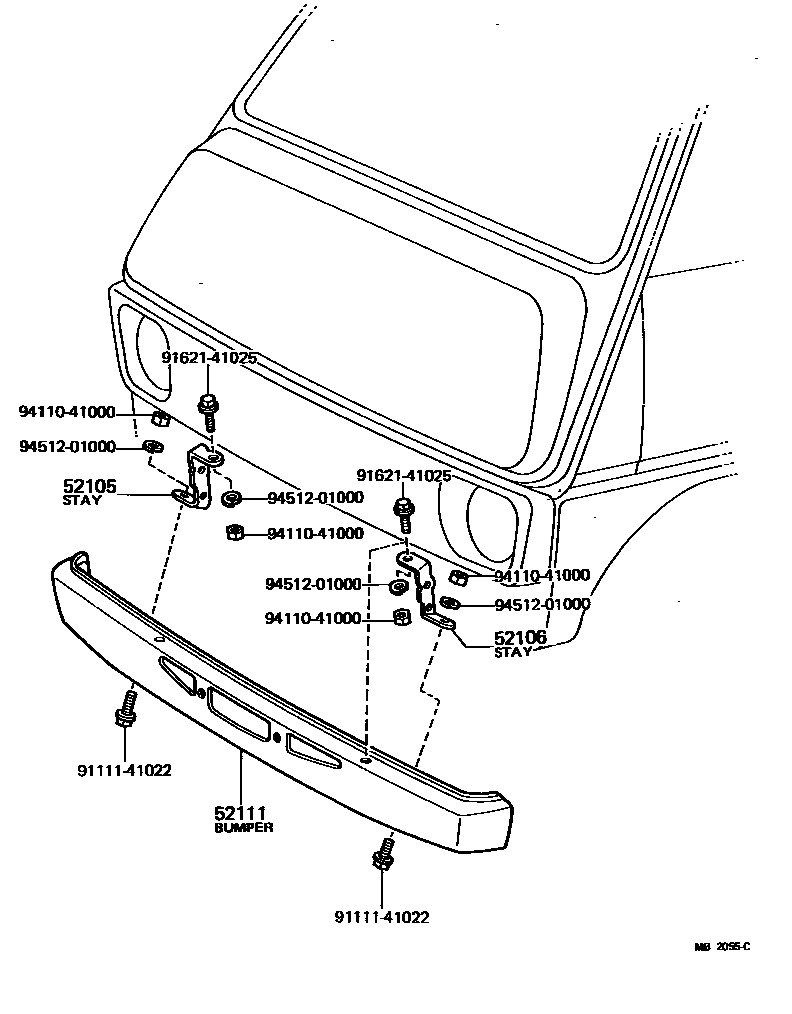

FRONT BUMPER & BUMPER STAY

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52141-25020iRY10,12197109-197902

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52142-25020iRY10,12197109-197902

52111BUMPER ASSY, FRONT

main52110-95010iJY16,RY1#197109-197902

9111141022

main91111-41022

9162141025

main91621-41025

9411041000

main94110-41000

9451201000

main94512-01000

7 parts on this diagram · 1 diagram in section
