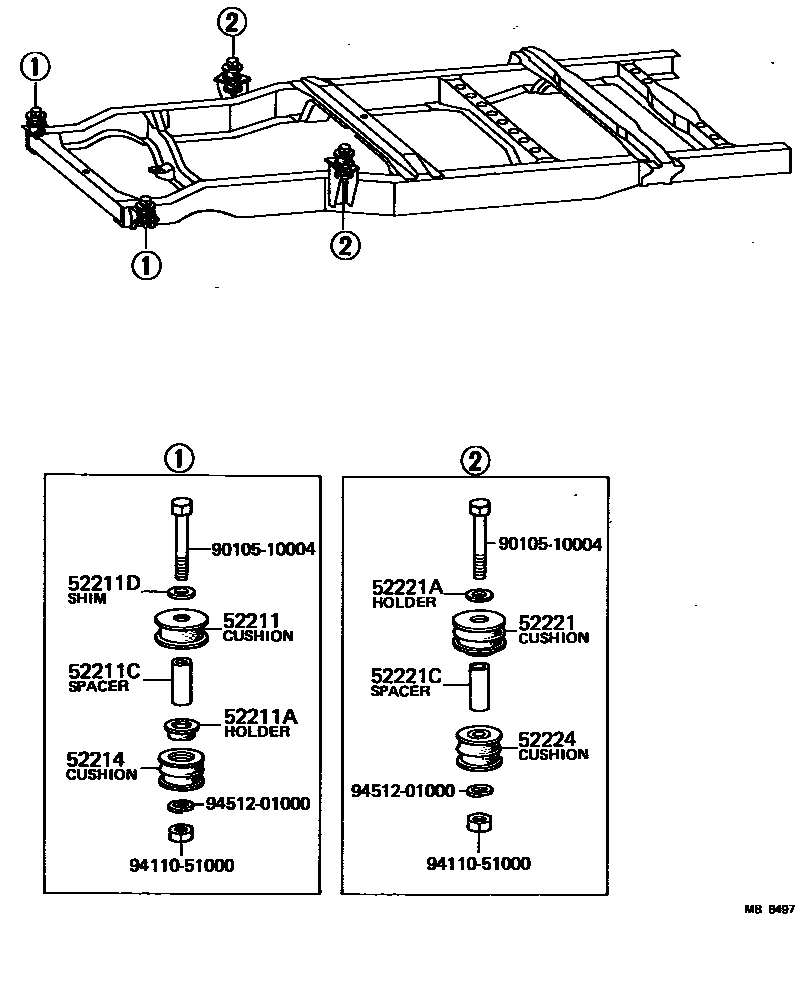

CAB MOUNTING & BODY MOUNTING

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52201-25010iJY16,RY1#197109-197708

main52201-25011iJY16,RY1#197708-197902

52211AHOLDER, BODY MOUNTING BOLT SPACER, NO.1

main52228-22010iJY16,RY1#197109-197509

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main90440-17124iJY16,RY1#197109-197902

52211DSHIM(FOR BODY MOUNTING NO.1 CUSHION)

main90201-10149iJY16,RY1#197109-197208

main90201-10320iJY16,RY1#197208-197902

52214CUSHION, BODY MOUNT, NO.1 LOWER

main52202-25010iJY16,RY1#197109-197708

main52202-25011iJY16,RY1#197708-197902

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52203-25010iJY16,RY1#197109-197708

main52203-25011iJY16,RY1#197708-197902

52221AHOLDER, BODY MOUNT BOLT SPACER, NO.2

main90201-10149iJY16,RY1#197109-197208

main90201-10320iJY16,RY1#197208-197902

52221CSPACER(FOR BODY MOUNT NO.2 CUSHION)

main90440-17124iJY16,RY1#197109-197902

52224CUSHION, BODY MOUNT, NO.2 LOWER

main52204-25010iJY16,RY1#197109-197708

main52204-25011iJY16,RY1#197708-197902

9010510004

main90105-10004

9411051000

main94110-51000

9451201000

main94512-01000

12 parts on this diagram · 1 diagram in section
