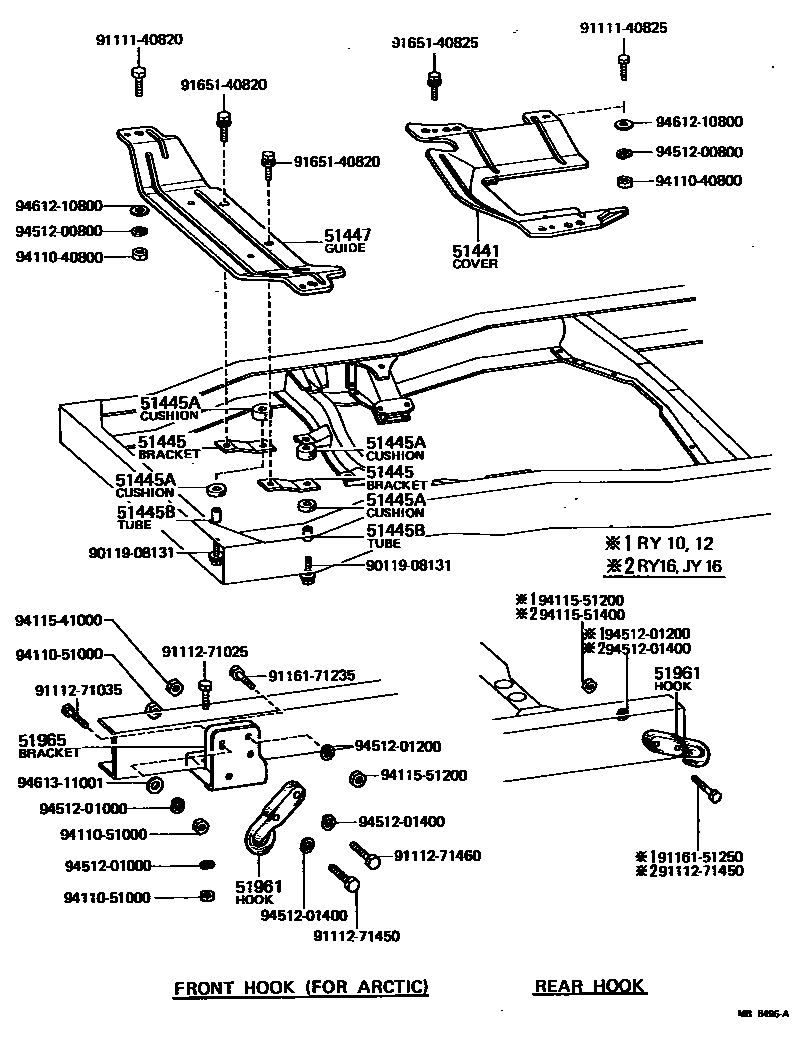

SUSPENSION CROSSMEMBER & UNDER COVER

51441COVER, ENGINE UNDER, NO.1

main51441-25080iRY10,12197109-197902

main51441-25100iJY16197207-197902

main51441-25110iRY16197207-197902

51445BRACKET, ENGINE UNDER COVER

main51445-25020iJY16,RY1#197109-197902

51445ACUSHION(FOR ENGINE UNDER COVER BRACKET)

main90540-10011iJY16,RY1#197109-197902

OD=28,T=14

main90540-10022iJY16,RY1#197109-197902

OD=22,T=6

51445BTUBE(FOR ENGINE UNDER COVER BRACKET)

main90440-11001iJY16,RY1#197401-197902

L=23.5

main90440-11042iJY16,RY1#197109-197401

L=22

51447GUIDE, ENGINE UNDER COVER AIR

main51447-25010iRY10,12197109-197902

main51447-25020iJY16,RY16197207-197902

51961HOOK, NO.1

main51961-36020iJY16,RY16197207-197902

main51961-60010iRY10,12197109-197902

51965BRACKET, HOOK SUPPORT, LOWER

main51965-25020iJY16,RY16..RHD197304-197902

ARCTIC

9011908131

main90119-08131

9111140820

main91111-40820

9111140825

main91111-40825

9111271025

main91112-71025

9111271035

main91112-71035

9111271450

main91112-71450

9111271460

main91112-71460

9116151250

main91161-51250

9116171235

main91161-71235

9165140820

main91651-40820

9165140825

main91651-40825

9411040800

main94110-40800

9411051000

main94110-51000

9411541000

main94115-41000

9411551200

main94115-51200

9411551400

main94115-51400

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9451201400

main94512-01400

9461210800

main94612-10800

9461311001

main94613-11001

29 parts on this diagram · 1 diagram in section
