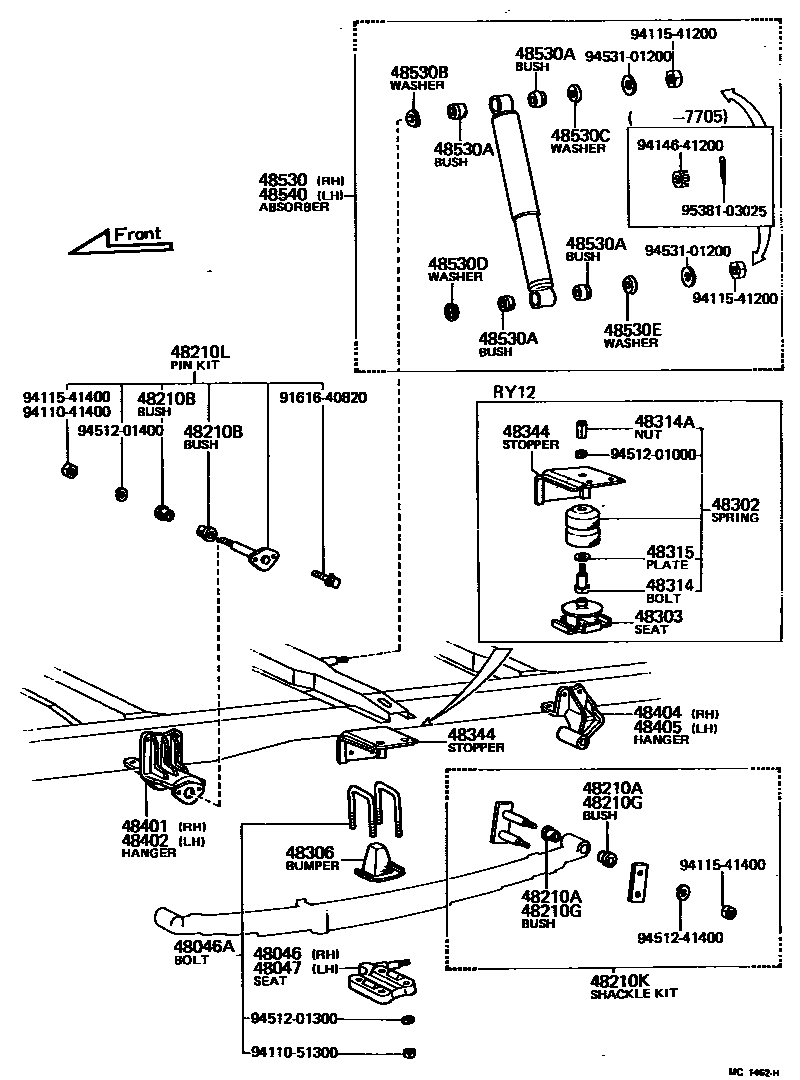

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-25030iRY10197109-197902

main48046-25040iJY16,RY12..15T197109-197902

main48046-36061iJY16,RY16..20T197207-197710

sub48046-36120

sub94115-41200

sub94531-01200

main48046-36120iJY16,RY16..20T197710-197902

sub48046-36121

48046ABOLT, U(FOR REAR SPRING)

main90118-13044iJY16,RY12..15T197109-197902

sub90117-13099

sub94110-51300

sub94512-01300

main90118-13097iRY10197109-197902

sub90117-13099

sub94110-51300

sub94512-01300

main90118-16060iJY16,RY16..T1..20T197207-197902

L=205

sub90118-16219

main90118-16062iJY16,RY16..T3..20T197207-197902

sub90118-16220

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-25030iRY10197109-197902

main48047-25040iJY16,RY12..15T197109-197902

main48047-36061iJY16,RY16..20T197207-197710

sub48047-36120

sub94115-41200

sub94531-01200

main48047-36120iJY16,RY16..20T197710-197902

sub48047-36121

48210SPRING ASSY, REAR RH

main48210-25070iRY10197109-197902

main48210-25090iRY12197109-197902

main48210-25101iJY16..15T197512-197902

main48210-25110iJY16,RY16..T3..20T197503-197902

main48210-36031iJY16,RY16..T3197207-197503

main48210-36041iJY16,RY16..T1197207-197503

sub48210-36042

main48210-36042iJY16,RY16..T1..20T197503-197902

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18025iJY16,RY1#197109-197902

48210BBUSH(FOR REAR SPRING PIN)

main90385-18025iJY16,RY1#197109-197902

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18025iJY16,RY1#197109-197902

48210KSHACKLE KIT, REAR SPRING

main04483-35020iRY10,12197109-197902

sub04483-35030

main04483-36010iJY16,RY16197207-197902

48210LPIN KIT, REAR SPRING

main04484-25010iRY10,12197109-197902

main04484-36010iJY16,RY16197207-197902

48302SPRING SUB-ASSY, HOLLOW

main48302-25901iRY12197109-197902

main48302-36010iJY16,RY16197207-197902

48303SEAT SUB-ASSY, HOLLOW SPRING

main48031-36010iJY16,RY16..20T197207-197902

main48303-25020iRY12197109-197902

main48303-25030iJY16..15T197512-197902

48306BUMPER SUB-ASSY, REAR SPRING

main48306-26010iRY10197109-197902

48314BOLT, HOLLOW SPRING SET

main48314-25010iRY12197109-197902

main48314-36010iJY16,RY16197207-197902

48314ANUT, HEXAGON(FOR HOLLOW SPRING SET)

main90170-10093iRY12197109-197902

48315PLATE, HOLLOW SPRING SET

main48315-25010iRY12197109-197902

main48315-36010iJY16,RY16197207-197902

48344STOPPER, BUMPER, REAR

main48301-36020iJY16,RY16197207-197902

main48311-25020iRY12197109-197902

main48344-25020iRY10197109-197902

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-25030iRY10,12197109-197902

main48414-36010iJY16,RY16197207-197503

main48414-36050iJY16,RY16197503-197902

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-25030iRY10,12197109-197902

main48414-36010iJY16,RY16197207-197503

main48414-36050iJY16,RY16197503-197902

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-25020iRY10,12197109-197902

main48416-36030iJY16,RY16197207-197902

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48417-25020iRY10,12197109-197902

main48417-36020iJY16,RY16197207-197902

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29195iRY10,12197109-197705

sub48531-29196

main48531-29196iRY10,12197705-197902

main48531-69015iJY16,RY16..20T197207-197705

sub48531-69016

main48531-69016iJY16,RY16..20T197705-197902

sub48531-69017

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iJY16,RY1#197109-197902

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iJY16,RY16197207-197902

main90948-03004iRY10,12197109-197902

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03003iJY16..15T197109-197902

main90948-03004iJY16,RY16..20T197207-197902

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03004iJY16,RY1#197109-197902

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03003iJY16,RY1#197109-197902

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29195iJY16..15T197109-197705

sub48531-29196

main48531-29196iRY10,12197705-197902

main48531-69015iJY16,RY16..20T197207-197705

sub48531-69016

main48531-69016iJY16,RY16..20T197705-197902

sub48531-69017

9161640820

main91616-40820

9411041400

main94110-41400

9411051300

main94110-51300

9411541200

main94115-41200

9411541400

main94115-41400

9414641200

main94146-41200

9451201000

main94512-01000

9451201300

main94512-01300

9451201400

main94512-01400

9451241400

main94512-41400

9453101200

main94531-01200

9538103025

main95381-03025

39 parts on this diagram · 6 diagrams in section
