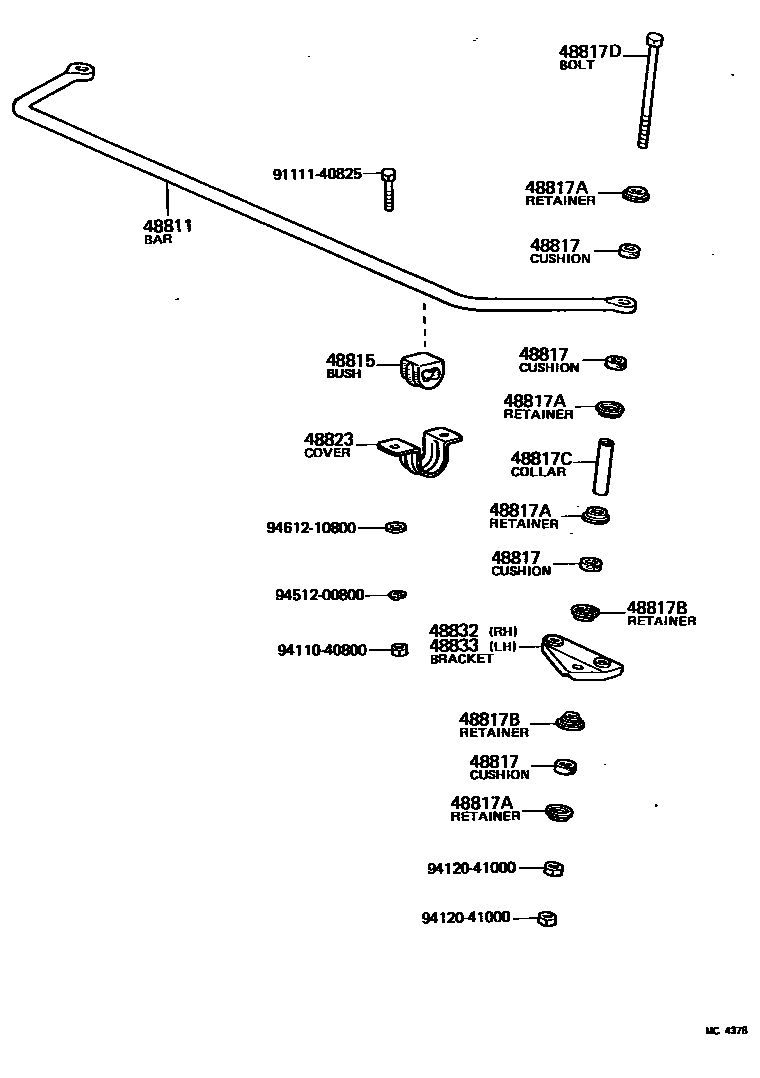

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48811BAR, STABILIZER, FRONT

main48811-25010iJY16,RY12,16197109-197902

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-25010iJY16,RY12,16197109-197902

48817CUSHION, FRONT STABILIZER

main90948-01002iJY16,RY12,16197109-197902

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iJY16,RY12,16197109-197902

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iJY16,RY12,16197109-197902

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14024iJY16,RY12,16197109-197902

48817DBOLT(FOR FRONT STABILIZER)

main90101-10259iJY16,RY12,16197109-197902

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-36011iJY16,RY12,16197109-197902

48832BRACKET, FRONT STABILIZER, LOWER RH

main48832-35010iJY16,RY12..15T197109-197902

main48832-36010iJY16,RY16..20T197207-197902

48833BRACKET, FRONT STABILIZER, LOWER LH

main48833-35010iJY16,RY12..15T197109-197902

main48833-36010iJY16,RY16..20T197207-197902

9111140825

main91111-40825

9411040800

main94110-40800

9412041000

main94120-41000

9451200800

main94512-00800

9461210800

main94612-10800

15 parts on this diagram · 6 diagrams in section
