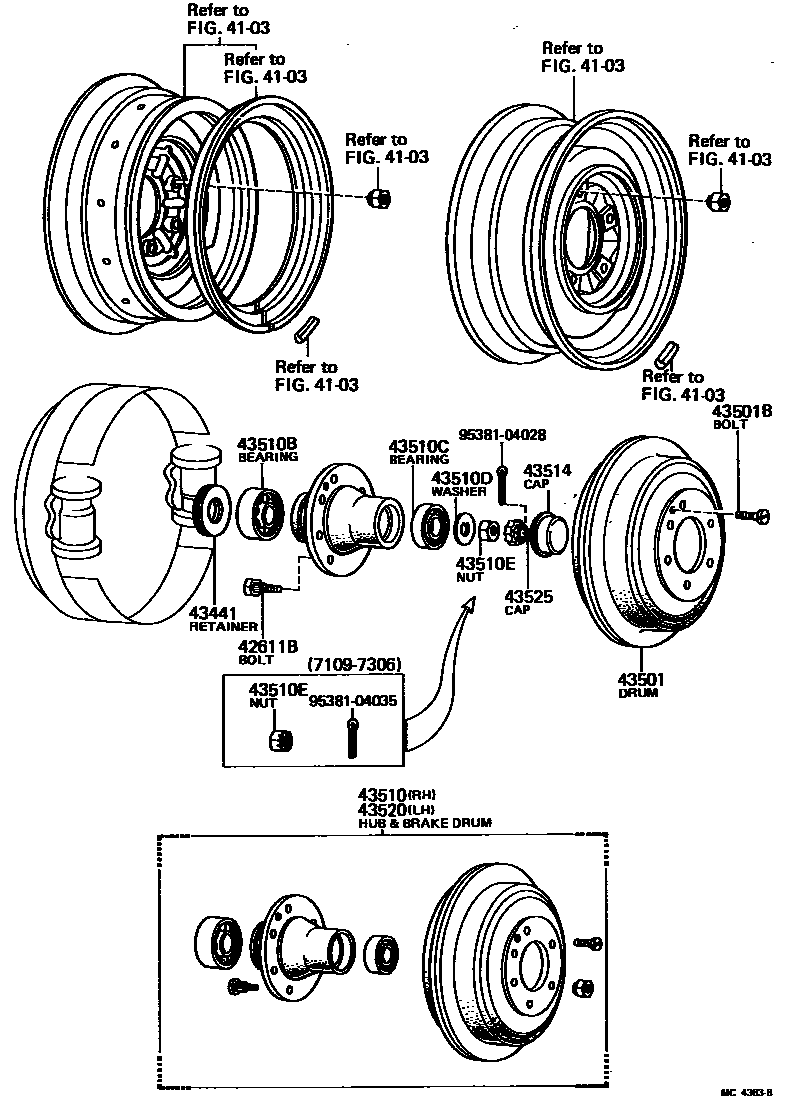

FRONT AXLE HUB

0001 1 0002 1 0003 1

4103

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024iJY16,RY16..20T197207-197902

FOR RH.

main90942-02025iJY16,RY16..20T197207-197902

FOR LH.

main90942-02030iJY16..15T197109-197902

sub90942-02077

43441RETAINER, STEERING KNUCKLE GREASE

main43441-25010iRY10,12197109-197902

main43441-36010iJY16,RY16..20T197207-197708

43501DRUM SUB-ASSY, FRONT BRAKE

main42431-25020iRY10,12197109-197902

main42431-36030iJY16,RY16..20T197207-197708

main43512-36020iJY16,RY16..20T197708-197902

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10015iJY16,RY1#197109-197902

sub90113-10035

main90113-10035iJY16,RY1#197504-197708

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-29015iRY10,12197109-197902

sub43510-25020

main43510-36030iJY16,RY16..20T197207-197708

main43510-36050iJY16,RY16..20T197810-197902

sub43510-36051

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31059iRY10,12197109-197902

main90368-38009iJY16,RY16..20T197207-197708

main90368-42045iJY16,RY16..20T197708-197902

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-22007iJY16,RY16..20T197207-197708

sub90366-22002

main90368-28001iJY16,RY16..20T197708-197902

main97600-30304iRY10,12197109-197902

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-21028iRY10,12197109-197902

main90214-23004iJY16,RY16..20T197207-197708

main90214-27001iJY16,RY16..20T197708-197902

43510ENUT (FOR STEERING KNUCKLE)

main90170-20147iRY10,12197306-197902

main90171-20047iRY10,12197109-197306

main90171-22017iJY16,RY16..20T197207-197708

main90171-26001iJY16,RY16..20T197708-197902

43514CAP, FRONT HUB GREASE

main43423-55010iRY10,12197109-197902

main43514-36010iJY16,RY16..20T197207-197708

main43514-36030iJY16,RY16..20T197708-197902

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-29015iJY16197109-197902

sub43510-25020

main43520-36030iJY16,RY16..20T197207-197708

main43520-36050iJY16,RY16..20T197810-197902

sub43520-36051

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iRY10,12197306-197902

9538104028

main95381-04028

9538104035

main95381-04035

15 parts on this diagram · 3 diagrams in section
