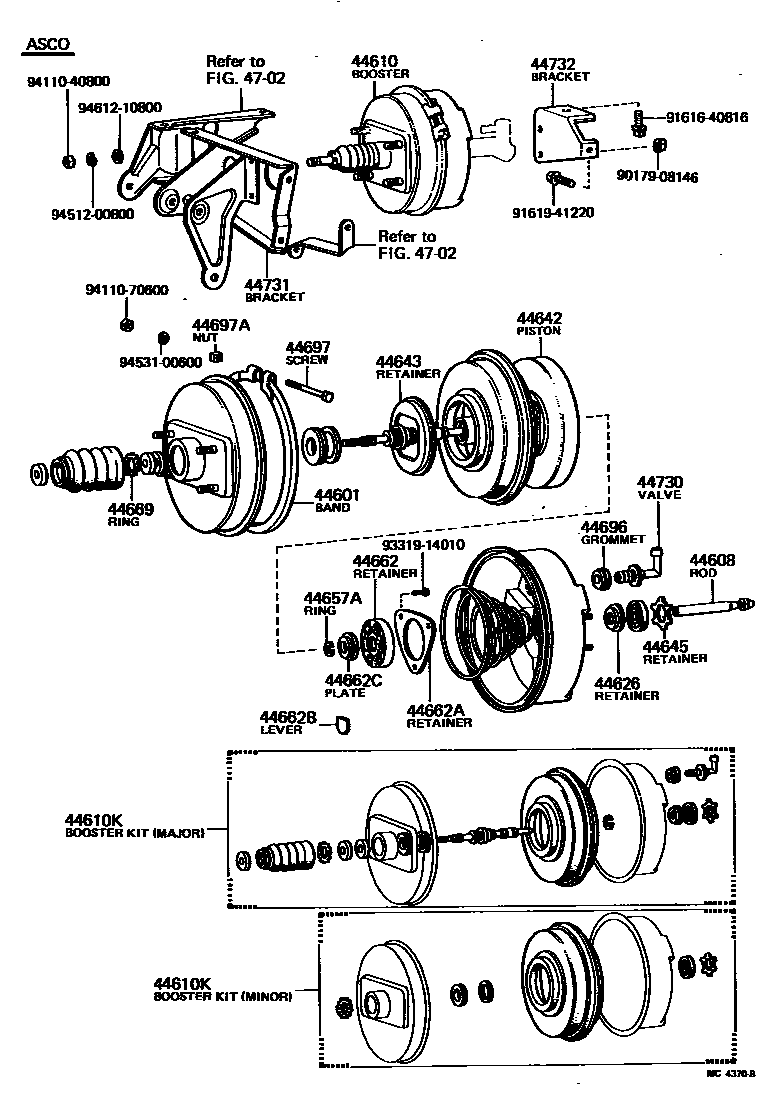

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44601BAND SUB-ASSY, BOOSTER BODY

main44605-25010iRY10,12197109-197902

ASCO

main44605-36120iJY16,RY16197207-197902

ASCO

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30030iRY10,12197109-197309

ASCO

sub44606-30031

main44606-30050iRY10,12197309-197902

ASCO

sub44606-35100

main44606-36120iJY16,RY16197207-197902

ASCO

main44608-14040iRY10,12197109-197902

JKK

44610BOOSTER ASSY, BRAKE

main44610-25020iRY1#197109-197110

JKK

sub44610-25021

main44610-25021iRY10,12197110-197902

JKK

main44610-25030iJY16,RY16197207-197902

ASCO

44610KBOOSTER KIT, BRAKE

main04441-25010iRY10,12197109-197902

ASCO,MINOR KIT

main04441-25020iRY10,12197109-197902

JKK,MINOR KIT

main04443-25010iRY10,12197109-197309

ASCO,MAJOR KIT

sub04443-25040

main04443-25020iRY1#197109-197110

JKK,MAJOR KIT

main04443-25021iRY10,12197110-197902

JKK,MAJOR KIT

main04443-25030iJY16,RY16197207-197902

ASCO

main04443-25040iRY10,12197309-197902

ASCO,MAJOR KIT

44626RETAINER, BOOSTER ROD CUP

main44626-60010iJY16,RY1#197109-197902

ASCO

44642PISTON, BRAKE BOOSTER

main44642-25010iRY10,12197109-197902

ASCO

main44642-25020iRY1#197109-197110

JKK

sub44642-22110

main44642-25021iRY10,12197110-197902

JKK

main44642-36120iJY16,RY16197207-197902

ASCO

44643RETAINER, DIAPHRAGM

main44643-60010iJY16,RY1#197109-197902

ASCO

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iJY16,RY1#197109-197902

ASCO

main44645-22020iRY10,12197109-197902

JKK

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iJY16,RY1#197109-197902

ASCO

44662RETAINER, REACTION, NO.1

main44662-36120iJY16,RY16197207-197902

ASCO

main44662-60010iRY10,12197109-197902

ASCO

44662ARETAINER, REACTION, NO.2

main44663-60010iJY16,RY1#197109-197902

44662BLEVER, REACTION

main44661-60010iJY16,RY1#197109-197902

sub44661-35100

44662CPLATE, REACTION, NO.1

main44653-25010iRY10,12197109-197902

main44653-36120iJY16,RY16197207-197902

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iJY16,RY1#197109-197902

44696GROMMET, CHECK VALVE

main90480-24438iRY10,12197109-197601

sub90480-24517

main90480-24439iJY16,RY1#197109-197902

main90480-24517iRY10,12197601-197902

sub90480-24015

44697SCREW, BOOSTER BAND SET

main44681-60010iRY1#197109-197202

ASCO

main44681-60011iJY16,RY1#197202-197902

ASCO

44697ANUT(FOR BOOSTER BAND SET)

main44686-30030iJY16,RY1#197202-197902

ASCO

main90173-06012iRY1#197109-197202

ASCO

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44690-36120iJY16,RY16197309-197401

ASCO,FOR BOOSTER SIDE

sub44730-36030

main44690-60010iRY1#197109-197202

ASCO

main44730-25010iJY16197207-197902

FOR MANIFOLD SIDE

main44730-25020iRY10,12197109-197902

JKK

main44730-26010iJY16,RY1#197202-197309

ASCO,FOR BOOSTER SIDE

main44730-26010iRY10,12197309-197902

ASCO

main44730-36030iJY16,RY16197401-197902

ASCO,FOR BOOSTER SIDE

44731BRACKET, BRAKE BOOSTER, FRONT

main55170-95010iRY10,12197109-197902

FOR BOOSTER

main55170-95012iJY16,RY16197207-197902

main55170-95013iRY12197511-197902

44732BRACKET, BRAKE BOOSTER, REAR

main55163-95010iRY10,12197109-197902

FOR BOOSTER

4702

9017908146

main90179-08146

9161640816

main91616-40816

9161941220

main91619-41220

9331914010

main93319-14010

9411040800

main94110-40800

9411070600

main94110-70600

9451200800

main94512-00800

9453100600

main94531-00600

9461210800

main94612-10800

30 parts on this diagram · 6 diagrams in section
