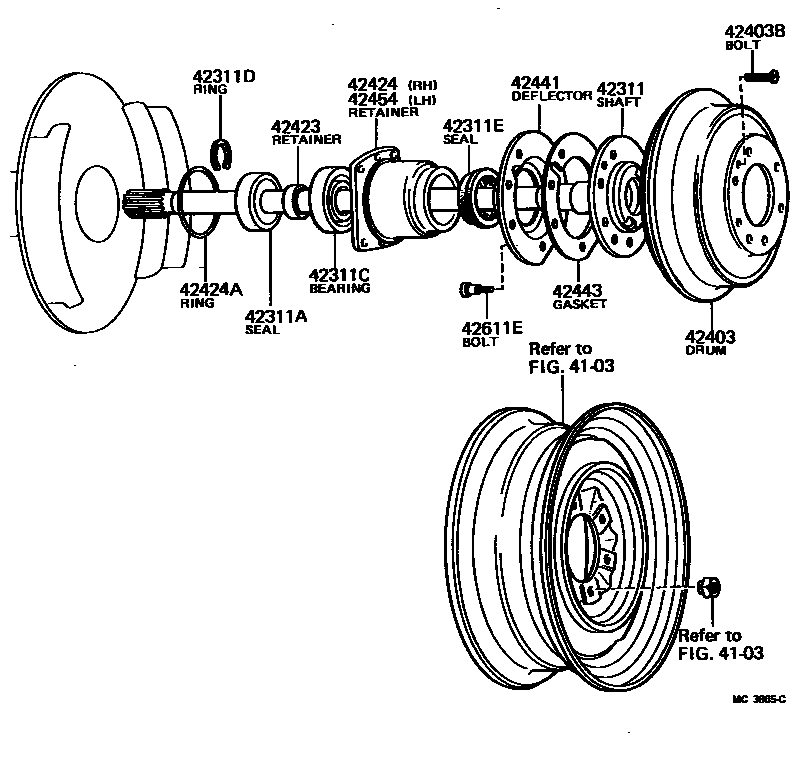

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

4103

42311SHAFT, REAR AXLE

main42311-25020iRY10197109-197902

main42311-25030iJY16,RY12..15T197109-197902

sub42311-25031

main42311-36031iJY16,RY16..20T197207-197902

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main42404-36010iJY16,RY16..20T197207-197902

main90310-50032iRY10197109-197212

sub90310-50039

main90310-50039iRY10197212-197902

sub90310-50001

main90311-47001iJY16,RY12..15T197411-197902

main90311-47048iRY12197109-197411

sub90311-47001

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47013iJY16,RY12..15T197109-197902

main90368-50008iJY16,RY16..20T197207-197902

FOR OUTER

main90368-57010iJY16,RY16..20T197207-197902

FOR INNER

main97144-06308iRY10197109-197902

sub90363-40020

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045iRY10197109-197902

main90520-99065iJY16,RY16197207-197902

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90311-35038iJY16,RY16197207-197902

main90313-48003iRY10197109-197902

42403DRUM SUB-ASSY, REAR BRAKE

main42431-25020iRY10,12197109-197902

main42431-36030iJY16,RY16..20T197207-197708

main43512-36020iJY16,RY16..20T197708-197902

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10015iJY16,RY1#197109-197504

sub90113-10035

main90113-10035iJY16,RY1#197504-197902

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010iRY10197109-197902

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42421-25010iRY10197109-197902

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077iRY10197109-197902

42441DEFLECTOR, BRAKE DRUM OIL

main42441-25010iRY10,12197109-197902

main42441-36010iJY16,RY16197207-197902

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-25010iRY10,12197109-197902

main42443-36010iJY16,RY16..20T197207-197902

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42421-25010iRY10197109-197902

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02024iJY16,RY16..20T197207-197902

FOR RH.

main90942-02025iJY16,RY16..20T197207-197902

FOR LH.

main90942-02030iRY10,12197109-197902

sub90942-02077

15 parts on this diagram · 3 diagrams in section
