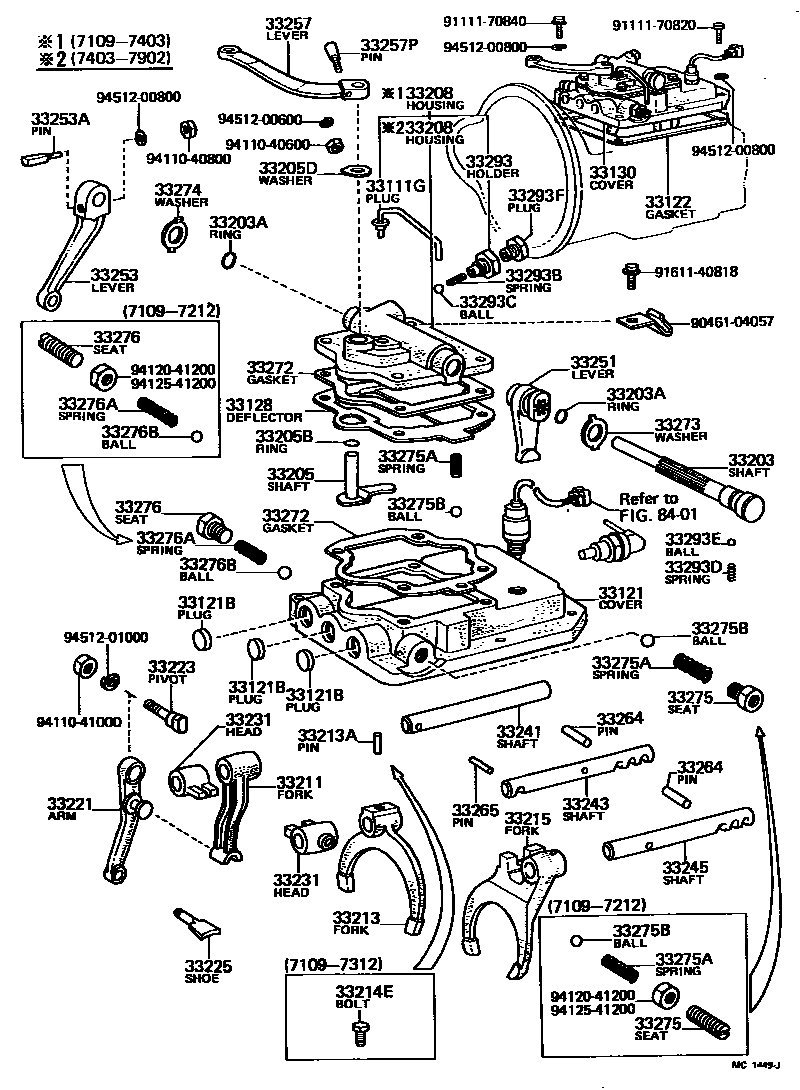

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33122GASKET, MANUAL TRANSMISSION CASE COVER
33128DEFLECTOR, MANUAL TRANSMISSION CASE COVER OIL
33130COVER ASSY, TRANSMISSION CASE
33203ARING, O(FOR SHIFT INTER-LOCK SUPPORT SHAFT)
ID=12.6,WD=2.3
ID=15.6,WD=2.3
33205SHAFT SUB-ASSY, SELECT LEVER
33205BRING, O(FOR SHIFT LEVER NO.2 SHAFT)
ID=12.6,WD=2.3
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33211FORK, REVERSE SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33214EBOLT(FOR GEAR SHIFT FORK LOCK)
33215FORK, 3RD & 4TH SHIFT
33231HEAD, REVERSE SHIFT
33241SHAFT, REVERSE SHIFT FORK
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
RED PAINT
YELLOW PAINT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=15,OD=9.5
L=38.9,OD=9.5
33265PIN, SHIFT INTERLOCK, NO.2
L=13,OD=4.8
33272GASKET, SHIFT LEVER SHAFT HOUSING
33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=16.1
L=15.2
33275BBALL, SHAFT DETENT
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
WD=1.6,CW=8
33276BBALL, SHIFT DETENT, NO.2
33293HOLDER, REVERSE RESTRICT BALL
33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
WD=1.6,CW=8
33293CBALL (FOR REVERSE RESTRICT)
33293DSPRING, COMPRESSION (FOR REVERSE RESTRICT SMALL SPRING)
33293EBALL (FOR REVERSE RESTRICT)
33293FPLUG (FOR REVERSE RESTRICT BALL HOLDER)
8401
9046104057
main90461-04057
9111170820
main91111-70820
9111170840
main91111-70840
9161140818
main91611-40818
9411040600
main94110-40600
9411040800
main94110-40800
9411041000
main94110-41000
9412041200
main94120-41200
9412541200
main94125-41200
9451200600
main94512-00600
9451200800
main94512-00800
9451201000
main94512-01000
59 parts on this diagram · 3 diagrams in section
