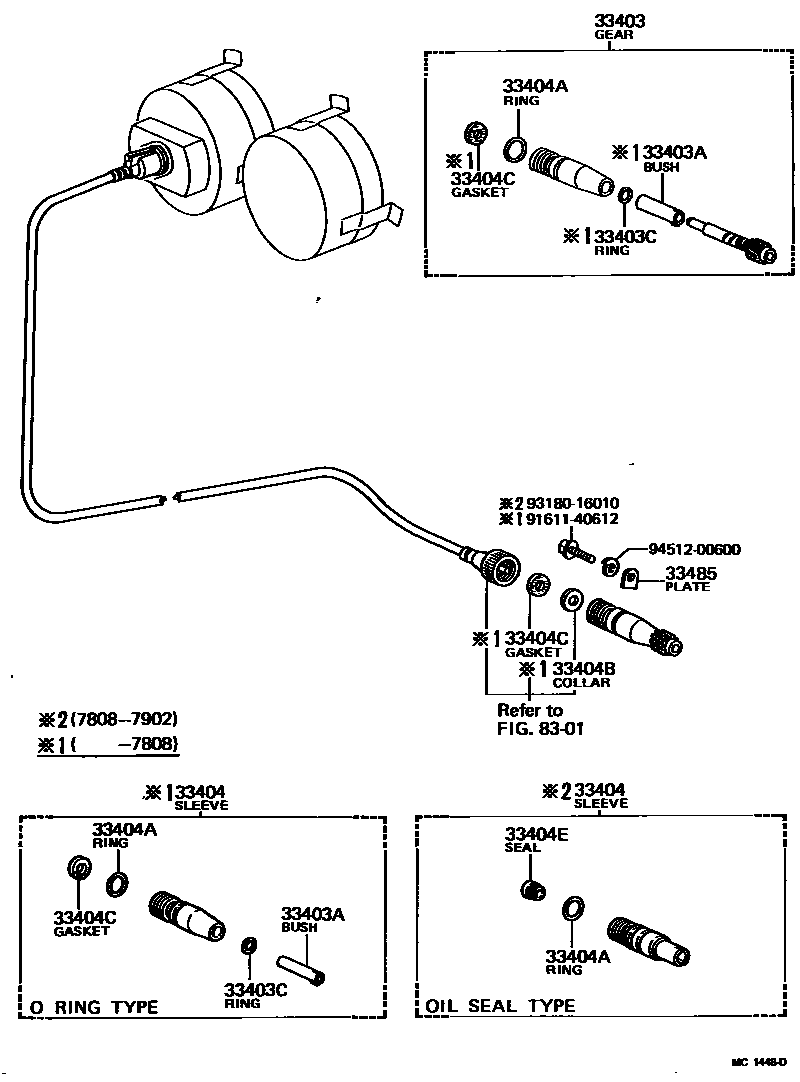

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29016iJY16197207-197902

N=19

main33403-29025iJY16,RY16..20T197207-197902

N=18

main33403-29035iRY10197109-197902

N=19

main33403-39036iJY16..15T197512-197902

N=17,N=17

main33403-39045iRY12197109-197902

N=17,MARK 17:4,N=17

main33403-39055iRY16197207-197902

N=16

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iJY16,RY1#197109-197808

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iJY16,RY1#197109-197808

sub90301-09017

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iJY16,RY1#197808-197902

main33404-39016iJY16,RY1#197109-197808

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iJY16,RY1#197109-197902

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iJY16,RY1#197109-197808

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iJY16,RY1#197109-197808

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-09001iJY16,RY1#197808-197902

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-35010iJY16,RY1#197109-197808

main33485-36010iJY16,RY1#197808-197902

8301

9161140612

main91611-40612

9318016010

main93180-16010

9451200600

main94512-00600

13 parts on this diagram · 1 diagram in section
