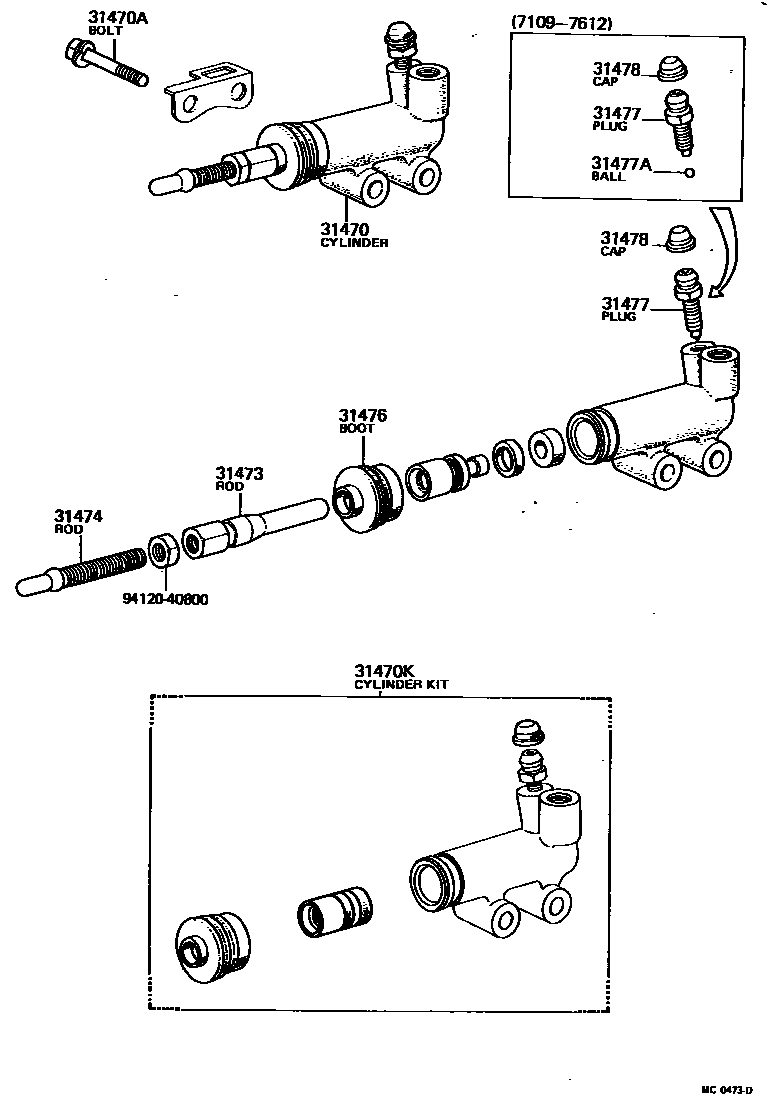

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36011iJY16197207-197902

main31470-36020iRY1#197109-197902

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40828iJY16197207-197902

sub91611-60828

main91611-40845iRY1#197109-197902

sub91611-60845

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-30042iRY1#197109-197902

main04313-30051iJY16197207-197902

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30020iJY16197207-197902

main31473-35020iRY1#197109-197902

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31474-30020iJY16197207-197902

main31474-36011iRY1#197109-197902

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20030iRY1#197211-197902

main31476-30010iRY1#197109-197211

sub31476-20030

main31476-30020iJY16197207-197902

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main31477-30010iRY1#197109-197612

main47547-12010iJY16197207-197902

31477ABALL(FOR RELEASE CYLINDER BLEEDER PLUG)

main90360-05006iRY1#197109-197612

sub90360-05012

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iJY16,RY1#197111-197902

main47548-20010iRY1#197109-197111

9412040800

main94120-40800

10 parts on this diagram · 2 diagrams in section
