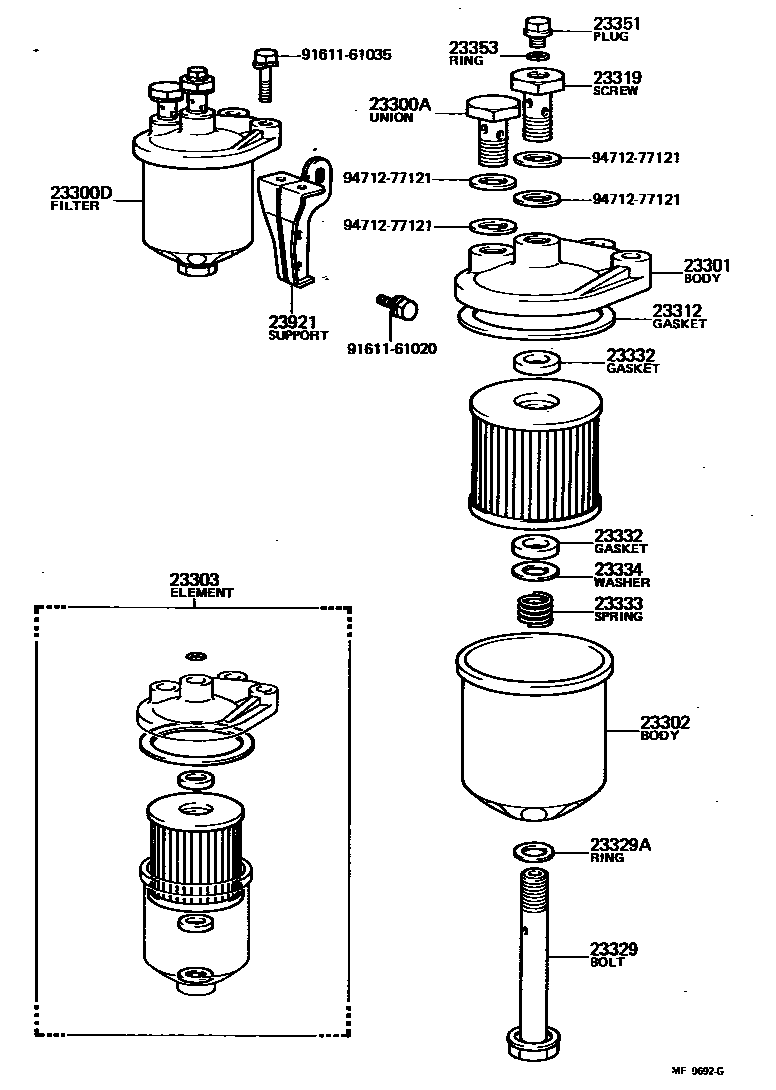

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

23300FILTER ASSY, FUEL

main23030-23010i12R..RY10,12197109-197208

main23030-23011i5R..RY16197207-197902

main23030-31030i12R..RY10,12197511-197902

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90401-14060i2J..JY16197207-197902

sub90099-18010

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-48012i2J..JY16197207-197810

sub23300-48013

main23300-48013i2J..JY16197810-197902

sub23300-48014

23301BODY SUB-ASSY, FUEL FILTER

main23311-48012i2J..JY16197207-197902

sub23311-48014

23302BODY SUB-ASSY, FUEL FILTER, LOWER

main23302-48012i2J..JY16197207-197902

23303ELEMENT SUB-ASSY, FUEL FILTER

main04234-48011i2J..JY16197207-197902

sub04234-48012

23312GASKET, FILTER BOWL

main23312-48012i2J..JY16197207-197902

23319SCREW, FUEL PIPE FOLLOW

main23319-46010i2J..JY16197207-197902

23329BOLT, FUEL FILTER CENTER

main23304-48012i2J..JY16197207-197902

23329ARING, O(FOR FUEL FILTER CENTER BOLT)

main23344-46010i2J..JY16197207-197902

23332GASKET, ELEMENT(FOR FUEL FILTER)

main23332-48012i2J..JY16197207-197902

23333SPRING, FILTER ELEMENT SET

main23333-48012i2J..JY16197207-197902

23334PLATE, SPRING(FOR FILTER ELEMENT)

main23334-48012i2J..JY16197207-197902

23351PLUG, AIR VENT

main23351-46010i2J..JY16197207-197902

23353RING, O(FOR AIR VENT PLUG)

main23353-46010i2J..JY16197207-197902

23921SUPPORT, FUEL FILTER

main23921-48010i2J..JY16197207-197902

9161161020

main91611-61020

9161161035

main91611-61035

9471277121

main94712-77121

19 parts on this diagram · 4 diagrams in section
