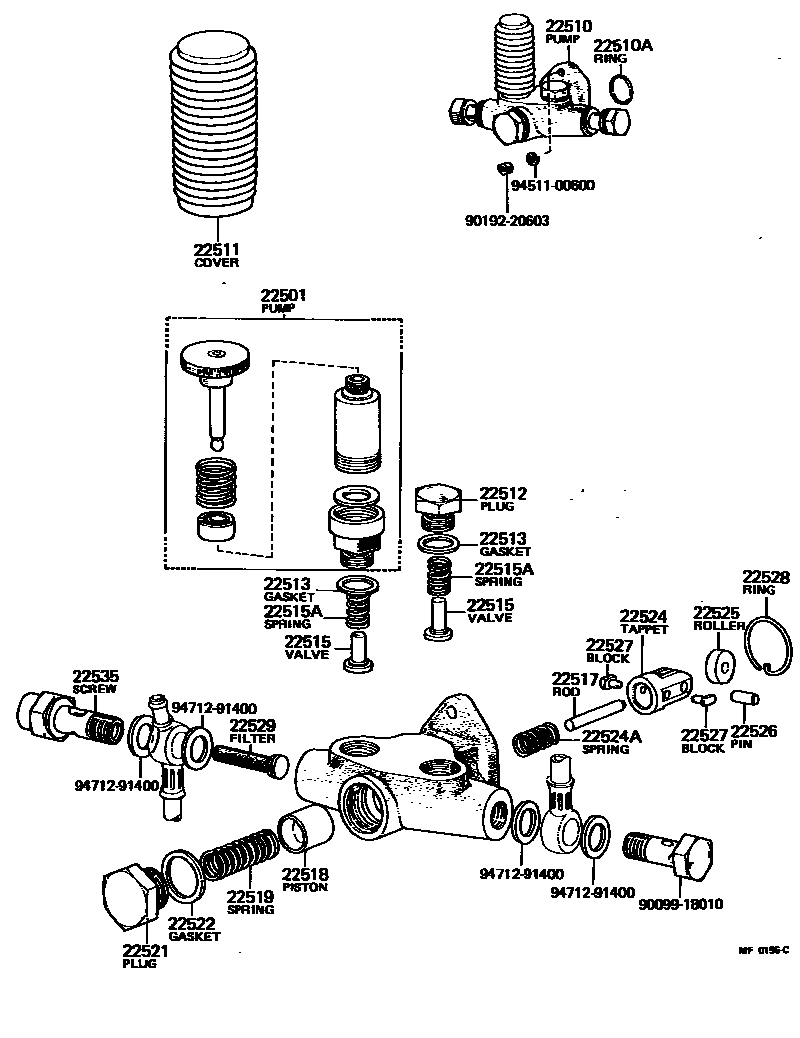

FUEL FEED PUMP
22501PUMP SUB-ASSY, PRIMING
22510ARING, O(FOR FUEL FEED PUMP)
22511COVER, PRIMING PUMP
22512PLUG, FEED PUMP CHECK VALVE CHAMBER
22513GASKET, CHECK VALVE CHAMBER PLUG
22515VALVE, FEED PUMP CHECK
sub22515-77021
22515ASPRING, FEED PUMP CHECK VALVE
22517ROD, FEED PUMP PUSH
22518PISTON, FEED PUMP
BLUE
22519SPRING, FEED PUMP PISTON
22521PLUG, FEED PUMP PISTON CHAMBER
sub22521-77021
22522GASKET, FEED PUMP PISTON PLUG
sub90099-01432
22524ASPRING, FEED PUMP TAPPET
22525ROLLER, FEED PUMP TAPPET
22526PIN, FEED PUMP TAPPET ROLLER
22527BLOCK, FEED PUMP TAPPET SLIDING
22528RING, FEED PUMP TAPPET SNAP
22535SCREW, FUEL PIPE FOLLOW
9009918010
main90099-18010
9019220603
main90192-20603
9451100600
main94511-00600
9471291400
main94712-91400
25 parts on this diagram · 2 diagrams in section
