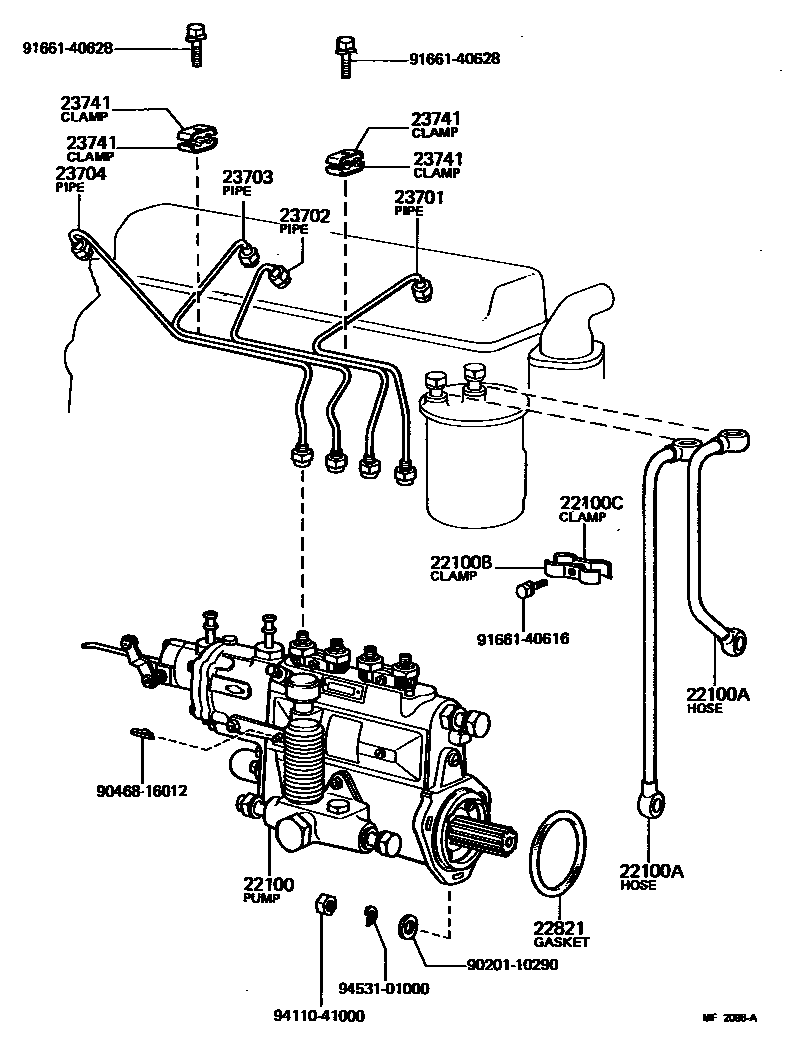

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-48023i2J..JY16197207-197307

sub22100-48024

sub17881-48011

sub17881-48020

main22100-48024i2J..JY16197307-197501

main22100-48025i2J..JY16197501-197708

main22100-48031i2J..JY16197708-197812

main22100-48071i2J..JY16197812-197902

main22100-48081i2J..JY16197708-197902

W/HAC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-48010i2J..JY16197207-197902

FEED PUMP

main23802-48010i2J..JY16197207-197902

INJECTION PUMP

22100BCLAMP, FUEL HOSE, NO.1

main23841-56010i2J..JY16197207-197902

22100CCLAMP, FUEL HOSE, NO.2

main23842-56010i2J..JY16197207-197902

22821GASKET, INJECTION PUMP

main90301-77001i2J..JY16197811-197902

main90301-78177i2J..JY16197207-197811

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-48011i2J..JY16197207-197902

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-48011i2J..JY16197207-197902

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-48011i2J..JY16197207-197902

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-48011i2J..JY16197207-197902

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i2J..JY16197207-197902

9020110290

main90201-10290

9046816012

main90468-16012

9166140616

main91661-40616

9166140628

main91661-40628

9411041000

main94110-41000

9453101000

main94531-01000

16 parts on this diagram · 2 diagrams in section
