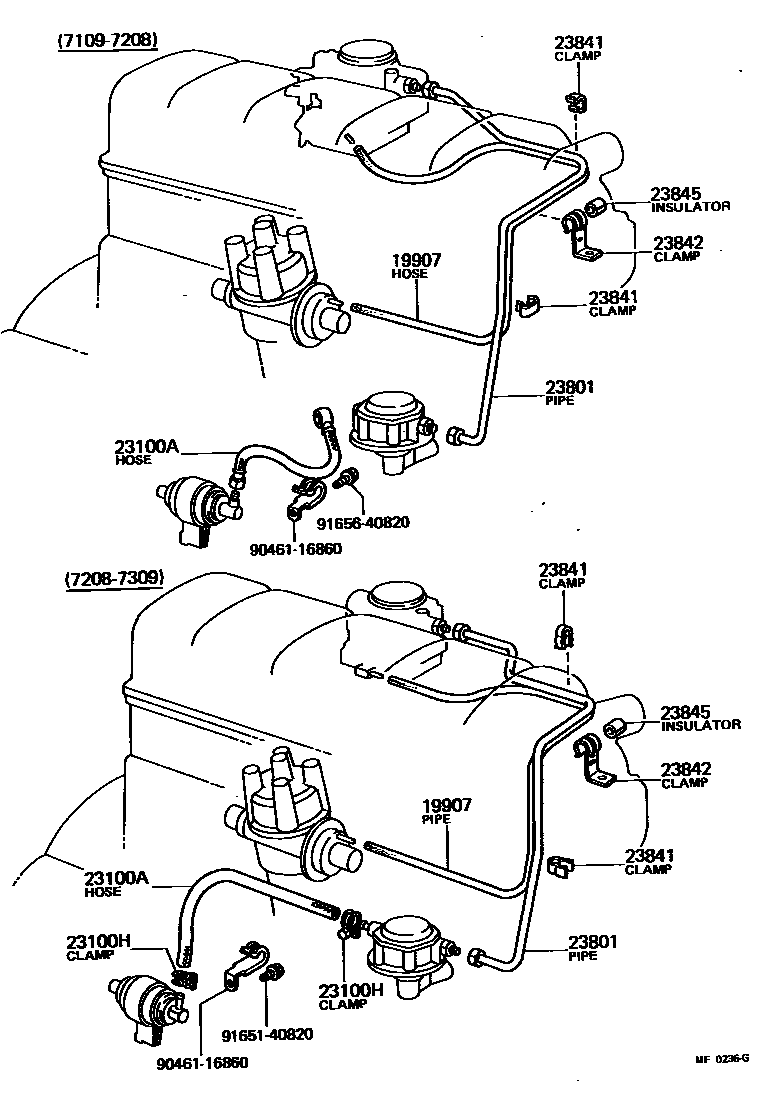

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1 0004 1

19907HOSE, VACUUM, NO.1

main90445-07106i5R..RY16197207-197712

L=730

main95411-10195i12R..RY10,12197511-197902

H,L=750

sub90999-92004

main95411-19995i5R..RY16197712-197902

H,L=750

sub90999-92004

23100AHOSE, FUEL

main95324-07034i12R..RY10,12197109-197208

sub90999-99033

main95331-06034i12R..RY10,12197511-197705

main95331-08034i12R..RY10,12197208-197511

main95332-06034i12R..RY10,12197705-197902

sub95332-06040

main95332-08034i5R..RY16197705-197902

sub95332-08040

23100HCLIP(FOR FUEL HOSE)

main90467-13130×2i12R,5R..RY1#197208-197212

main90467-13138×2i12R..RY10,12197212-197405

main96132-30600×2i12R..RY10,12197511-197902

sub96132-51100

main96132-30800×2i12R..RY10,12197405-197511

sub96132-51300

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-31040i12R..RY10,12197109-197511

sub23811-31040

main23801-31042i12R..RY10,12197511-197902

sub23811-31042

main23801-44020i5R..RY16197207-197308

main23801-44021i5R..RY16197308-197512

main23801-44051i5R..RY16197512-197902

23841CLAMP, FUEL PIPE(HOSE), NO.1

main90468-04007×2i12R..RY10,12197109-197511

main90468-05025×4i5R..RY16197207-197902

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-40010i12R..RY10,12197109-197511

main23841-44010i5R..RY16197207-197902

main23842-31010i12R..RY10,12197511-197902

23845INSULATOR, FUEL PIPE

main23845-20010i12R..RY10,12197109-197511

main90480-11124i5R..RY16197207-197902

9046116860

main90461-16860

9165140820

main91651-40820

9165640820

main91656-40820
