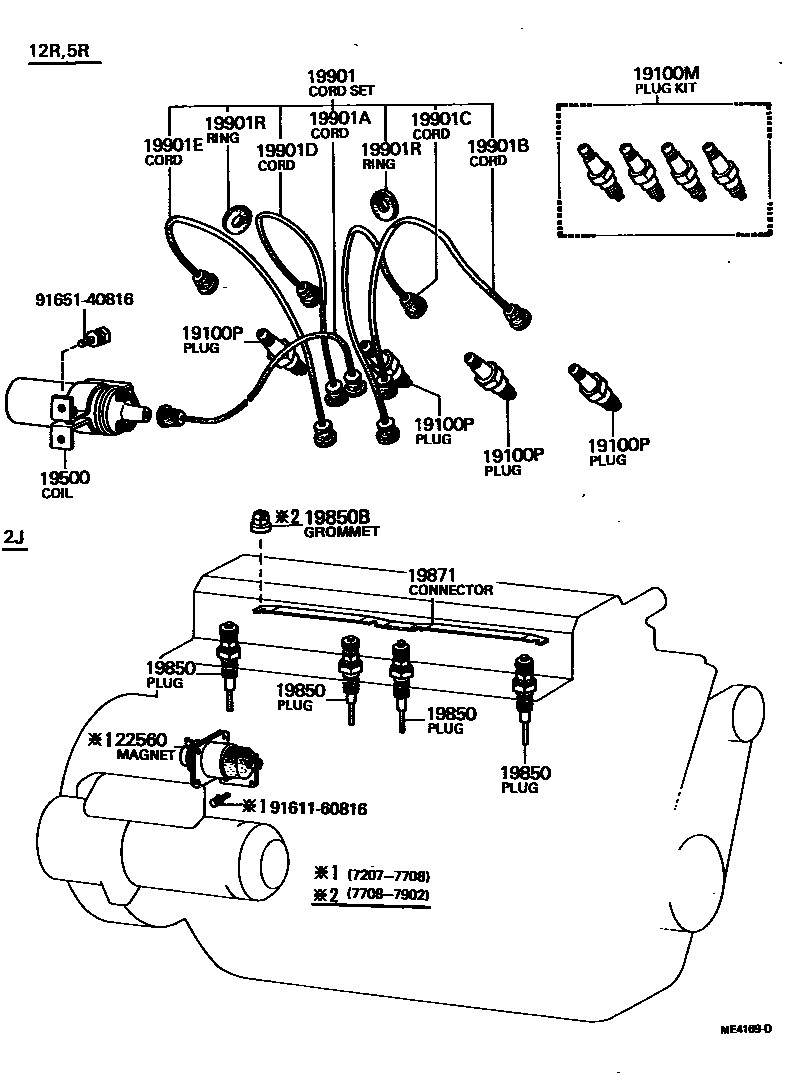

IGNITION COIL & SPARK PLUG / GLOW PLUG

19100MPLUG KIT, SPARK

main04195-34010i12R..RY10,12197511-197902

W16EP

main04195-34020i12R,5R..RY1#197109-197309

W20EP

main04195-34110i5R..RY16197708-197902

W16EX-U

19100PPLUG, SPARK

main90919-01020×4i5R..RY16..LHD197507-197902

W14EP CHINA SPEC.

sub90919-01056

main90919-01027×4i12R..RY10,12197511-197902

W16EP OR W16EX-U,W16EP

main90919-01041×4i12R,5R..RY1#197309-197511

W16EX

main90919-01059×4i5R..RY16197708-197902

W16EX-U,W16EX-U

sub90919-01064

main90999-09001×4i12R,5R..RY1#197109-197309

W20EP

sub90919-01083

19500COIL ASSY, IGNITION

main90919-02014i12R,5R..RY1#197109-197309

sub90919-02015

main90919-02053i12R,5R..RY1#197309-197511

sub90919-02118

main90919-02067i12R..RY10,12197511-197902

sub90919-02098

19850PLUG ASSY, GLOW

main19850-56020×4i2J..JY16197207-197410

12V

main19850-56021×4i2J..JY16197410-197708

12V

main19850-56022×4i2J..JY16197708-197902

12V

sub19850-68030

sub90189-04024

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-06004×4i2J..JY16197708-197902

19871CONNECTOR, GLOW PLUG NO.1

main19871-48010i2J..JY16197207-197902

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21015i12R..RY10,12197109-197511

main90919-21016i5R..RY16197207-197412

main90919-21068i5R..RY16197412-197902

main90919-21106i12R..RY10,12197511-197902

19901ACORD, COIL RESISTIVE

main90919-13035i5R..RY16197412-197902

L=380

main90919-13042i12R..RY10,12197506-197511

L=360

main90919-13043i12R..RY10,12197511-197902

main99231-10360i12R..RY10,12197109-197506

L=360

main99231-10380i5R..RY16197207-197412

L=380

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12082i12R..RY10,12197308-197902

L=290

main90919-12146i5R..RY16197506-197902

L=290

main99221-10290i12R,5R..RY1#197109-197308

L=290

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12145i12R,5R..RY1#197506-197902

L=240

main99221-10240i12R,5R..RY1#197109-197506

L=240

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12145i12R,5R..RY1#197506-197902

L=240

main99221-10240i12R,5R..RY1#197109-197506

L=240

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12146i12R,5R..RY1#197506-197902

L=290

main99221-10290i12R,5R..RY1#197109-197506

L=290

19901RRING, RUBBER SPARK PLUG RESISTIVE CORD

main90202-11067×2i12R,5R..RY1#197109-197902

22560MAGNET ASSY, OVER INJECTION

main22560-46010i2J..JY16197207-197708

12V

9161160816

main91611-60816

9165140816

main91651-40816

16 parts on this diagram · 1 diagram in section
