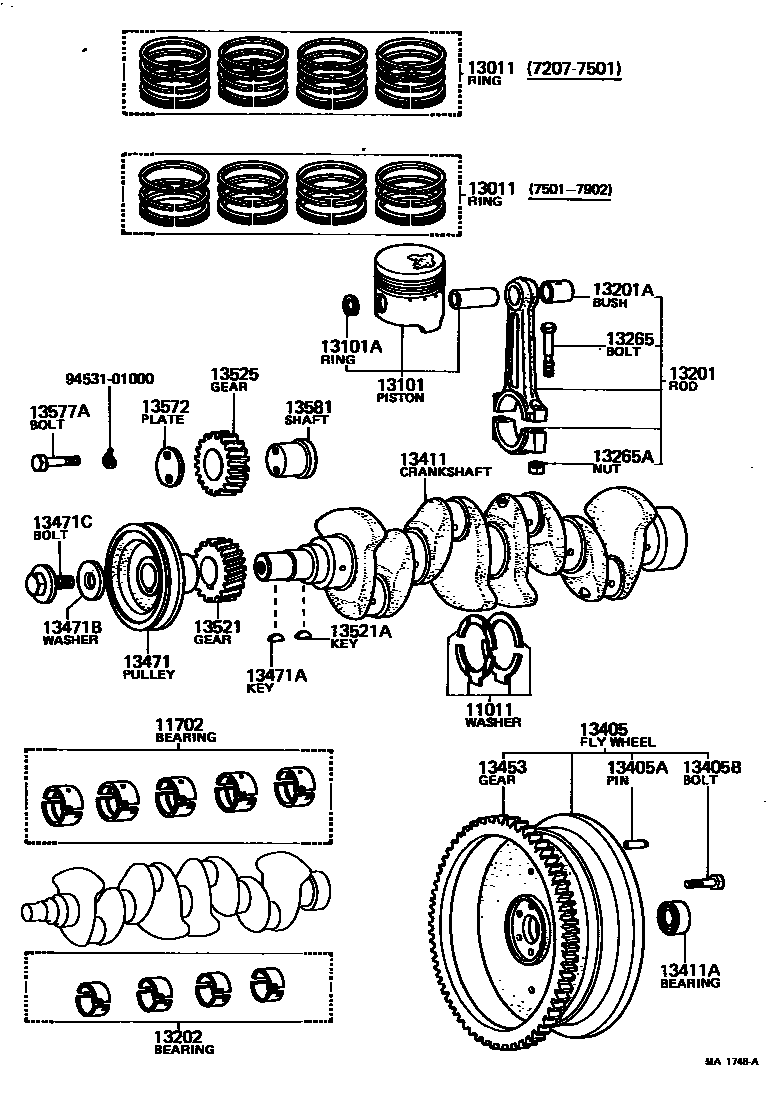

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
O/S 0.125
O/S 0.125
O/S 0.125
O/S 0.25
O/S 0.25
O/S 0.25
O/S 0.50
O/S 0.50
11702BEARING SET, CRANKSHAFT
STD
STD
STD
STD
U/S 0.05
U/S 0.05
U/S 0.05
U/S 0.05
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.75
U/S 0.75
U/S 0.75
U/S 0.75
U/S 1.00
U/S 1.00
U/S 1.00
13011RING SET, PISTON
STD
STD
STD
O/S 0.25
O/S 0.25 3PCS.
O/S 0.50
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.25
O/S 1.25 3PCS.
O/S 1.50
O/S 1.50 3PCS.
13101PISTON SUB-ASSY, W/PIN
STD
O/S 1.00
STD
CHINA SPEC. STD
O/S 0.25
O/S 0.25
O/S 0.50
O/S 0.50
CHINA SPEC. O/S 0.50
O/S 0.75
O/S 0.75
CHINA SPEC. O/S 0.75
O/S 1.00
O/S 1.00
CHINA SPEC. O/S 1.00
O/S 1.25
O/S 1.25
O/S 1.50
O/S 1.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13202BEARING SET, CONNECTING ROD
STD
STD
U/S 0.05
U/S 0.05
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.75
U/S 0.75
U/S 0.75
U/S 1.00
U/S 1.00
U/S 1.00
13405FLYWHEEL SUB-ASSY
N=115
N=115
N=117
N=115
N=105
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,L=23,OD=8
13411ABEARING(FOR INPUT SHAFT FRONT)
13453GEAR, FLYWHEEL RING
N=115
N=115
N=117
N=105
13471PULLEY, CRANKSHAFT
sub13407-31024
sub13407-31025
CHINA SPEC.
CHINA SPEC.
sub13471-44021
sub13407-44011
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
14-1.5PX26-21
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=25
N=18
N=25
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
N=24
13572PLATE, IDLE GEAR THRUST
13581SHAFT, IDLE GEAR, NO.1
9453101000
main94531-01000
27 parts on this diagram · 4 diagrams in section
