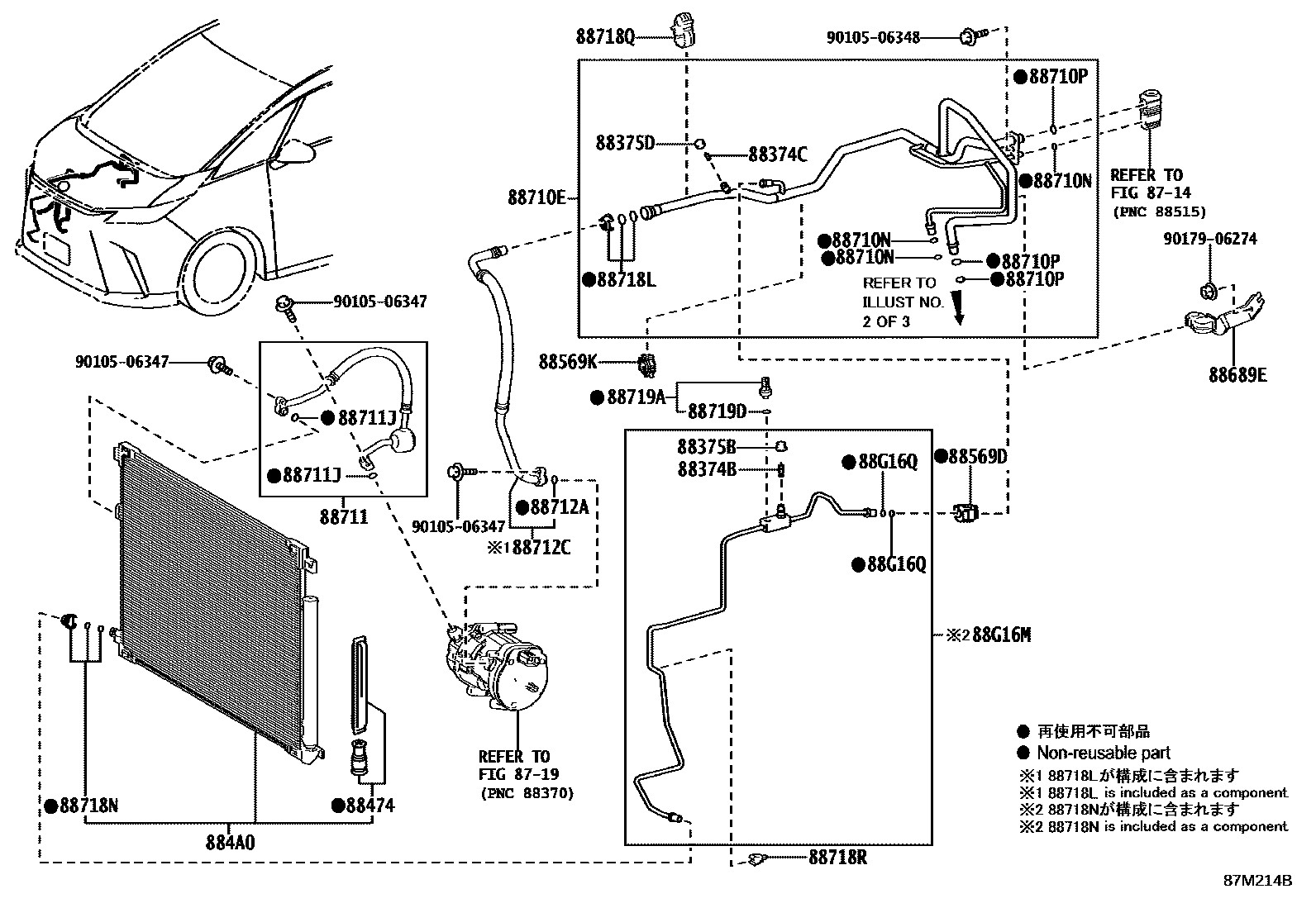

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT 0005 1REAR(1/2) 0006 1REAR(1/2) 0007 1REAR(2/2)

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAAWH1#202306

88374CVALVE, SERVICE, NO.2

main88374-30010iAAWH15..LHD..EUR;AAWH1#..ARL,CHI,GEN,PHL,RUS,TWN202306

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,RUS,TWN202306

main88375-30320iAAWH1#..EUR202306

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,RUS,TWN202306

main88375-30310iAAWH15..LHD..EUR202306

88474DRYER, COOLER

main88474-12010iAAWH1#,TAWH15¥0202306

884A0CONDENSER ASSY, COOLER

main884A0-48040iTAWH15¥32,800202311

main884A0-V2100iAAWH1#¥33,000202306

88569DCLAMP, COOLER, NO.1

main88718-2D150iAAWH1#,TAWH15202306

88569KCLAMP, COOLER, NO.2

main88718-33540iAAWH1#,TAWH15202306

88689EBRACKET, COOLER, NO.1

main88688-V2020iAAWH1#202306

main88688-V2031iTAWH15202311

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-V2010iAAWH1#..RHD..EUR¥27,700202306

main88710-V2020iAAWH1#..RHD..(ARL,GEN)202306

main88710-V2060iAAWH15..LHD..(CHI,GEN,PHL,RUS,TWN)202306

main88710-V2190iAAWH15..LHD..EUR202306

main88710-V2410iTAWH15..RHD202311

main88710-V2420iTAWH15..LHD202311

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iAAWH15..LHD..EUR;AAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,RUS,TWN202306

ID=6.7,OD=10.3

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14121iAAWH15..LHD..EUR;AAWH1#..ARL,CHI,GEN,PHL,RUS,TWN202306

ID=13.4,OD=18.2

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-V2030iAAWH1#¥8,600202306

main88711-V2040iTAWH15¥10,600202311

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90099-14120iAAWH1#,TAWH15¥0202306

ID=10.8,OD=15.6

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90099-14121iAAWH1#,TAWH15202306

ID=13.4,OD=18.2

88712CHOSE, SUCTION

main88712-V2030iAAWH1#¥9,700202306

main88712-V2040iTAWH15¥11,500202311

88718LCLAMP, PIPING

main88718-52280iAAWH15..LHD..EUR;AAWH1#,TAWH15..ARL,CHI,GEN,KRE,PHL,RUS,TWN¥0202306

88718NCLAMP, PIPING

main88718-1E150iAAWH1#,TAWH15¥0202306

88718QCLAMP, PIPING

main88718-42120iAAWH1#,TAWH15202306

88718RCLAMP, PIPING

main88718-47110iAAWH1#,TAWH15202306

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAAWH1#,TAWH15202306

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iAAWH1#,TAWH15202306

ID=10.6,OD=14.16

88G16MTUBE, LIQUID, NO.1

main88716-V2010iAAWH1#..EUR¥5,400202306

main88716-V2020iAAWH1#..ARL,CHI,GEN,PHL,RUS,TWN202306

main88716-V2040iTAWH15202311

88G16QRING, O, NO.1(FOR LIQUID TUBE)

main90099-14119iAAWH1#202306

ID=6.7,OD=10.3

9010506347

main90105-06347¥60

9010506348

main90105-06348¥60

9017906274

main90179-06274¥70

29 parts on this diagram · 7 diagrams in section
