NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

82H21UCOVER, CONNECTOR

main82821-60D10iAAWH1#,TAWH15¥230202306

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010iAAWH1#,TAWH15..ARL,EUR,GEN,KRE,PHL,RUS,TWN¥6,400202306

86736CONVERTER, MICROPHONE

main86736-58010iAAWH15,TAWH15..CHI¥23,700202306

86842WIRE, NAVIGATION, NO.1

main86842-V2520iAAWH15,TAWH15..RHD..X..(ARL,EUR)¥12,800202306

main86842-V2530iAAWH1#..RHD..V..(ARL,EUR)¥11,700202306

main86842-V2540iAAWH1#,TAWH15..RHD..X..GEN202306

main86842-V2550iAAWH1#,TAWH15..RHD..V..GEN202306

main86842-V2560iAAWH15,TAWH15..LHD..X..(CHI,EUR,KRE)202306

main86842-V2570iAAWH15,TAWH15..LHD..V..(CHI,EUR,KRE)202306

main86842-V2580iAAWH15,TAWH15..LHD..X..(GEN,PHL,RUS,TWN)202306

TURKEY SPEC

main86842-V2590iAAWH15,TAWH15..LHD..V..(GEN,PHL,RUS,TWN)202306

TURKEY SPEC

86842JWIRE, NAVIGATION, NO.2

main86842-V2370iAAWH1#,TAWH15..X¥6,300202306

86860ANTENNA ASSY, NAVIGATION

main86860-78010iAAWH1#,TAWH15..GEN,PHL,TWN¥8,500202306

UKRAINE SPEC

main86860-78010iAAWH1#,TAWH15..GEN,PHL,TWN¥8,500202306

DESTINATION PACKAGE(ERP)-GEORGIA SPEC

main86860-78010iAAWH1#,TAWH15..GEN,PHL,TWN¥8,500202306

DESTINATION PACKAGE(ERP)-AZERBAIJAN SPEC

main86860-78010iAAWH1#,TAWH15..GEN,PHL,TWN¥8,500202306

DESTINATION PACKAGE(ERP)-MOLDOVA SPEC

main86880-42010iAAWH1#,TAWH15..ARL,EUR,KRE,RUS¥8,500202306

INDIA SPEC

main86880-42030iAAWH15,TAWH15..CHI¥8,500202306

86862BRACKET, NAVIGATION ANTENNA

main86862-76050iAAWH1#,TAWH15¥950202306

86147V2050

main86147-V2050

9015950327

main90159-50327¥70

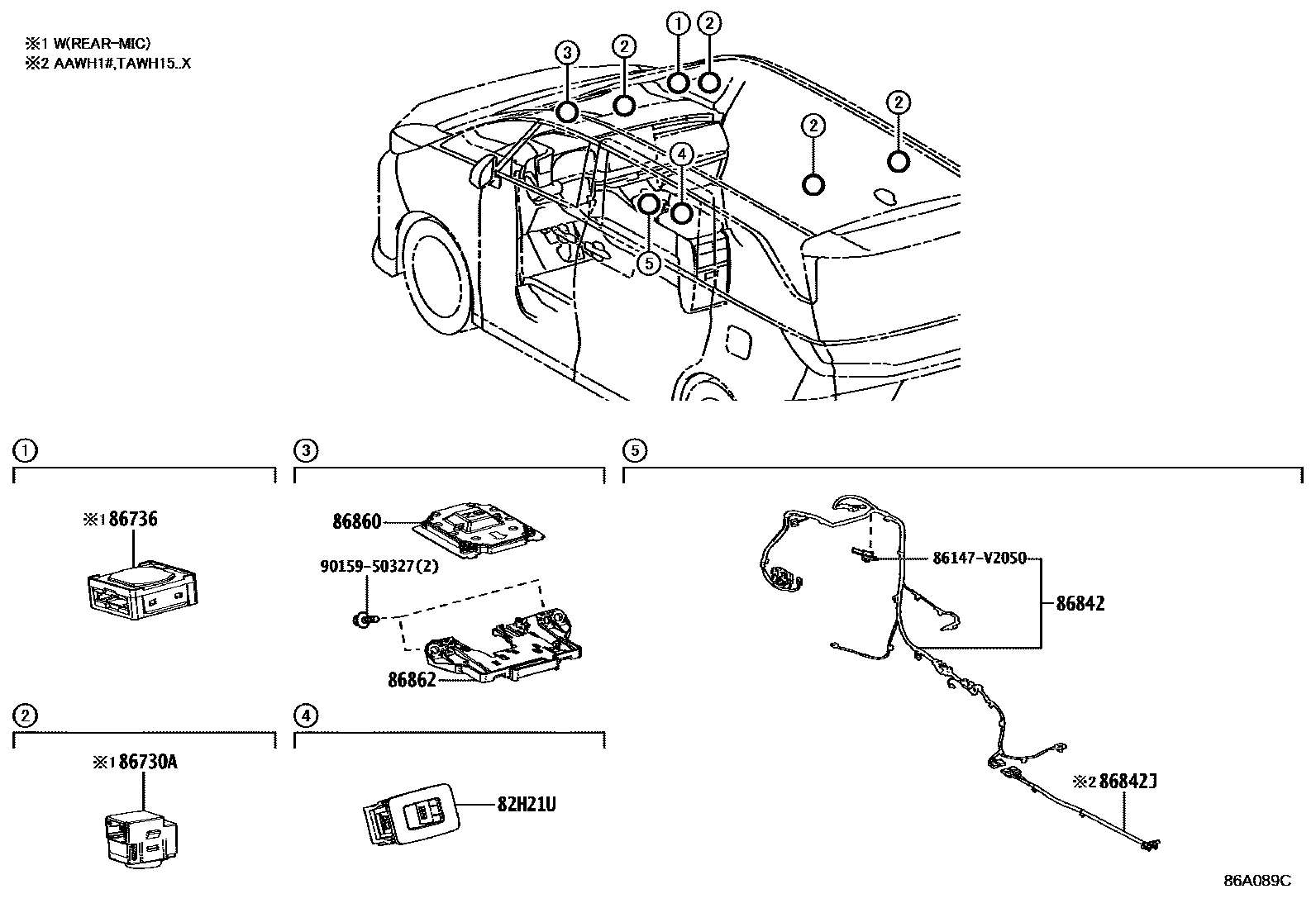

9 parts on this diagram · 3 diagrams in section
