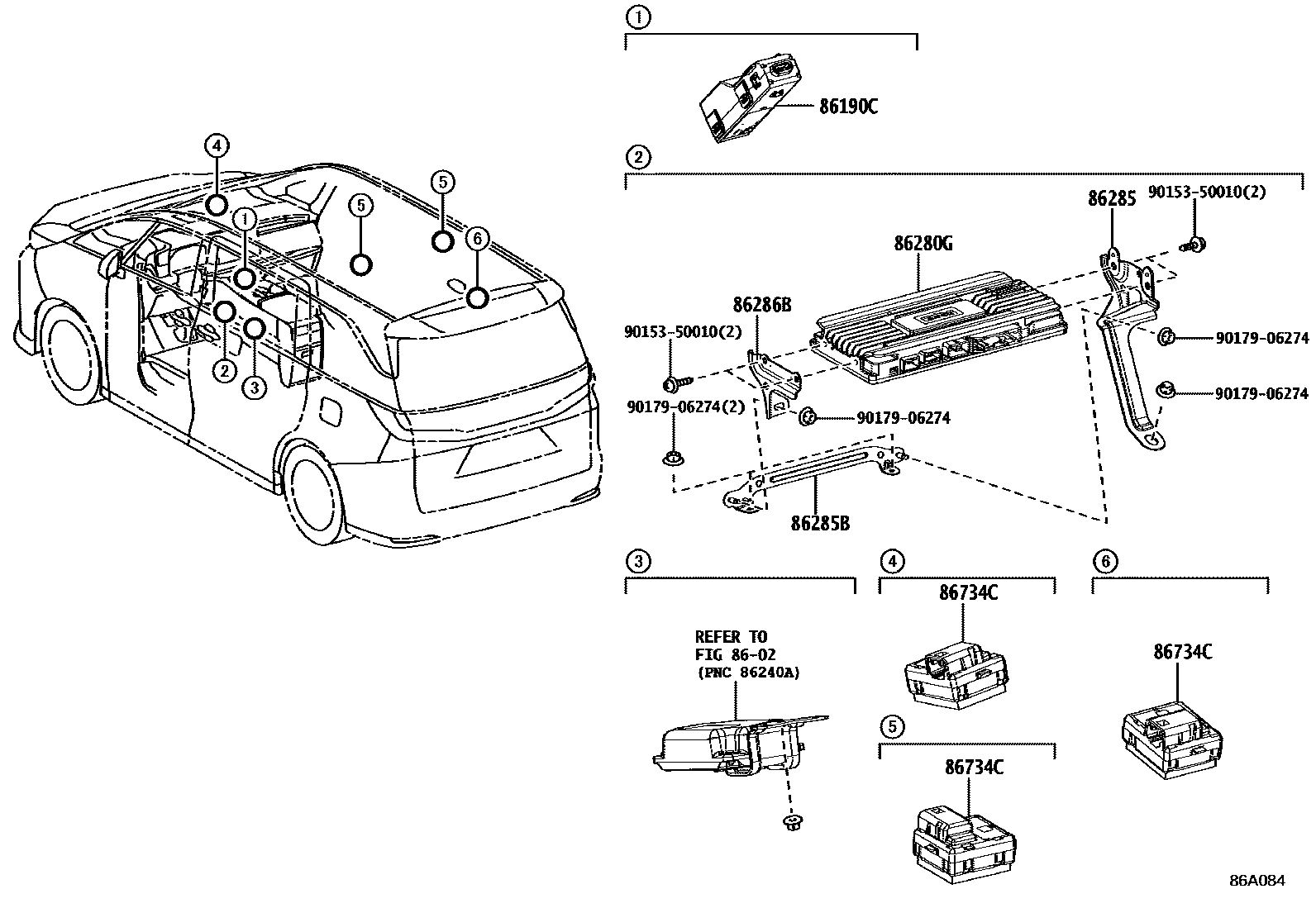

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

8602

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-46010iAAWH1#,TAWH15202306

86280GAMPLIFIER ASSY, STEREO COMPONENT

main86280-V2020iAAWH1#,TAWH15..V202306

main86280-V2040iAAWH1#,TAWH15..X202306

86285BRACKET, AMPLIFIER, NO.1

main86285-V2020iAAWH1#,TAWH15202306

86285BBRACKET, AMPLIFIER, NO.1

main86285-V2030iAAWH1#,TAWH15202306

86286BBRACKET, AMPLIFIER, NO.2

main86286-V2020iAAWH1#,TAWH15202306

86734CMICROPHONE, ACTIVE NOISE CONTROL

main86734-11030iAAWH1#,TAWH15202306

9015350010

main90153-50010

9017906274

main90179-06274

9 parts on this diagram · 3 diagrams in section
