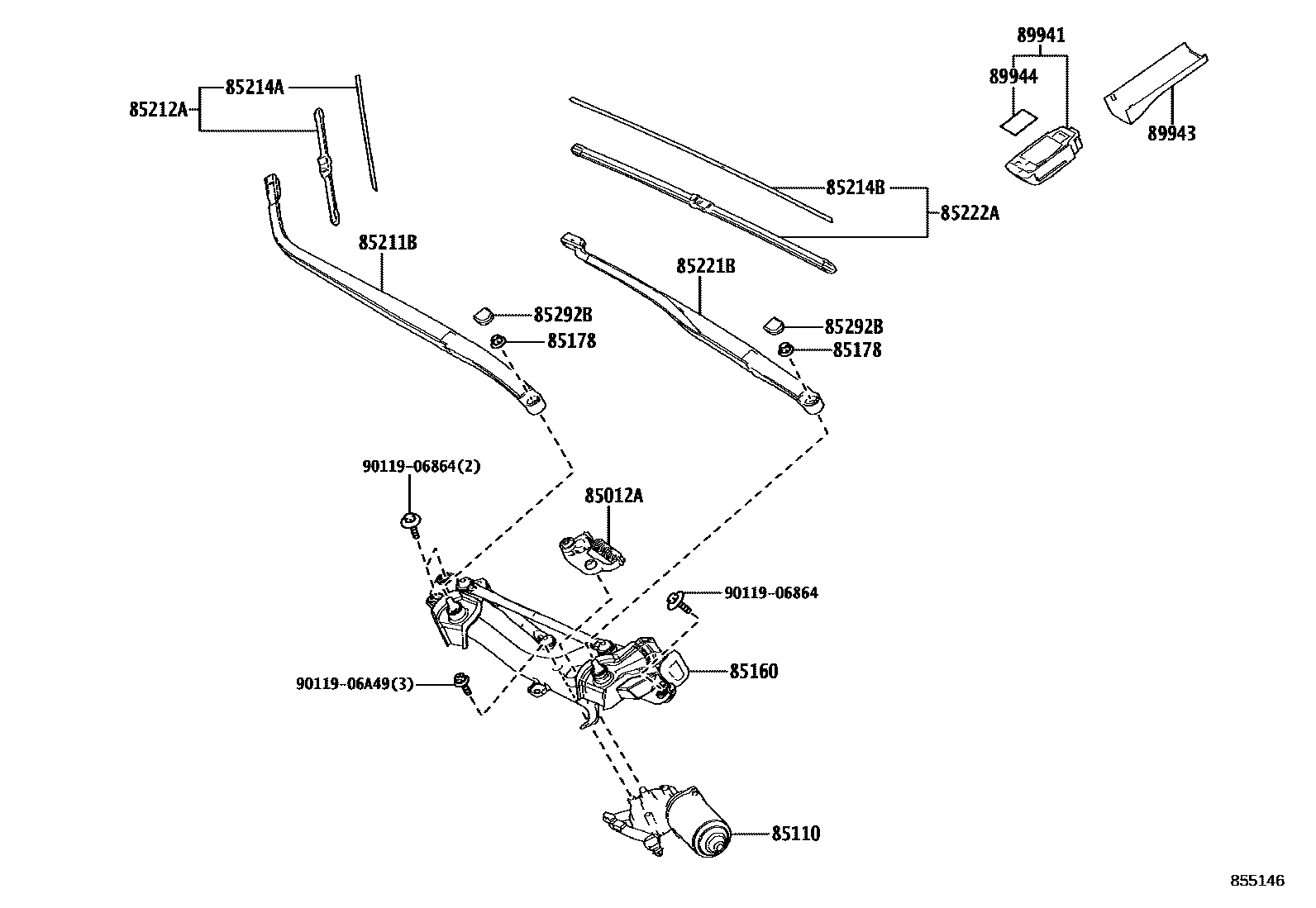

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58050iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main85012-58070iAAWH15,TAWH15..LHD..(CHI,EUR,RUS)202306

main85012-58090iAAWH1#..RHD..EUR202306

INDIA SPEC

main85012-58100iAAWH15,TAWH15..LHD..(GEN,KRE,PHL,TWN)202306

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-V2010iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main85110-V2020iAAWH1#..RHD..EUR202306

INDIA SPEC

main85110-V2030iAAWH15,TAWH15..LHD..(GEN,KRE,PHL,TWN)202306

main85110-V2040iAAWH15,TAWH15..LHD..(CHI,EUR,RUS)202306

85160LINK ASSY, WINDSHIELD WIPER

main85150-V2010iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main85150-V2020iAAWH1#..RHD..EUR202306

INDIA SPEC

main85150-V2030iAAWH15,TAWH15..LHD..(CHI,EUR,RUS)202306

main85150-V2040iAAWH15,TAWH15..LHD..(GEN,KRE,PHL,TWN)202306

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAAWH1#,TAWH15202306

85211BARM, FRONT WIPER, RH

main85211-V2010iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main85211-V2020iAAWH15,TAWH15..LHD..(CHI,EUR,RUS)202306

main85211-V2030iAAWH1#..RHD..EUR202306

INDIA SPEC

main85211-V2050iAAWH15,TAWH15..LHD..(GEN,KRE,PHL,TWN)202306

85212ABLADE, FR WIPER, RH

main85212-52220iAAWH15,TAWH15..LHD..(GEN,KRE,PHL,TWN)202306

main85212-58040iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main85212-V2020iAAWH1#..RHD..EUR202306

INDIA SPEC

main85212-V2040iAAWH15,TAWH15..LHD..(CHI,EUR,RUS)202306

85214ARUBBER, WIPER, RH

main85214-58030iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main85214-58060iAAWH1#..RHD..EUR202306

INDIA SPEC

main85214-58070iAAWH15,TAWH15..LHD..(CHI,EUR,RUS)202306

main85214-68030iAAWH15,TAWH15..LHD..(GEN,KRE,PHL,TWN)202306

85214BRUBBER, WIPER, LH

main85214-58030iAAWH15,TAWH15..LHD..(GEN,KRE,PHL,TWN)202306

main85214-58060iAAWH15,TAWH15..LHD..(CHI,EUR,RUS)202306

main85214-58070iAAWH1#..RHD..EUR202306

INDIA SPEC

main85214-68030iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

85221BARM, FRONT WIPER, LH

main85221-V2010iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main85221-V2020iAAWH15,TAWH15..LHD..(CHI,EUR,RUS)202306

main85221-V2030iAAWH1#..RHD..EUR202306

INDIA SPEC

main85221-V2050iAAWH15,TAWH15..LHD..(GEN,KRE,PHL,TWN)202306

85222ABLADE, FR WIPER, LH

main85222-52220iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main85222-58040iAAWH15,TAWH15..LHD..(GEN,KRE,PHL,TWN)202306

main85222-V2020iAAWH1#..RHD..EUR202306

INDIA SPEC

main85222-V2040iAAWH15,TAWH15..LHD..(CHI,EUR,RUS)202306

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAAWH1#,TAWH15202306

89941SENSOR, RAIN

main89941-78020iAAWH1#,TAWH15202306

89943COVER, RAIN SENSOR

main89943-42040iAAWH1#,TAWH15202306

89944TAPE, RAIN SENSOR

main89944-42020iAAWH1#,TAWH15202306

9011906864

main90119-06864

9011906A49

main90119-06A49

16 parts on this diagram · 2 diagrams in section
