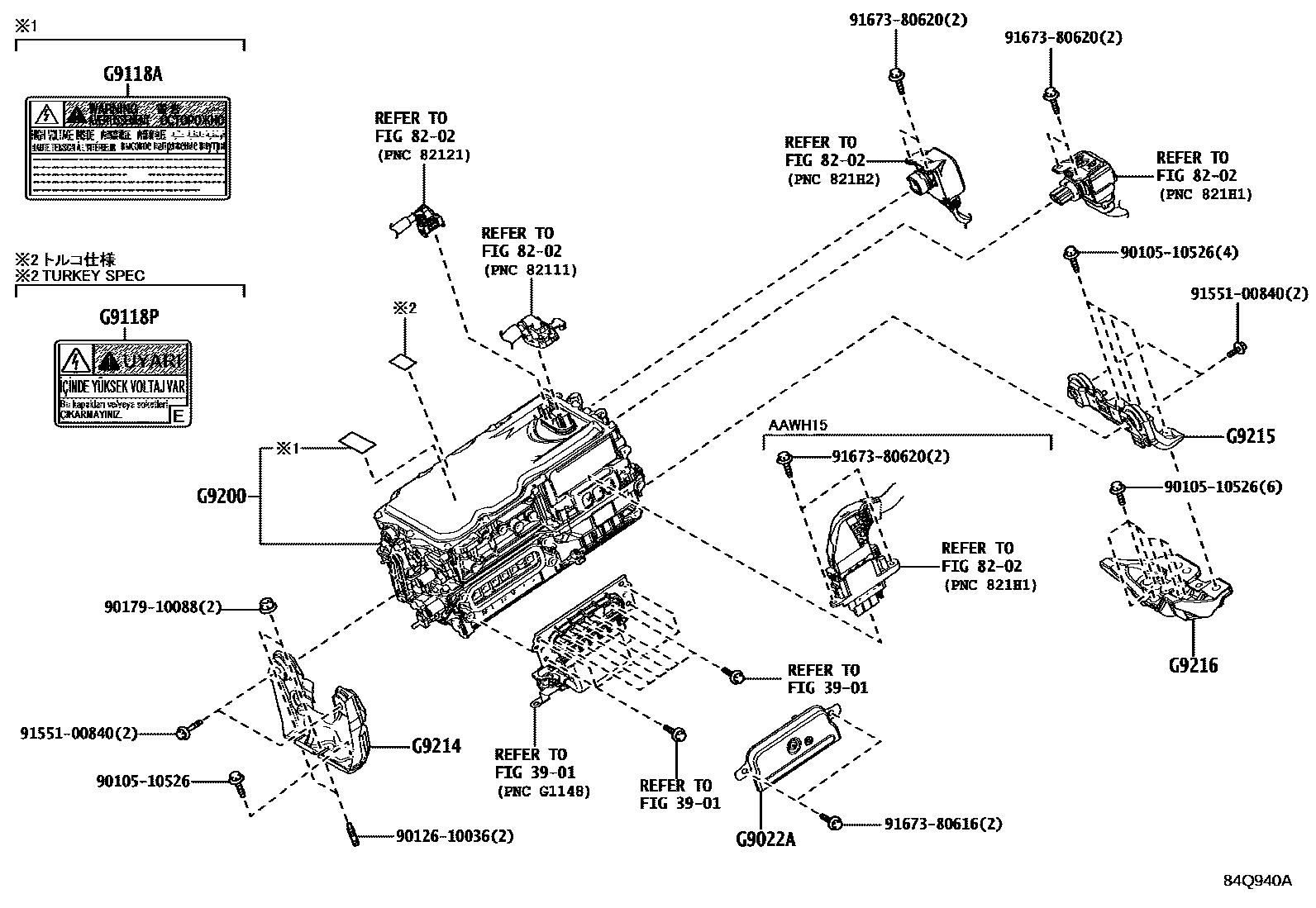

HEV INVERTER

0001 1 0002 1 0003 1 0004 1

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAAWH1#202306

mainG920348030iTAWH15202311

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010iAAWH1#202306

G9118PLABEL, HV MOTOR CONTROL INVERTER CAUTION, NO.2

G9200INVERTER ASSY, W/CONVERTER

mainG92A048382iAAWH15202306-202312

subG92A0-48383

mainG92A048383iAAWH15202401

mainG92A048392iAAWH10202306-202312

subG92A0-48393

mainG92A048393iAAWH10202401

G9214BRACKET, INVERTER, NO.1

mainG921448070iAAWH1#202306

G9215BRACKET, INVERTER, NO.2

mainG921542010iAAWH1#202306

G9216BRACKET, INVERTER, NO.3

mainG921678020iAAWH1#202306

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

15 parts on this diagram · 4 diagrams in section
