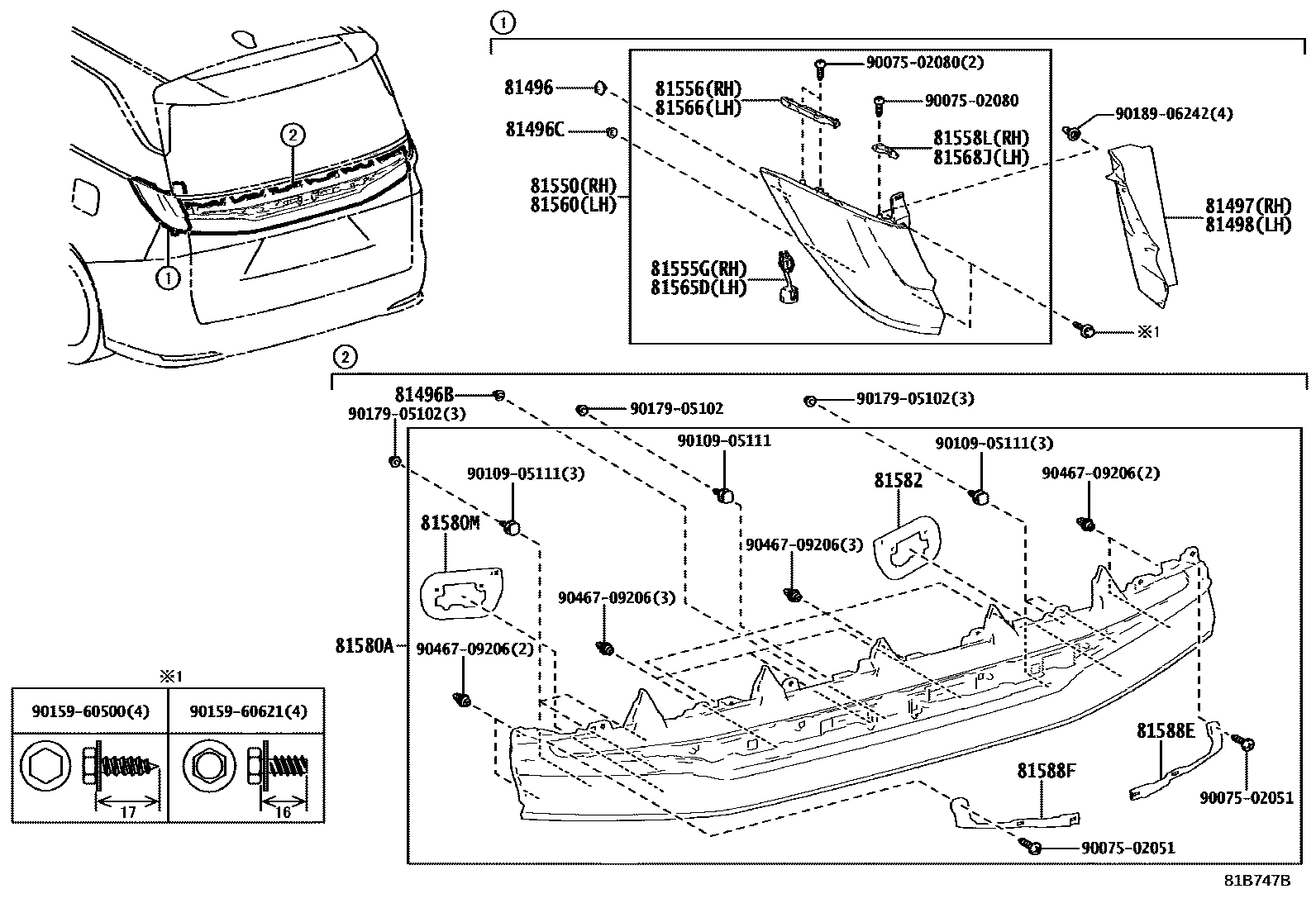

REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-50010iAAWH1#,TAWH15¥90202306

81496BGUIDE, REAR LAMP

main81496-78010iAAWH1#,TAWH15¥90202306

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iAAWH1#,TAWH15¥70202306

81497COVER, REAR COMBINATION LAMP, RH

main81497-V2030iAAWH1#,TAWH15¥2,000202306

81498COVER, REAR COMBINATION LAMP, LH

main81498-V2030iAAWH1#,TAWH15¥2,000202306

81550LAMP ASSY, REAR COMBINATION, RH

main81550-V2100iAAWH1#,TAWH15¥36,400202306

81555GCORD, REAR COMBINATION LAMP, RH

main81555-V2100iAAWH1#,TAWH15202306

81556RIM, REAR COMBINATION LAMP, RH

main81556-V2100iAAWH1#,TAWH15¥440202306

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-V2100iAAWH1#,TAWH15¥3,420202306

81560LAMP ASSY, REAR COMBINATION, LH

main81560-V2100iAAWH1#,TAWH15¥36,400202306

81565DCORD, REAR COMBINATION LAMP, LH

main81555-V2100iAAWH1#,TAWH15202306

81566RIM, REAR COMBINATION LAMP, LH

main81566-V2100iAAWH1#,TAWH15¥440202306

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81568-V2100iAAWH1#,TAWH15¥3,420202306

81580ALAMP ASSY, REAR

main81580-V2090iAAWH10..GEN;AAWH15,TAWH15..LHD..(GEN,KRE,PHL)¥111,000202306

INDIA SPEC

main81580-V2090iAAWH10..GEN;AAWH15,TAWH15..LHD..(GEN,KRE,PHL)¥111,000202306

SINGAPORE SPEC

main81580-V2100iAAWH15,TAWH15..RHD..GEN;AAWH1#,TAWH15..ARL,CHI,EUR,RUS,TWN¥116,000202306

MALAYSIA SPEC

main81580-V2100iAAWH15,TAWH15..RHD..GEN;AAWH1#,TAWH15..ARL,CHI,EUR,RUS,TWN¥116,000202306

HONG KONG SPEC

81580MGASKET, RR LAMP

main81582-V2100iAAWH1#,TAWH15¥670202306

81582GASKET, REAR LAMP

main81582-V2090iAAWH1#,TAWH15¥670202306

81588EBRACKET, REAR LAMP, RH

main81588-V2100iAAWH1#,TAWH15¥760202306

81588FBRACKET, REAR LAMP, LH

main81588-V2090iAAWH1#,TAWH15¥760202306

9007502051

main90075-02051¥60

9007502080

main90075-02080¥60

9010905111

main90109-05111¥60

9015960500

main90159-60500¥70

9015960621

main90159-60621¥60

9017905102

main90179-05102¥90

9018906242

main90189-06242¥70

9046709206

main90467-09206¥80

26 parts on this diagram · 1 diagram in section
