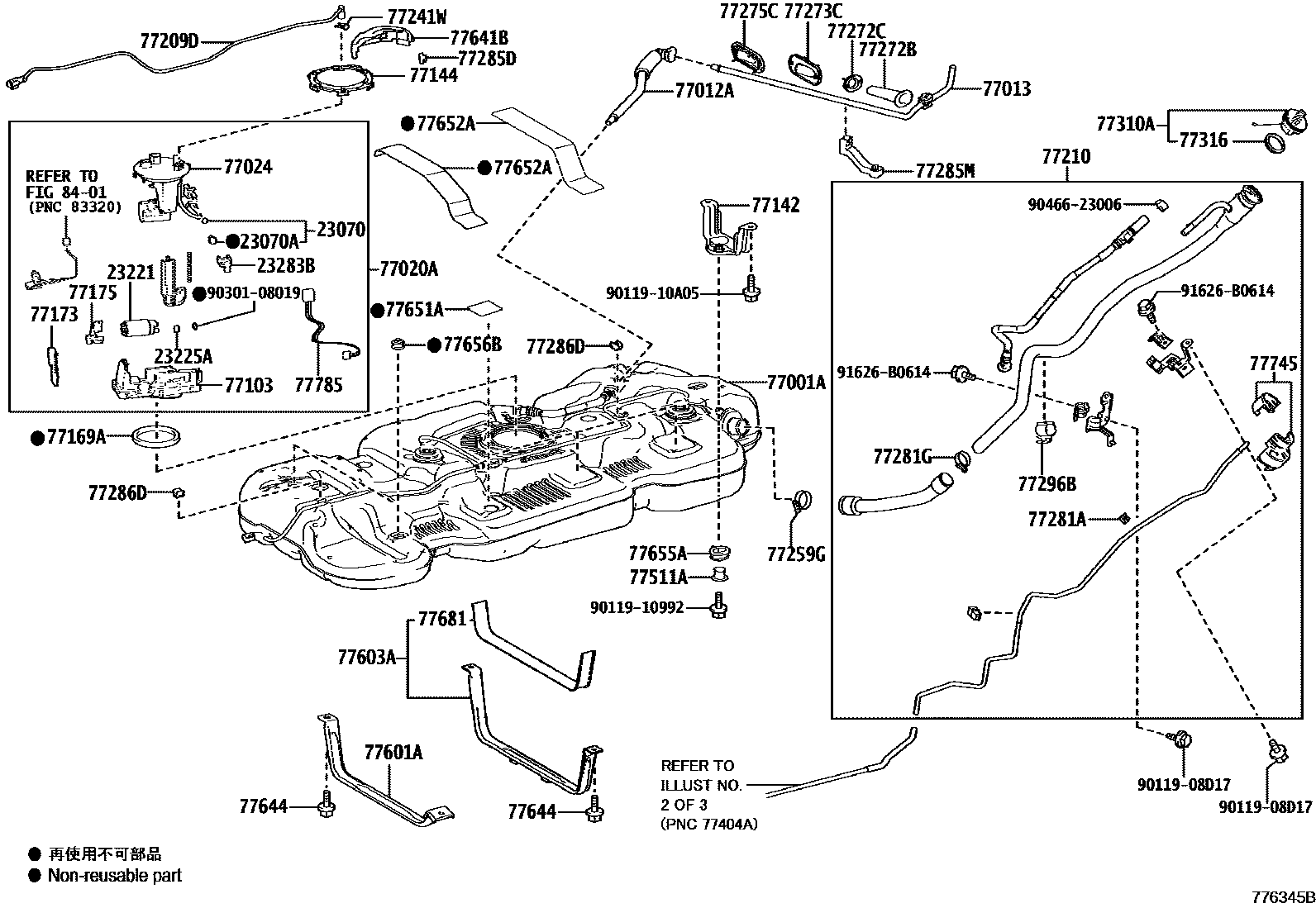

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iA25,T24..AAWH1#,TAWH15¥2,560202306

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25,T24..AAWH1#,TAWH15¥140202306

23221PUMP, FUEL

main23221-25030iA25..AAWH1#¥23,400202306

main23221-25080iT24..TAWH15¥23,400202311

23225ASPACER, FUEL PUMP

main23225-31020iA25,T24..AAWH1#,TAWH15¥40202306

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24010iA25,T24..AAWH1#,TAWH15¥370202306

77001ATANK SUB-ASSY, FUEL

main77001-V2070iAAWH15,TAWH15..CHI,KRE202306

main77001-V2080iAAWH1#,TAWH15..ARL,EUR,GEN,PHL,RUS,TWN¥33,300202306

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-V2050iAAWH1#,TAWH15..ARL,EUR,GEN,PHL,RUS,TWN¥1,360202306

main77012-V2070iAAWH15,TAWH15..CHI,KRE202306

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-V2010iAAWH1#,TAWH15¥3,060202306

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-V2020iAAWH1#..ARL,EUR,GEN,PHL,RUS,TWN¥39,000202306

main77020-V2070iTAWH15..ARL,GEN,TWN¥39,000202311

main77020-V2080iAAWH15..CHI202306

main77020-V2090iTAWH15..CHI,KRE202311

77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT

main77024-V2020iAAWH1#..ARL,EUR,GEN,PHL,RUS,TWN¥2,710202306

main77024-V2050iTAWH15..ARL,GEN,TWN¥2,710202311

main77024-V2060iAAWH15..CHI202306

main77024-V2070iTAWH15..CHI,KRE202311

77103SUB-TANK SUB-ASSY, FUEL

main77103-42120iAAWH1#¥2,920202306

main77103-48100iTAWH15¥2,920202311

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-V2011iAAWH1#,TAWH15¥1,750202306

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAAWH1#,TAWH15¥1,270202306

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iAAWH1#,TAWH15¥700202306

77173BRACKET, FUEL GAGE

main77173-12020iAAWH1#,TAWH15¥460202306

77175SUPPORT, FUEL SUCTION, NO.2

main77175-12030iAAWH1#,TAWH15¥510202306

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-V2040iAAWH1#,TAWH15¥1,630202306

77210PIPE ASSY, FUEL TANK FILLER

main77210-V2040iAAWH15,TAWH15..CHI,KRE202306

main77210-V2050iAAWH15,TAWH15..TWN¥9,800202306

HONG KONG SPEC

main77210-V2050iAAWH15,TAWH15..TWN¥9,800202306

SINGAPORE SPEC

main77210-V2060iAAWH1#,TAWH15..ARL,GEN,PHL202306

main77210-V2080iAAWH1#..EUR,RUS202306

77241WCLIP, TUBE JOINT

main77241-60550iAAWH1#,TAWH15..ARL,EUR,GEN,PHL,RUS,TWN¥50202306

77259GCLIP, FUEL HOSE

main90460-50008iAAWH1#,TAWH15..ARL,EUR,GEN,PHL,RUS,TWN¥240202306

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-58010iAAWH1#,TAWH15¥390202306

77272CSUPPORT, BREATHER TUBE, NO.3

main77273-58010iAAWH1#,TAWH15¥470202306

77273CSUPPORT, BREATHER TUBE, NO.2

main77272-V2010iAAWH1#,TAWH15¥510202306

77275CSUPPORT, BREATHER TUBE, NO.4

main77273-V2010iAAWH1#,TAWH15¥510202306

77281ACLAMP, FUEL FILLER PIPE

main77281-30110iAAWH1#,TAWH15..ARL,EUR,GEN,PHL,RUS,TWN¥190202306

main77281-58010iAAWH15,TAWH15..CHI,KRE202306

77281GCLAMP, FUEL HOSE

main90460-40007iAAWH1#,TAWH15..ARL,EUR,GEN,PHL,RUS,TWN¥190202306

77285DCLAMP, FUEL TUBE, NO.1

main77285-30350iAAWH1#,TAWH15¥200202306

77285MCLAMP, FUEL TUBE, NO.1

main77285-V2020iAAWH1#,TAWH15¥700202306

77286DCLAMP, FUEL TUBE, NO.2

main77286-30180iAAWH1#,TAWH15..ARL,EUR,GEN,PHL,RUS,TWN¥190202306

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-58010iAAWH1#,TAWH15..ARL,EUR,GEN,PHL,RUS,TWN¥340202306

main77296-58020iAAWH15,TAWH15..CHI,KRE202306

77310ACAP ASSY, FUEL TANK

main77300-11010iAAWH15,TAWH15..CHI202306

main77300-12020iAAWH1#,TAWH15..ARL,GEN,PHL,RUS¥1,660202306

main77300-33040iTAWH15..KRE¥2,370202311

main77300-48020iAAWH1#,TAWH15..EUR,TWN¥1,960202306

77316GASKET, FUEL TANK CAP

main77316-52040iAAWH1#,TAWH15..ARL,GEN,PHL,RUS¥230202306

main77316-75020iAAWH1#,TAWH15..CHI,EUR,KRE,TWN¥200202306

77511ABRACKET, FUEL TANK

main77511-48030iAAWH1#,TAWH15¥220202306

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-V2040iAAWH1#,TAWH15¥1,830202306

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-V2040iAAWH1#,TAWH15¥2,090202306

77641BCOVER, FUEL TANK

main77641-V2030iAAWH1#,TAWH15¥720202306

77644BOLT, FUEL TANK

main90119-10A05iAAWH1#,TAWH15¥120202306

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iAAWH1#,TAWH15¥230202306

77652ACUSHION, FUEL TANK, NO.2

main77651-35070iAAWH1#,TAWH15¥990202306

77655ACUSHION, FUEL TANK, NO.5

main77655-30080iAAWH1#,TAWH15¥180202306

77656BCUSHION, FUEL TANK, NO.6

main77656-33010iAAWH1#,TAWH15¥250202306

77681SEAT, FUEL TANK BAND, RH

main77681-47020iAAWH1#,TAWH15¥620202306

77745FILTER, CHARCOAL CANISTER, NO.1

main77745-12050iAAWH1#,TAWH15..ARL,EUR,GEN,PHL,RUS,TWN¥1,090202306

77785HARNESS, FUEL PUMP

main77785-42070iAAWH1#,TAWH15¥870202306

8401

9011908D17

main90119-08D17¥100

9011910992

main90119-10992¥190

9011910A05

main90119-10A05¥120

9030108019

main90301-08019¥200

9046623006

main90466-23006¥220

91626B0614

main91626-B0614¥60

51 parts on this diagram · 8 diagrams in section
