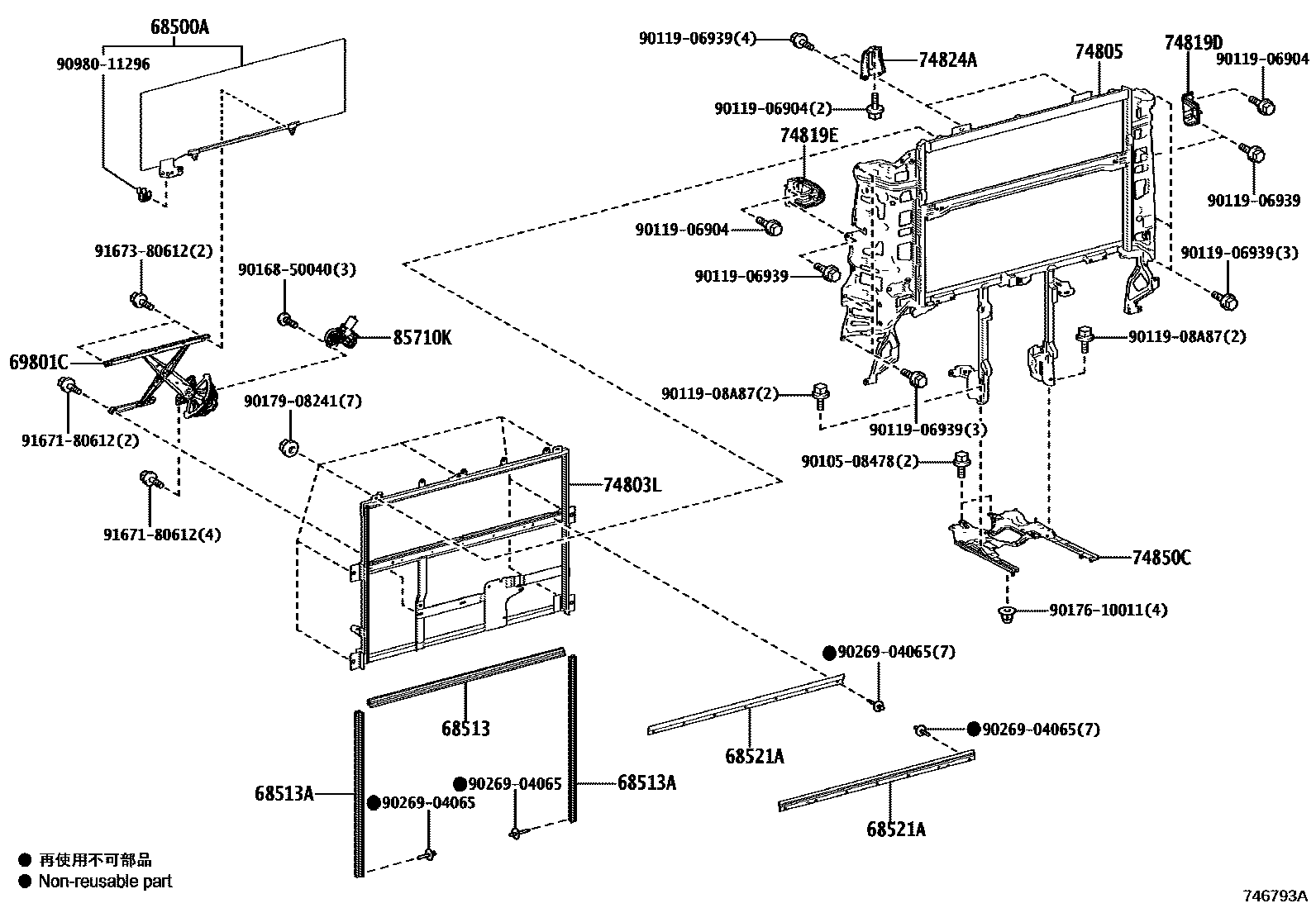

SEPARATOR & SEPARATOR CURTAIN

0001 1FRAME & GLASS 0002 1TRIM BOARD(FRONT) 0003 1TRIM BOARD(REAR)

68500AWINDOW ASSY, SEPARATION

main68500-V2010iAAWH1#,TAWH15..X¥257,000202306

68513RUN, SEPARATION WINDOW

main68513-58010iAAWH1#,TAWH15..X202306

68513ARUN, SEPARATION WINDOW, NO.2

main68513-V2010iAAWH1#,TAWH15..X¥750202306

68521AWEATHERSTRIP, SEPARATION DOOR WINDOW

main68521-V2010iAAWH1#,TAWH15..X¥2,480202306

69801CREGULATOR SUB-ASSY, SEPARATOR WINDOW

main69801-52140iAAWH1#,TAWH15..X¥3,940202306

74803LGUARD SUB-ASSY, SEPARATOR WINDOW

main74803-V2010iAAWH1#,TAWH15..X¥70,000202306

74805SEPARATOR SUB-ASSY

main74805-V2010iAAWH1#,TAWH15..X¥93,200202306

74819DBRACKET, SEPARATOR BOARD, RH

main74819-V2010iAAWH1#,TAWH15..X¥890202306

74819EBRACKET, SEPARATOR BOARD, LH

main74819-V2020iAAWH1#,TAWH15..X¥890202306

74824APLATE, SEPARATOR BOARD

main74824-V2020iAAWH1#,TAWH15..X¥780202306

74850CBAR ASSY, SEPARATOR

main74850-V2010iAAWH1#,TAWH15..X¥23,000202306

85710KMOTOR ASSY, POWER WINDOW REGULATOR

main85710-58070iAAWH1#,TAWH15..X202306

9010508478

main90105-08478¥80

9011906904

main90119-06904¥80

9011906939

main90119-06939¥60

9011908A87

main90119-08A87¥100

9016850040

main90168-50040¥70

9017610011

main90176-10011¥70

9017908241

main90179-08241¥80

9026904065

main90269-04065¥60

9098011296

main90980-11296¥220

9167180612

main91671-80612¥60

9167380612

main91673-80612¥60

23 parts on this diagram · 3 diagrams in section
